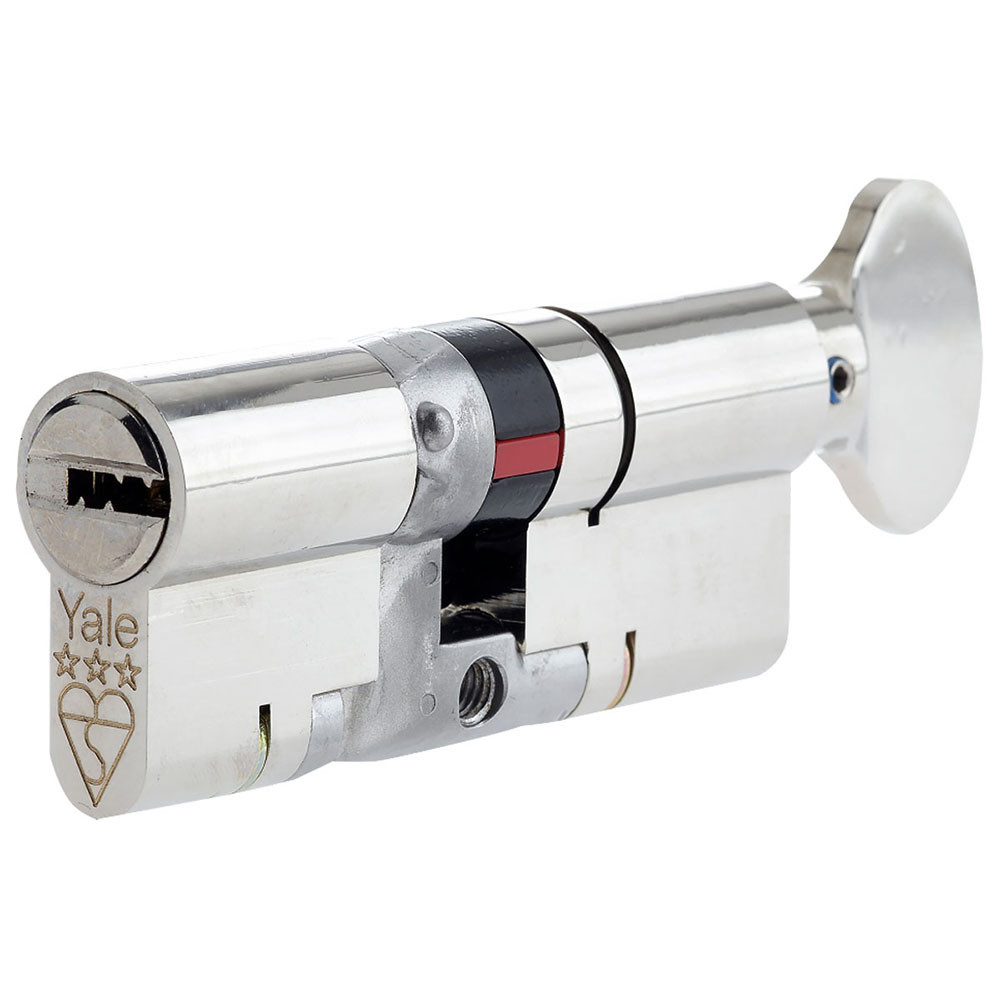

Yale Platinum 3 Star High Security Euro Cylinder Thumb Turn Lock

The Yale Platinum thumb turn 3 Star euro cylinder is designed to provide the maximum security available for the ULTIMATE door security upgrade. With its sacrificial front section, hardened grip detectors and interlocking cam the Yale Platinum is one of the most secure euro cylinders locks available earning a TS007:2014 3 star certification. These features ensure Anti-Snap, Anti-Bump, Anti-Pick, Anti-Screw and Anti-Drill protection.

Visually, the Platinum 3 Star Cylinder deters intruders with its clearly identified 3 Star Kitemark logo on the face of the cylinder. It has a flat, horizontal key way with reversible key.

The dimple cut key code can be easily identified on the supplied ID tag.

This high security cylinder is a thumb turn. This means you can unlock the door from the inside without the key.

Information

• Anti-snap - Break point allows interior key to work even if external snap damage occurs

• Anti-bump - features 'V pins' on both ends to resist bumping

• Anti-pick - four special anti pick pins on each end resist picking

• Anti-drill - protected against drilling by anti drill pins and balls on both ends

• Anti-snap - the cylinder is fixed into the lock through a steel tubular bar

• Superior Strength - Advanced pin tumbler technology with superior physical strength

• Secure-By-Design approved TS007:2014 British Standard Rating 3*

• 3x High Security keys supplied with key card per single cylinder

• Suitable for use with a wide range of doors including timber, composite, UPVC, aluminium or patio doors with a Euro profile

• 10 Year Guarantee

How to measure your lock

• Remove the fixing screw which is located on the main door gear just beneath the latch.

• Put the key in the lock and turn it 25 degrees clockwise or anti-clockwise.

• The lock should now slide out towards you.

• First measure the internal side of the cylinder from the centre of the screw hole to the outside edge. This is size A.

• Now measure the external side of the cylinder from the centre screw hole to the outside edge. This is size B.

• Now to measure size C, measure the entire length of the lock. This should be equal to A and B added together.

• For more help with measuring your lock, please refer to the diagram in the pictures. Alternatively, you can contact us for more help.
