The highly accredited Iron Guard cylinder has successfully achieved the TS007 Kitemark standard to 3 stars, Sold Secure Diamond award and is Secured by Design certified.

All aspects of this cylinder have been designed with high security in mind. A patented firing pin mechanism engages if the cylinder is snapped, the cam will lock itself down, preventing unauthorised access by rotating the cam. Additional security is also provided with the Trap Pin, if the cylinder is attempted to be picked or bumped, the trap pin will be fired into the plug chamber and lock the plug, preventing access.

The cylinders are non-handed thanks to the anti-snap feature  positioned on both sides, helping to reduce stock holding. In addition, all of the expected anti-bump, pick and drill security elements provide the ultimate in cylinder protection. A horizontal keyway for the secure dimple cut key provides visual security to ward off intruders, alongside the Kitemark visible on the face of the cylinder.

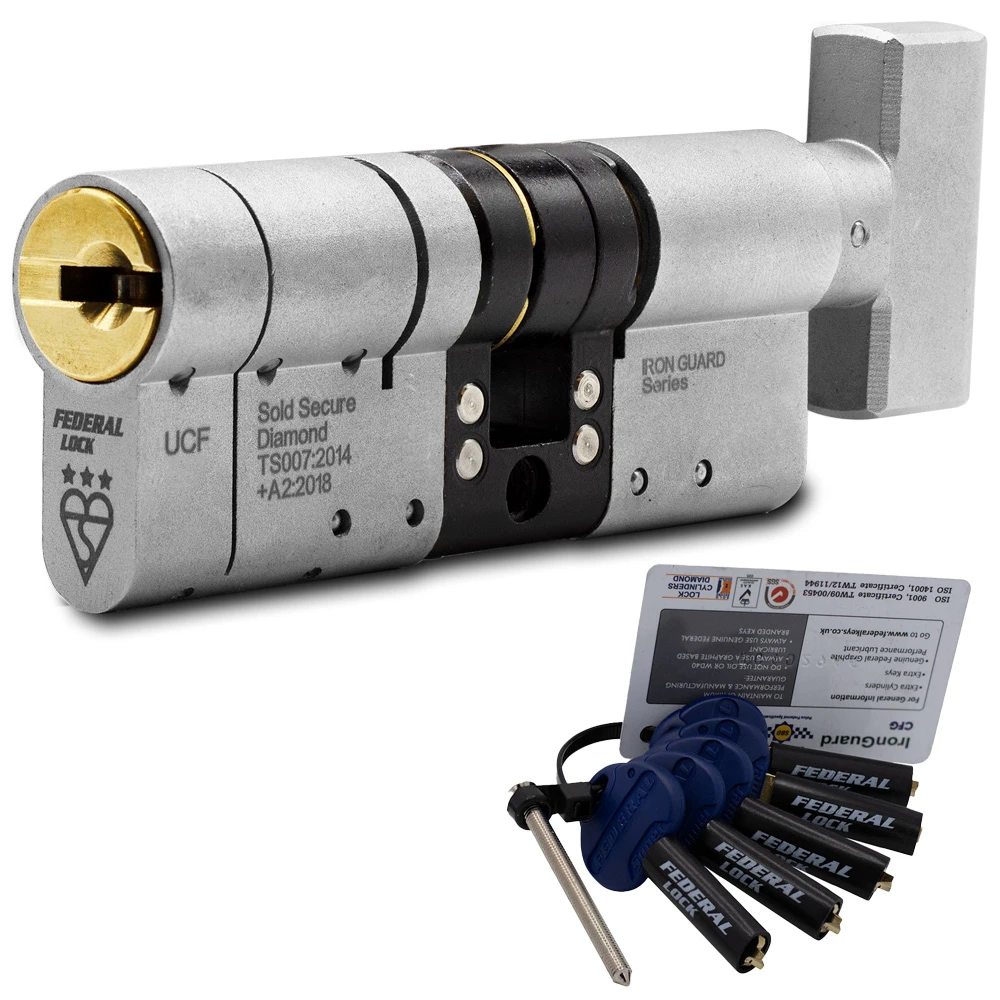

Federal Iron Guard Thumb Turn Information

• 10 year mechanical guarantee
• Thumb Turn

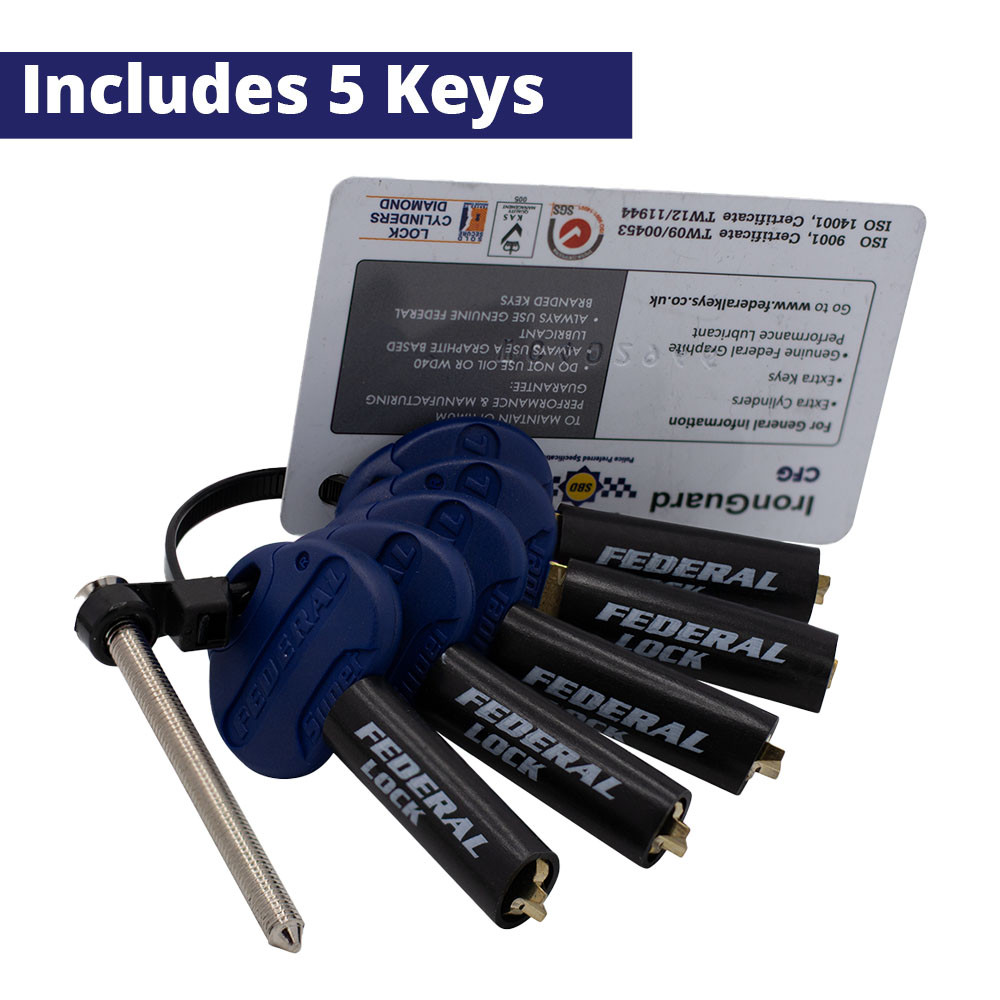

• Comes with 5 dimple keys and cut to code key card
• Dual Finish - Nickel outer body with brass barrel
• Snap secure on both sides to reduce stock
• Non-handed
• Patented firing pin mechanism

Federal Iron Guard Accreditation

• TS007 3 Star
• Sold Secure Diamond
• Police Preferred - Secured By Design
• BSI Kitemark KM598324
• Tested to BS EN 1303:2015
• PAS 24

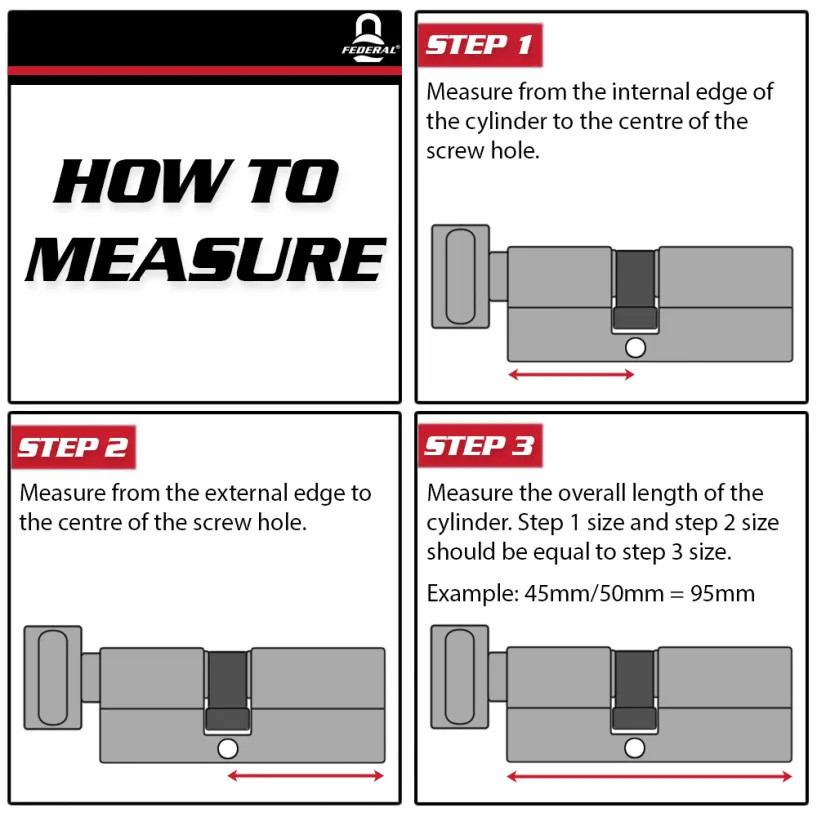

Measuring Guide

Please refer to the image gallery for a full measuring guide for this product.

Product Documents

Data Sheet
