Patio Door Handles

Patio Door Handles

We stock a wide range of patio door handles suitable for both upvc and aluminium doors. You can find patio door handles from  some of the biggest brand such as Trojan, Fullex, Hoppe and Schlegal. We stock locking, non-locking and dummy patio door handles in PZ sizes such as 90PZ and 92PZ.

Are Patio Door Handles Universal?

Patio door handles are not universal and will require you to check some key measurements to ensure a replacement sliding patio door handle will fit correctly. Measuring a sliding patio door handle is done the same way as any other uPVC door handle.

Are Patio Door Handles a Standard Size?

As mentioned above, patio door handles are not a standard size and require two critical measurements to ensure it is compatible. Let’s go through the steps on how to measure your patio door handle in the next section.

How to Measure for a New Patio Door Handle?

Now let’s move on to measuring your sliding patio door handle. When measuring a door handle you only need to check two measurements. These measurements are as follows.

  1. Backplate Fixing Centres – The centre to centre of the screw fixing screws.
  2. PZ Centres – The centre of the square spindle hole to the centre of the circular part of the key hole.

We also wrote an article about measuring uPVC door handles which you can find here: https://gbdiystore.com/articles/how-to-identify-and-measure-your-upvc-door-handle/

How Do You Fix a Loose Patio Door Handle?

You can fix a loose door handle very easily. Most of the time you will find it’s only the screws which have come loose and need tightening up. Simply take a Philips screwdriver and tighten the two screws on the inside handle. If your problem still persists this may be because the threads are damaged and may require a replacement patio door handle.

How Do You Replace a Patio Door Handle?

Replacing a patio door handle is as simple as removing two screws. With the measuring complete which we covered above. You can now just remove the two screws from the inside handle and the door handle should just come away from the door.

Assuming you have already ordered your new patio door handle, you can just slide the new handle back on to the door and secure it with the fixing screws provided.

In closing I hope this answers all your questions about patio door handles. Here at GB DIY Store we supply a good range of patio door handles which you can view here: https://gbdiystore.com/door-furniture/patio-door-handles

If you have any more question that we didn’t answer in the article please feel free to contact us. https://gbdiystore.com/contact-us/



  • Fullex Sliding Patio Door Handle 180mm Fixing Centres White

    Fullex Sliding Patio Door Handle 180mm Fixing Centres White

    Fullex

    Our Price £47.99
    Genuine Fullex Sliding Patio Door Handle 180mm Screw Centres This is a replacement Fullex patio door handle. It is a locking handle and features a euro cylinder cut out. The handle is non-handed and can be used on both right or left handed doors...
    Our Price £47.99
  • fullex sliding patio door handle 170mm

    Fullex Sliding Patio Door Handle 170mm Fixing Centres

    Fullex

    Our Price £47.99
    Genuine Fullex Sliding Patio Door Handle 170mm Screw Centres This is a replacement Fullex patio door handle. It is a locking handle and features a euro cylinder cut out. The handle is non-handed and can be used on both right or left handed doors...
    Our Price £47.99
  • fullex sliding patio door handle 155mm thumbnail

    Fullex Sliding Patio Door Handle 155mm Fixing Centres

    Fullex

    Our Price £47.99
    Genuine Fullex Sliding Patio Door Handle 155mm Screw Centres This is a replacement Fullex patio door handle. This handle is a dummy handle so does not have a euro hole cut out for a door lock. Information Available in white, silver and...
    Our Price £47.99
  • Schlegel Sliding Patio Door Handle 133mm 43mm PZ

    Schlegel Sliding Patio Door Handle 133mm 43mm PZ

    Schlegel

    Our Price £25.89
    Schlegel Metal Inline Patio Door Handles 133mm Fixing Centres 43mm PZ These handles are designed to replace the old type Schlegel patio door handles which were used in the double glazing industry on both UPVC and aluminium sliding patio doors. They...
    Our Price £25.89
  • trojan sliding patio door handle dummy

    Trojan Sliding Patio Door Handle Dummy 154mm

    Trojan

    Our Price £18.19
    Trojan Sparta Sliding Patio Door Handle Dummy Blank Set This sliding patio door handle set is manufactured by Trojan, an industry leader in window and door hardware. These dummy patio door handles can be used for both left and right handed doors because...
    Our Price £18.19
  • Pair of Door Handle Spindle Sleeves

    Pair of Door Handle Spindle Sleeves - Convert Door Spindle From 7mm to 8mm

    Hoppe

    Our Price £2.59
    Pair of Door Handle Spindle Sleeves These spindle sleeve are designed to convert a 7mm diameter spindle to an 8mm one. This is done so that your current door lock which uses a 7mm spindle can be used on more modern door handles which uses an 8mm...
    Our Price £2.59
  • Out of stock
    Schlegel Sliding Patio Door Handle Lever Set

    Schlegel Sliding Patio Door Handle Lever Set 7mm Spindle

    Schlegel

    Our Price £8.39
    Schlegel Sliding Patio Door Handle Lever Set Information 2 x Levers 1 x 7mm Square spindle
    Our Price £8.39
  • Hoppe Patio Door Handle

    Hoppe Tilt and Slide Internal Sliding Patio Door Handle

    Hoppe

    Our Price £71.79
    Hoppe Patio Door Handles The Hoppe locking tilt and slide patio door handle is the perfect replacement handle for uPVC Tilt & Slide Patio Doors. Hoppe are Europe's leading manufacturer of door and window handles and one of the UK's leading...
    Our Price £71.79
  • Out of stock
    Fuhr 90PZ Sliding Patio Door Handle Black 145mm

    Fuhr 90PZ Sliding Patio Door Handle Black 145mm

    Fuhr

    Our Price £27.79
    Fuhr 90PZ Sliding Patio Door Handle Black 145mm This sliding patio door handle set is designed to suit 90pz Fuhr patio locking mechanisms. These handles can be used for both left and right handed doors. 90PZ Fuhr Sliding Patio Door Handles D Shape...
    Our Price £27.79
  • Fuhr 90PZ Blank Sliding Patio Door Handle White 145mm

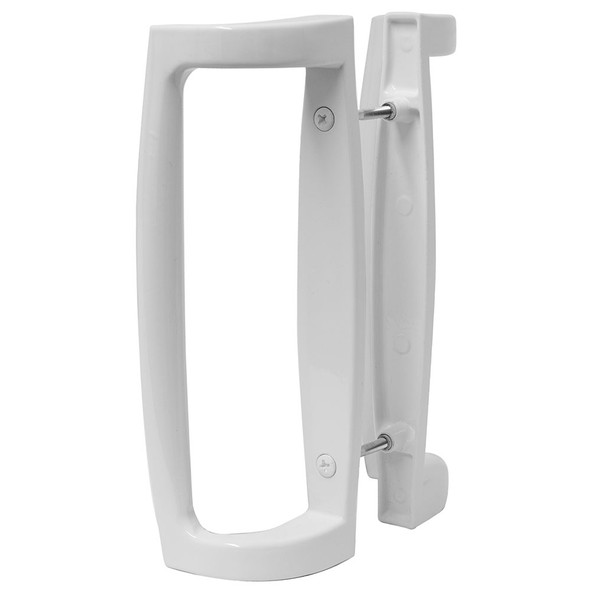

    Fuhr 90PZ Blank Sliding Patio Door Handle White 145mm

    Fuhr

    Our Price £35.59
    Fuhr 90PZ Blank Sliding Patio Door Handle White 145mm This sliding patio door handle set is designed to suit 90pz Fuhr patio locking mechanisms. These handles can be used for both left and right handed doors. Fuhr Sliding Patio D Shape Blank Dummy...
    Our Price £35.59
  • Fuhr 90PZ Sliding Patio Door Handle

    Fuhr 90PZ Sliding Patio Door Handle White 145mm

    Fuhr

    Retail Price £42.99
    Our Price £35.59
    90PZ Fuhr Sliding Patio Door Handles D Shape This sliding patio door handle set is designed to suit 90pz Fuhr patio locking mechanisms. These handles can be used for both left and right handed doors. Fuhr 90PZ Sliding Patio Door Handle White 145mm...
    Retail Price £42.99
    Our Price £35.59
  • Trojan Sparta 92PZ Sliding Patio Door Handle 154mm White

    Trojan Sparta 92PZ Sliding Patio Door Handle 154mm

    Trojan

    Our Price £19.39
    92PZ Sliding Patio Door Handles Inline Locking Set This sliding patio door handle set is manufactured by Trojan, an industry leader in window and door hardware. These handles can be used for both left and right handed doors because the handle can be...
    Our Price £19.39
