Description
The RW Simon Vent-A-Matic circular window vent is a non-electric window ventilator designed for kitchens, bathrooms, bedrooms with an average size room of 9000mm2. The RW Simon Vent-A-Matic Model 106 DGS is sized to fit holes measuring 162mm (6.5 inch) in sealed double glazed windows measuring 12-32mm thick.
The vent is equipped with diffusing rotor to prevent draught and improve fresh air distribution, helping to prevent condensation in most sized rooms and includes an integrated storm guard to help reduce drafts. The rotor is designed to operate under own inertia even when air pressure equalised.
View AllClose
The vent is equipped with diffusing rotor to prevent draught and improve fresh air distribution, helping to prevent condensation in most sized rooms and includes an integrated storm guard to help reduce drafts. The rotor is designed to operate under own inertia even when air pressure equalised.
Information
- Model 106 DGS to suit 162mm diameter hole
- Model 106 DGS fits sealed double glazed units 12-32mm thick
- Includes integrated storm guard to help reduce drafts
- Designed for kitchens, bathrooms, bedrooms, average size rooms / 9000mm2
- Equipped with diffusing rotor to prevent draught and improve fresh air distribution
- Helps prevent condensation in most sized rooms
- Rotor operates under own inertia even when air pressure equalised

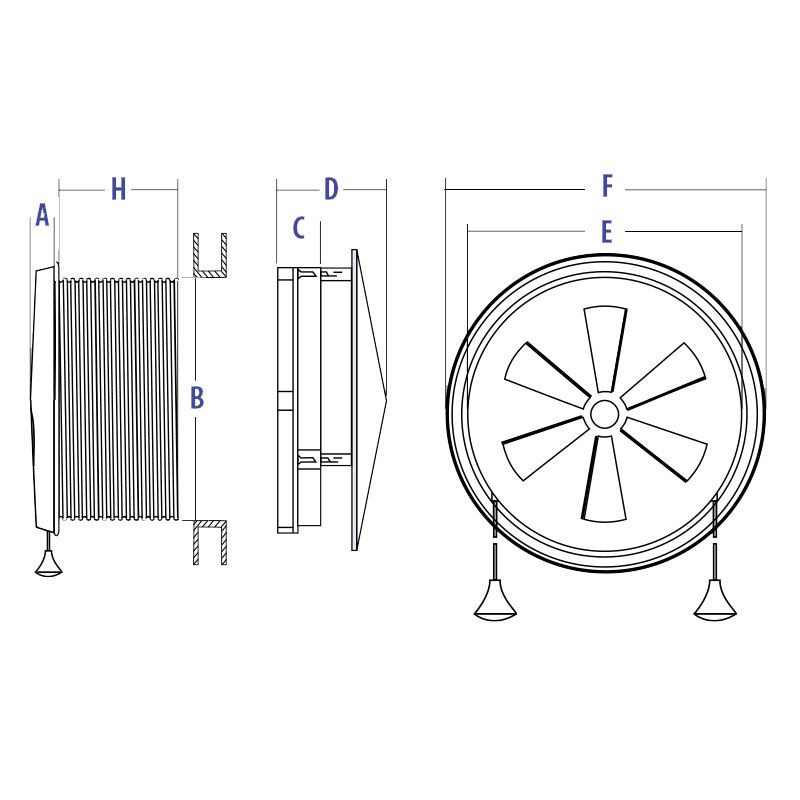

Dimensions (See image gallery)
| Model | Dim A |
Dim B |
Dim C |
Dim D |
Dim E |
Dim F |
Hole Dim |
Dim H |
|---|---|---|---|---|---|---|---|---|
| 106 DGS | 23mm | 159mm dia | 18mm | 65mm | 179mm dia | 203mm dia | 162mm dia | 50mm |
