RW Simon Vent-a-Matic Single Glazed Window Ventilator Model 106S Including Storm Guard

The RW Simon Vent-A-Matic circular window vent is a non-electric window ventilator designed for kitchens, bathrooms, bedrooms with an average size room of 9000mm2.  The RW Simon Vent-A-Matic Model 106 is sized to fit holes measuring 162mm (6.5 inch).

The vent is equipped with diffusing rotor to prevent draught and improve fresh air distribution, helping to prevent condensation in most sized rooms and includes an integrated storm guard to help reduce drafts.  The rotor is designed to operate under own inertia even when air pressure equalised.


Information

• Model 106 to suit 162mm diameter hole
• Model 106 fits single glazed windows
• Includes integrated storm guard to help reduce drafts
• Designed for kitchens, bathrooms, bedrooms, average size rooms / 9000mm2
• Equipped with diffusing rotor to prevent draught and improve fresh air distribution
• Helps prevent condensation in most sized rooms
• Rotor operates under own inertia even when air pressure equalised

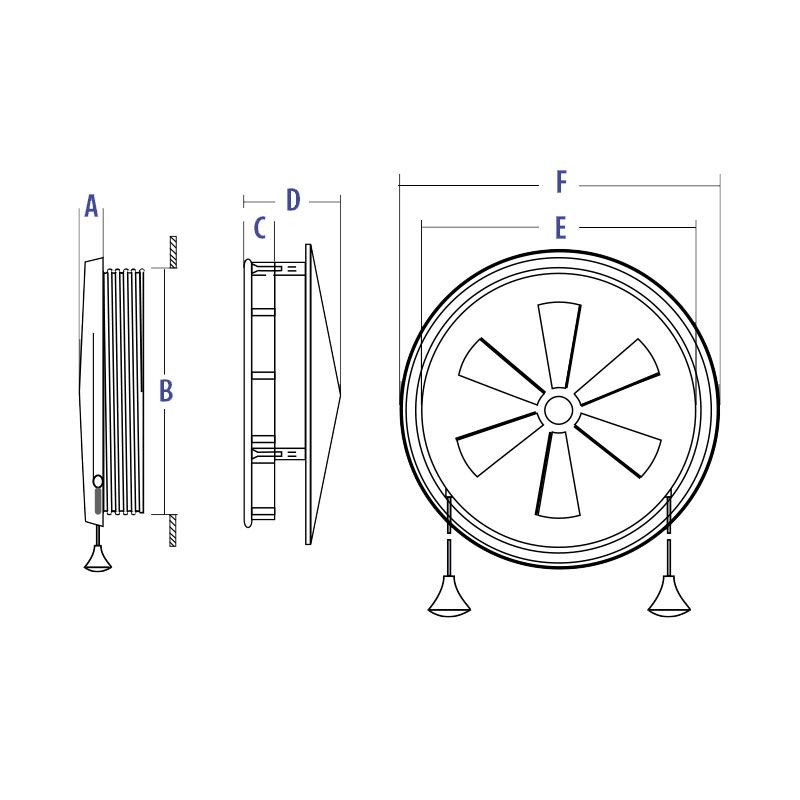

Dimensions (See image gallery)

Model	Dim A	Dim B	Dim C	Dim D	Dim E	Dim F	Hole Dim
106S	23mm	159mm dia	18mm	65mm	179mm dia	203mm dia	162mm dia
