Description

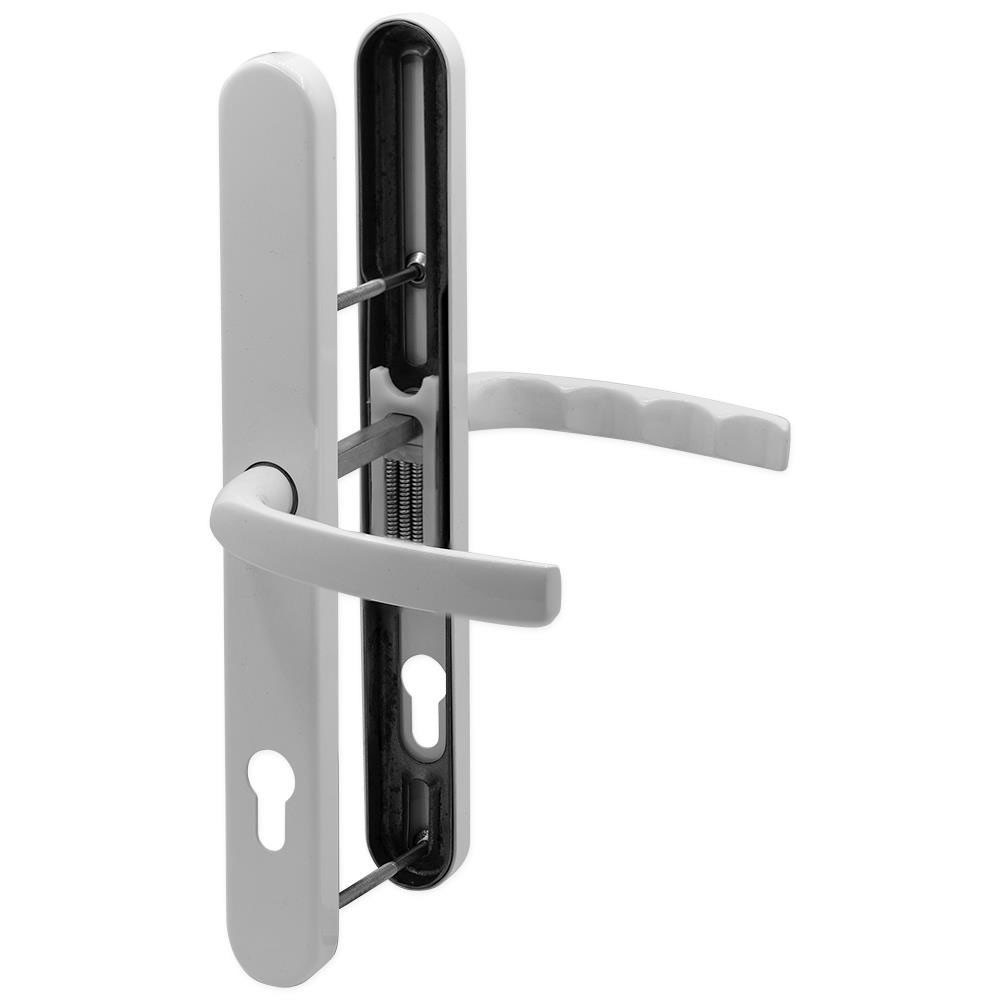

Universal uPVC Door Handle 92PZ

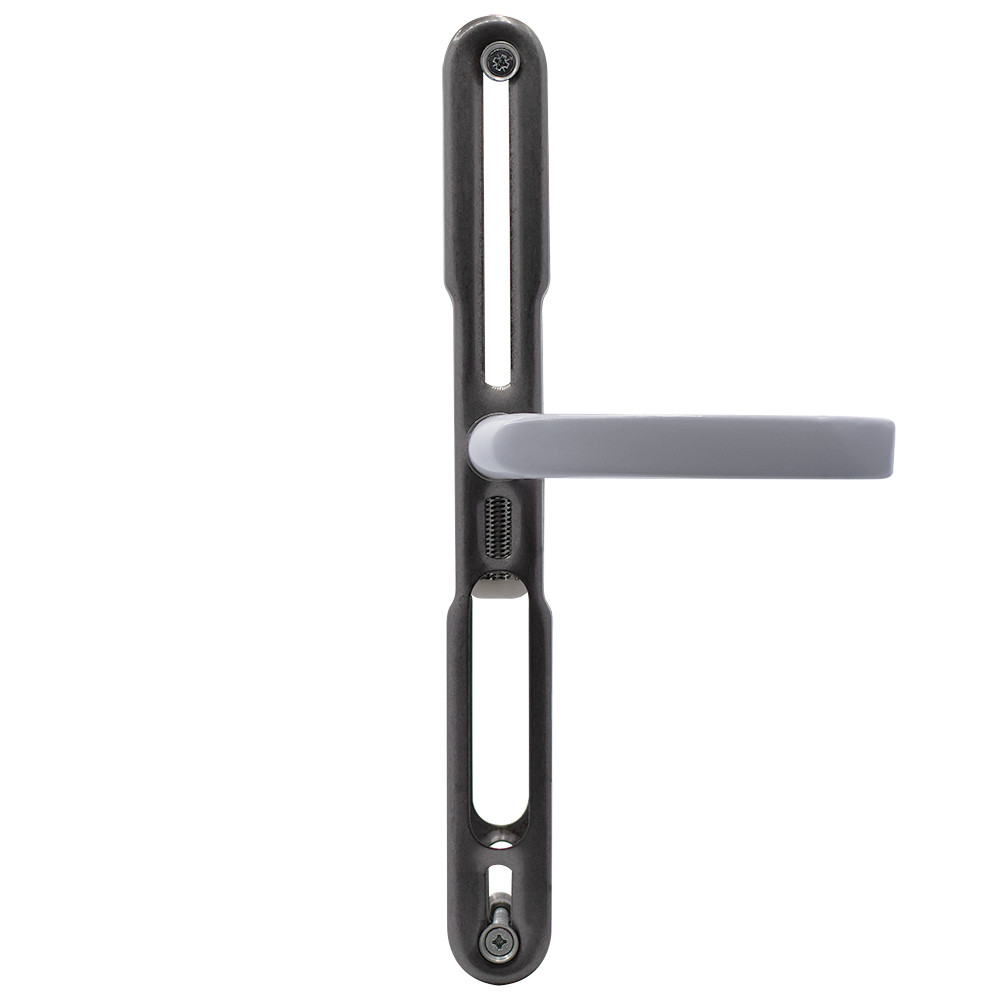

This door handle is designed to suit all 92PZ door handles. It has a unique fixing hole design where there are three elongated fixing slots on the handle backplate. This allows you to move the fixing screws to whichever position you need to suit your existing handle. Due to this, this handle can replace any 92PZ door handle without the need to drill additional holes.Once the door handle base has been fixed to the door using your existing screw positions you can then attach the included cover plate. Simply feed the handle lever through the lever hole on the cover plate and click the cover plate into position.
Information
- No need to drill holes
- Replaces all 92PZ door handles
- Easy and fast to install
- Includes fixings and spindle
- Sprung handle
Technical

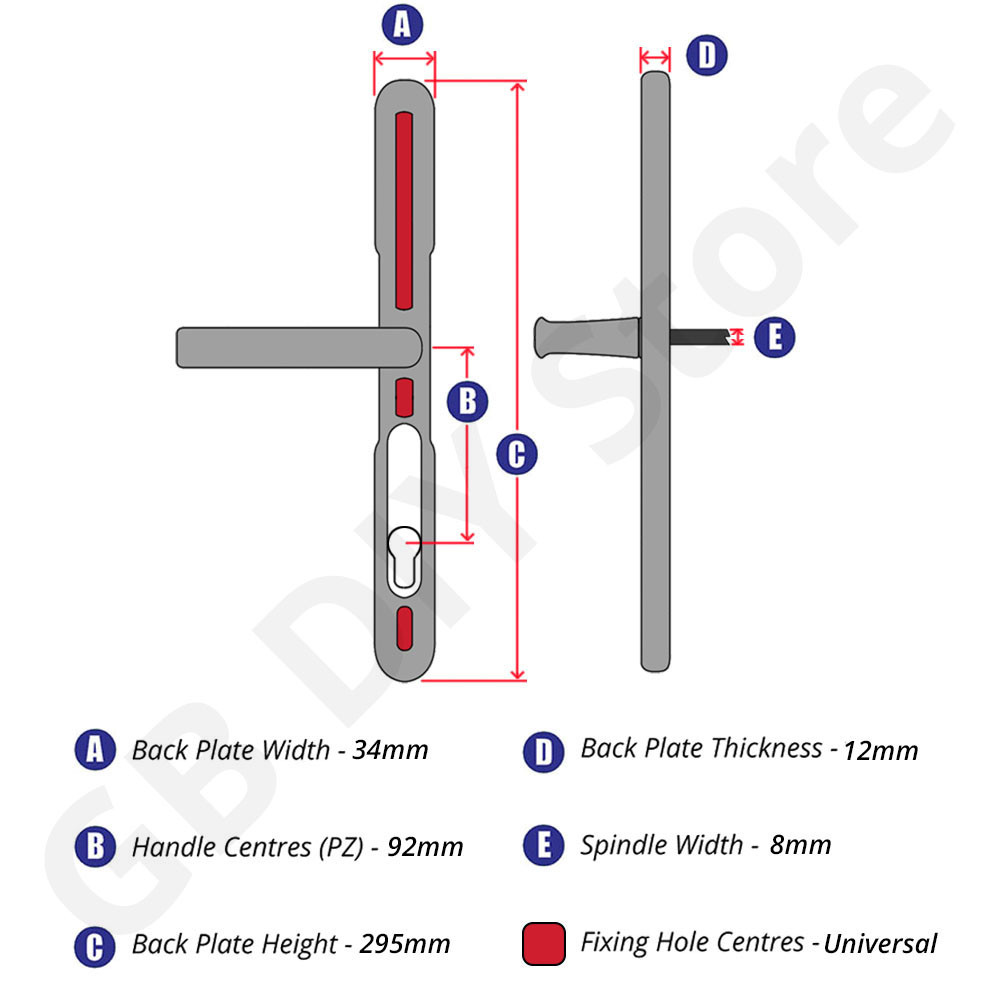

A full technical diagram is included in the image gallery.
Handle Measuring Guide
Measurement 1There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.
Measurement 2
The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram. On this door handle the screw positions are completely universal so you do not need to measure you existing handle. This door handle will fit any 92PZ door handle regardless of the fixing positions.
