Trojan Sparta 92PZ uPVC Door Handle

SKU:
TDH
UPC:
7426827255349
PZ Centres:
92mm
  • Trojan Sparta 92PZ uPVC Door Handle All Colours
  • Trojan Sparta 92PZ uPVC Door Handle White
  • Trojan Sparta 92PZ uPVC Door Handle Technical Details
  • Trojan Sparta 92PZ uPVC Door Handle Chrome
  • Trojan Sparta 92PZ uPVC Door Handle Technical Details
  • Trojan Sparta 92PZ uPVC Door Handle Satin Silver
  • Trojan Sparta 92PZ uPVC Door Handle Black
  • Trojan Sparta 92PZ uPVC Door Handle Black
  • Trojan Sparta 92PZ uPVC Door Handle Black
  • Trojan Sparta 92PZ uPVC Door Handle Satin Silver
  • Trojan Sparta 92PZ uPVC Door Handle White
  • Trojan Sparta 92PZ uPVC Door Handle Satin Silver
  • Trojan Sparta 92PZ uPVC Door Handle White
  • Trojan Sparta 92PZ uPVC Door Handle Gold Technical Details
  • Trojan Sparta 92PZ uPVC Door Handle Black Technical Details
  • Trojan Sparta 92PZ uPVC Door Handle Satin Silver Technical Details
  • Trojan Sparta 92PZ uPVC Door Handle Satin Silver Technical Details
  • Trojan Sparta 92PZ uPVC Door Handle Satin White Technical Details
Our Price £14.99
Frequently bought together:

Description

Trojan Sparta uPVC Door Handle

The Trojan Sparta door handle has been manufactured to an extremely high standard which offers outstanding product performance and value. This sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors.

The spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sagging. The Trojan Sparta door handle set is designed to replace handles with 92mm PZ measurements and a distance between screw hole fixings of 122mm or 210mm.

Trojan 92PZ uPVC Door Handle Information

  • 92mm PZ
  • Supplied complete with spindle and screws
  • Fully sprung with 2 x spring cassettes
  • Spindle size: 8mm
  • 122mm or 210mm screw hole centres
  • Fully universal to fit both left or right hung doors

Technical

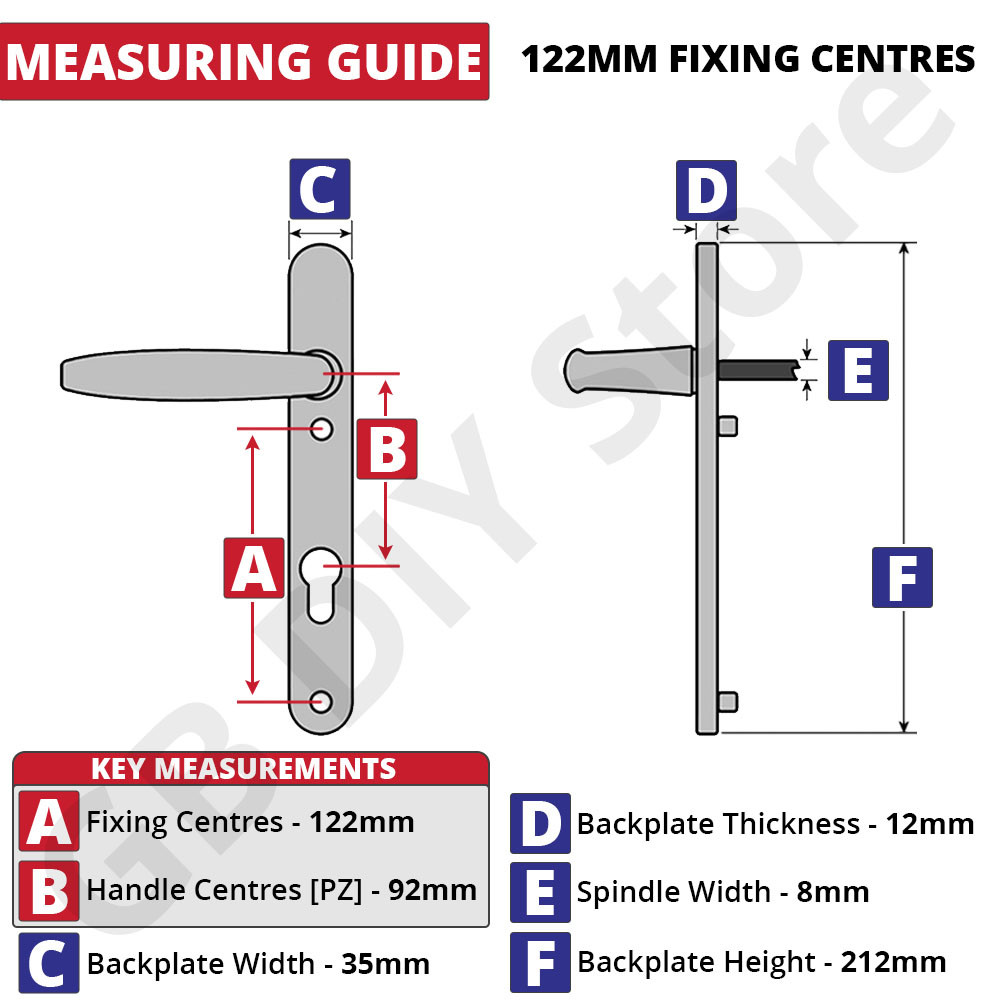

A full technical diagram is included in the image gallery.

Handle Measuring Guide

Measurement 1

There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.

Measurement 2

The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram.

If the above two measurements match up then the door handle will fit and operate perfectly. All other measurements on the door handle are mainly aesthetics and won't affect fitting or operation if they're different.
