Description

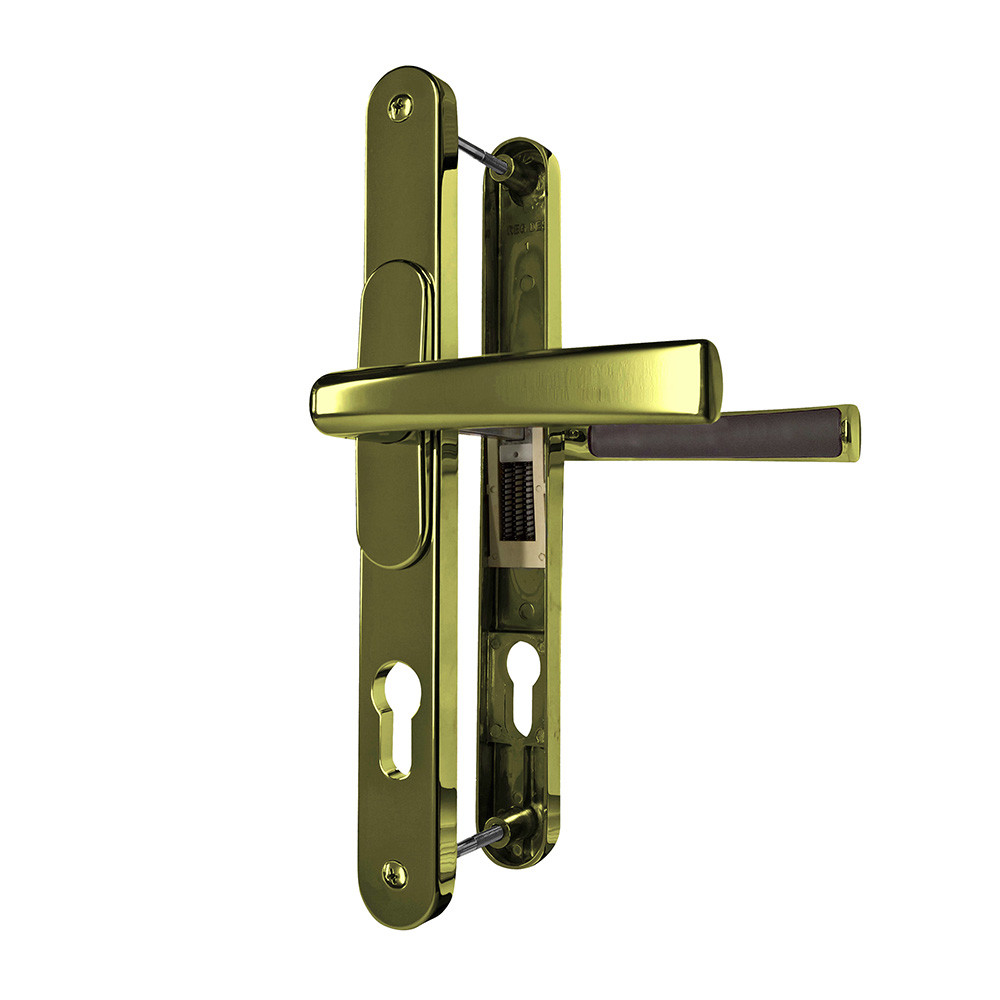

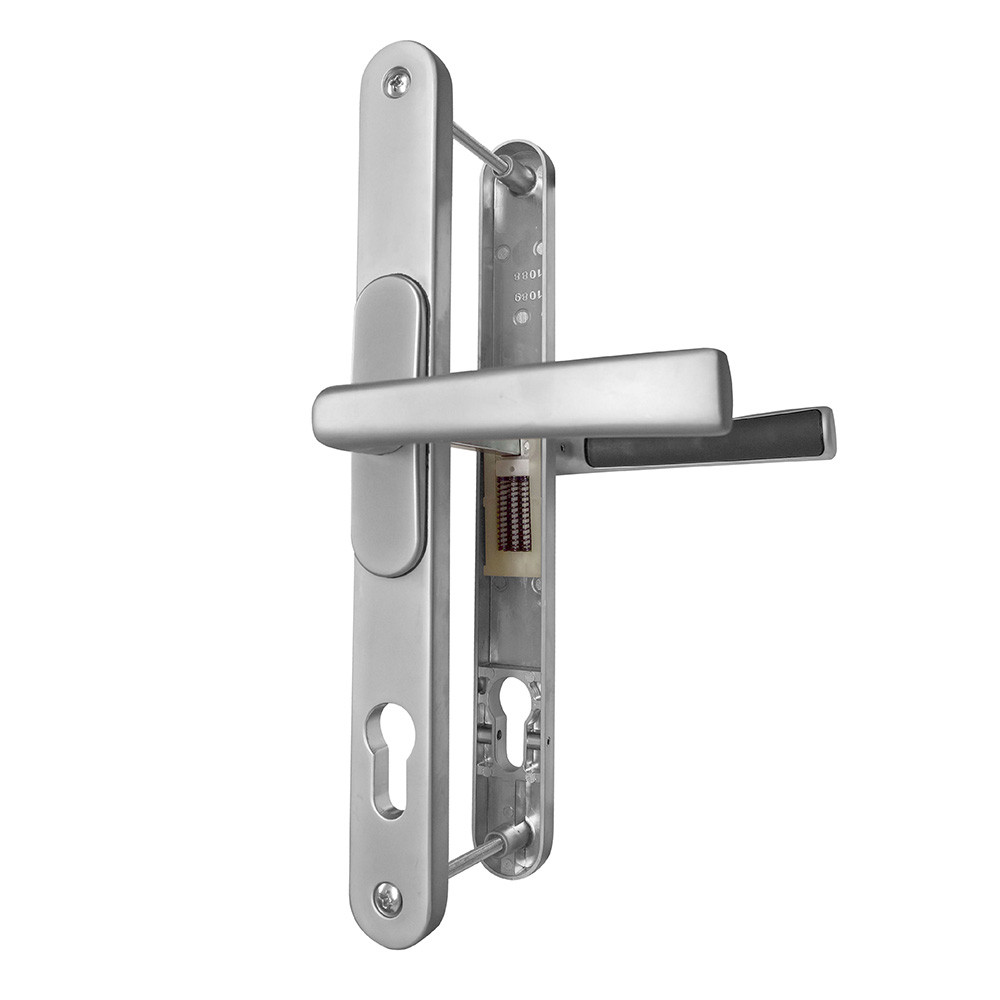

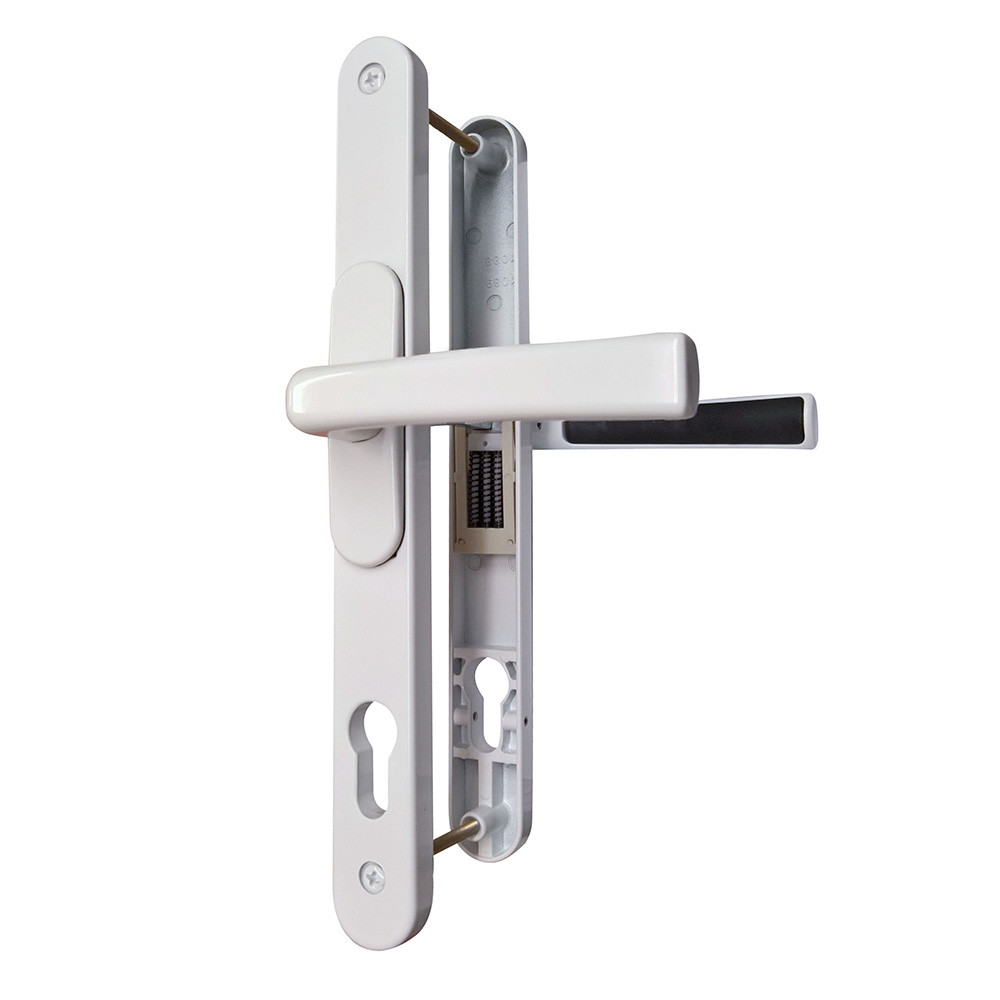

Universal uPVC Door Handle
This adjustable flexi uPVC door handle has been designed to replace a wide range of door handle sizes. It has an adjustable PZ meaning the handle will slide up and down to suit different door handle types.
The universal uPVC door handle is long enough to cover all existing screw holes.
Flexi Ultimate Adjustable Universal UPVC Door Handle Information
- Reversible handle fits both left and right handed doors
- Sprung levers to fix sagging door handles
- Universal PZ to suit all door handle sizes
- 260mm backplate fixing centres
- Includes spindle and fixing screws
Technical

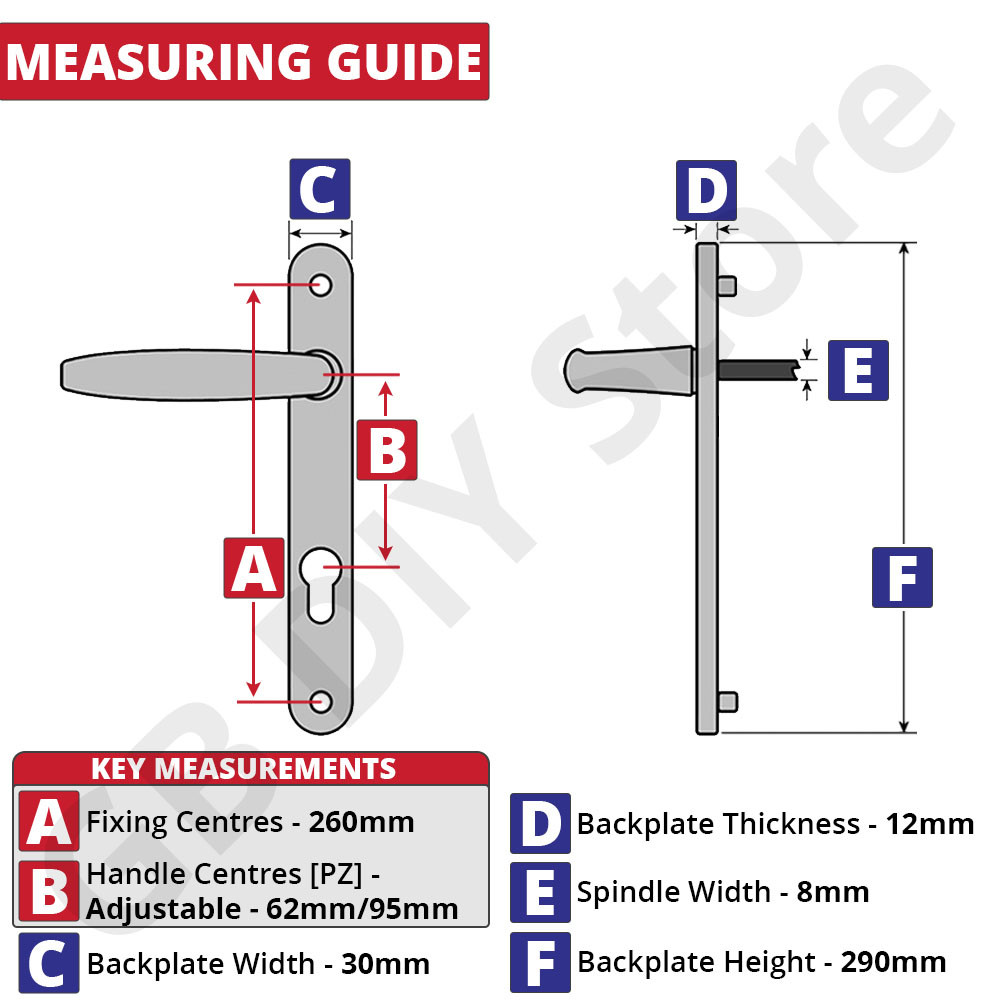

A full technical diagram is included in the image gallery.
Handle Measuring Guide
Measurement 1
There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.
Measurement 2
The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram.
If the above two measurements match up then the door handle will fit and operate perfectly. All other measurements on the door handle are mainly aesthetics and won't affect fitting or operation if they're different.
