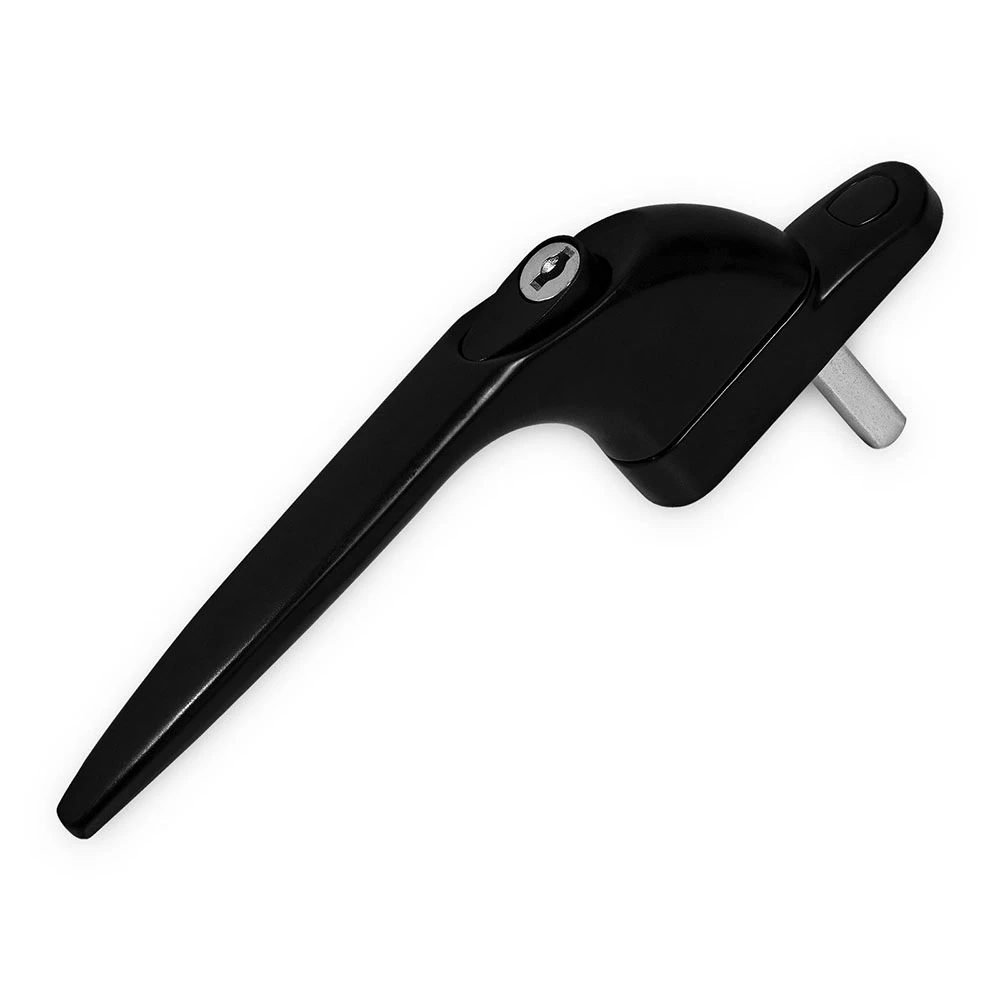

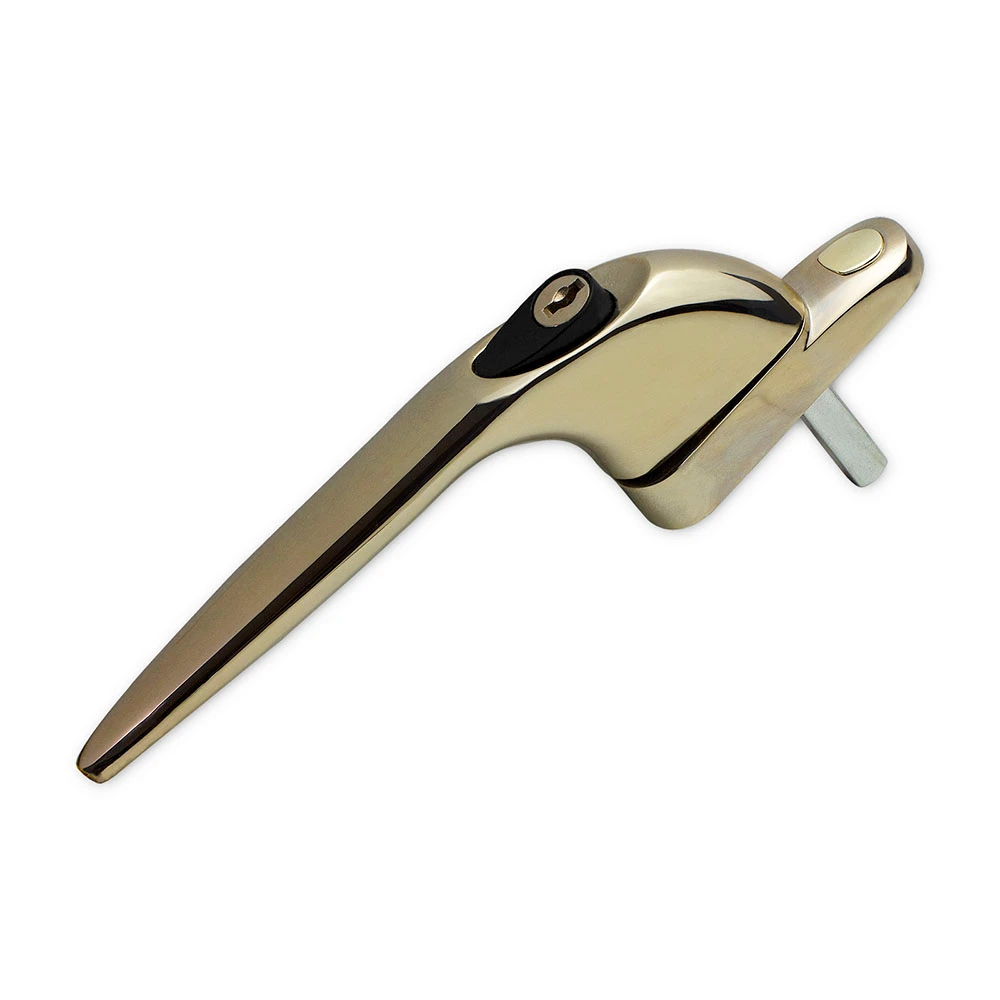

Yale Quartus Universal Inline Espag Window Handle

The Yale Quartus universal window handle is a elegant and stylish handle which boasts a high quality and ergonomic design. It is made by Yale, a leading manufacturer in window and door hardware. This handle is suitable for all window espag and shoot bolt mechanisms.

Yale Universal Inline Espag Window Handle Information

• Universal handle Fits both left and right hand openings

• Secure handle (can not be flicked open)

• 43mm screw hole centres

• Child safe handle, requires button press

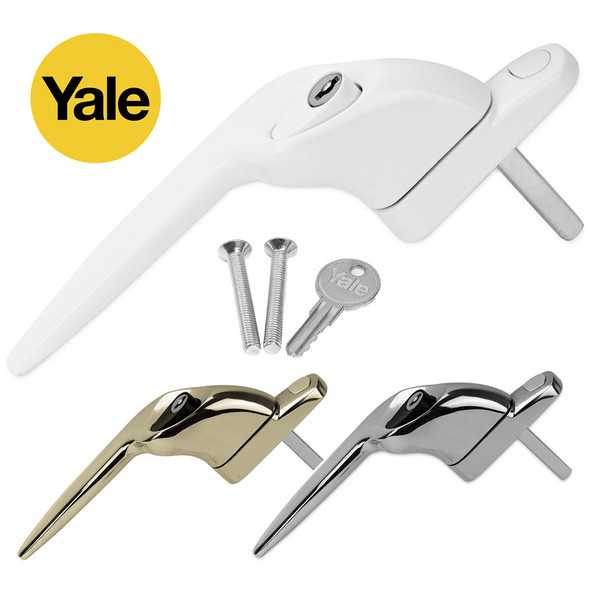

• Comes with 2 fixing screws per handle

• Comes with 1 key per handle

• Comes with 1 screw cover cap per handle

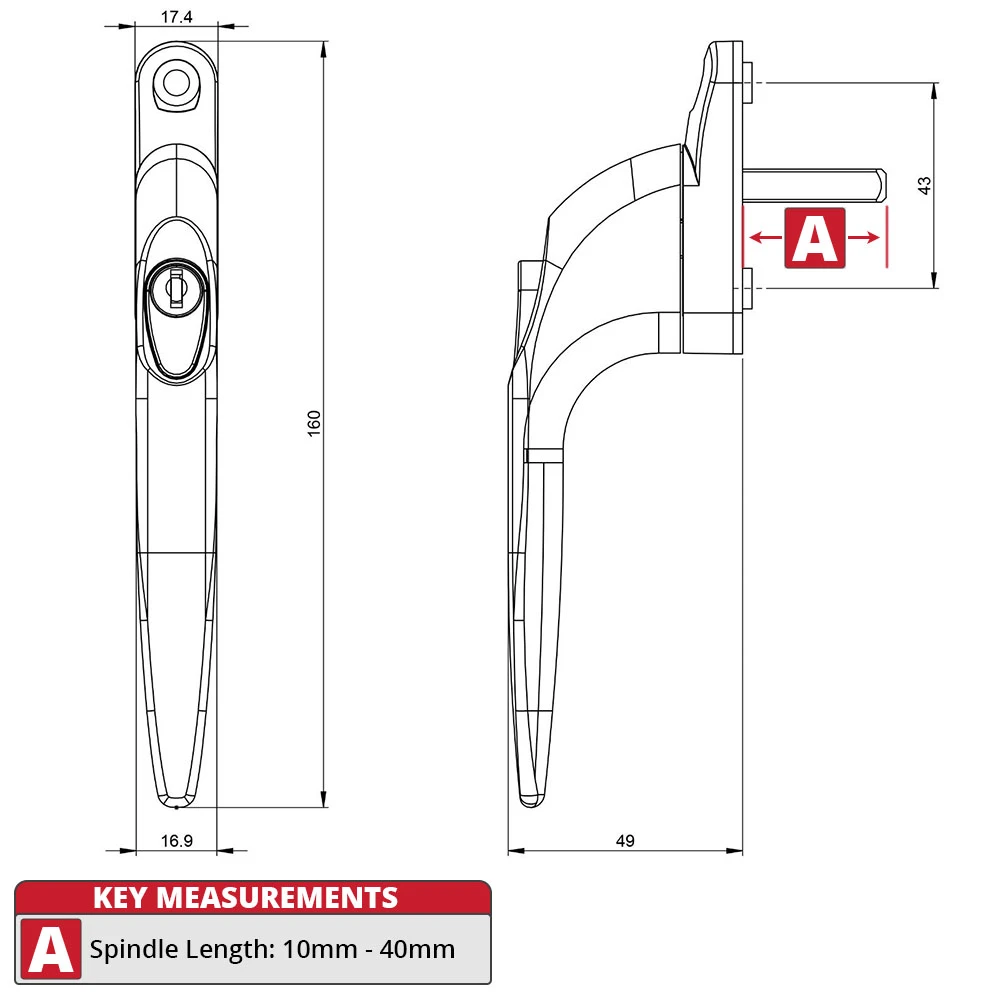

Dimensions

• Screw Hole Centres: 43mm

• Spindle Length: 10, 15, 20, 30 & 40mm

• Spindle Width: 7mm Square

Measuring your handle

Screw Hole Fixing Centres:

Most espag handles are made to industry standards with 43mm screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the inline type (Non-handed), therefore they will replace both left and right hand handles.

Spindle Length:

Remove the two screws fixing the handle to the window and measure from the base of the handle to the tip of the spindle.

Spindle width:

Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
