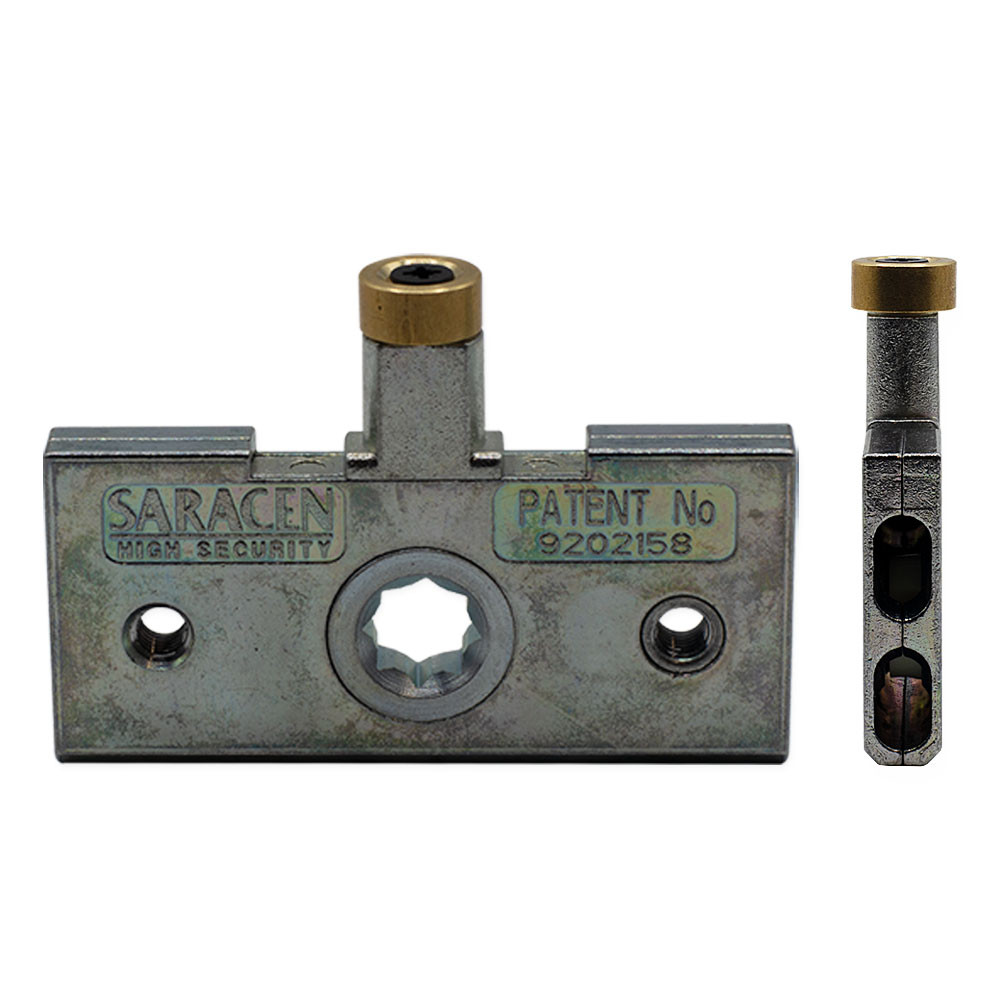

Saracen SC1 Roller Latch Window Gearbox Lock

A genuine replacement Saracen SC1 roller latch window gearbox manufactured by ERA. They operate with bi-directional threaded bolts to secure the window to the outer frame by locating into locking keeps. The gearbox is marked with patent 9202158 which can help with identification.

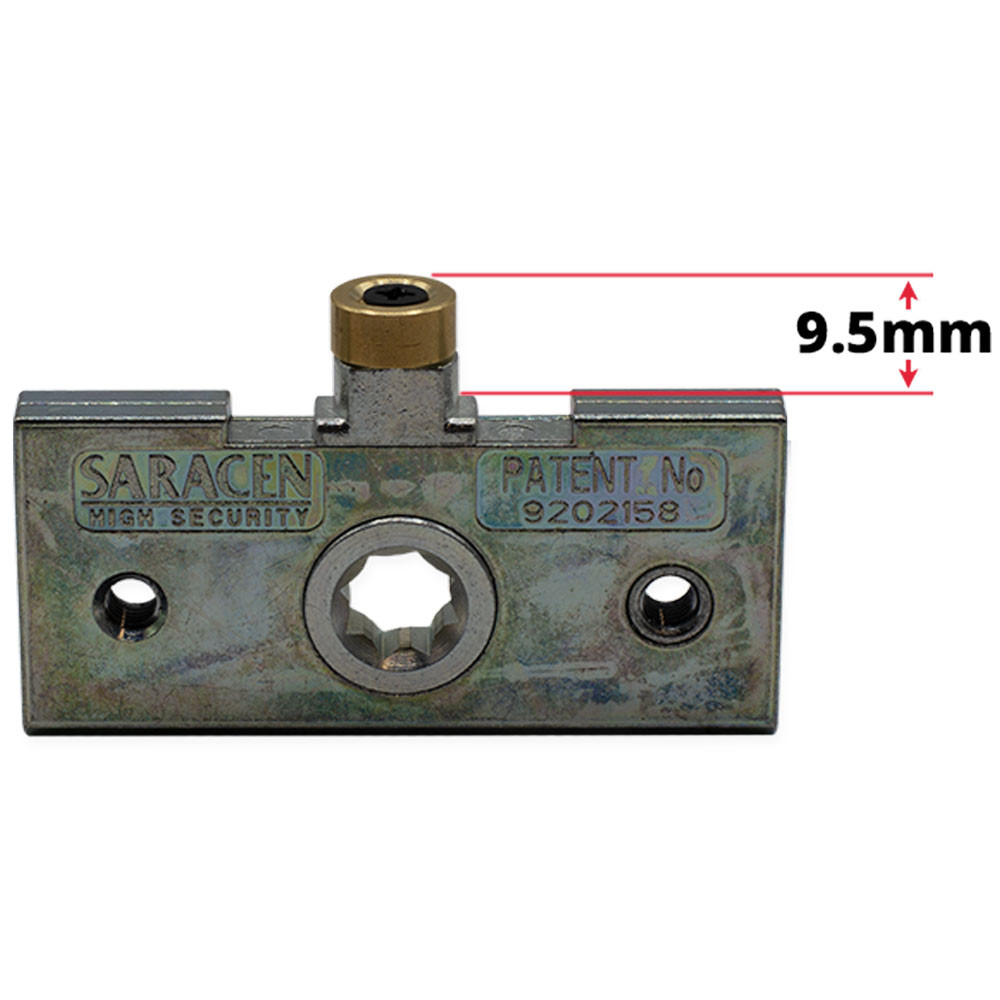

The Saracen SC1 roller latch gearbox is available with different roller latch heights. Please view the dimension diagram images for clarification and how to measure.

Information

• BS EN 1670:2007 Grade 3 corrosion resistant
• 43mm between screw holes (industry standard)
• Available roller latch sizes: 9.5mm or 11.5mm or 14.5mm
• Manufactured from zinc alloy
• Gearbox only
• Patent 9202158




Technical

A full technical diagram is included in the image gallery.
