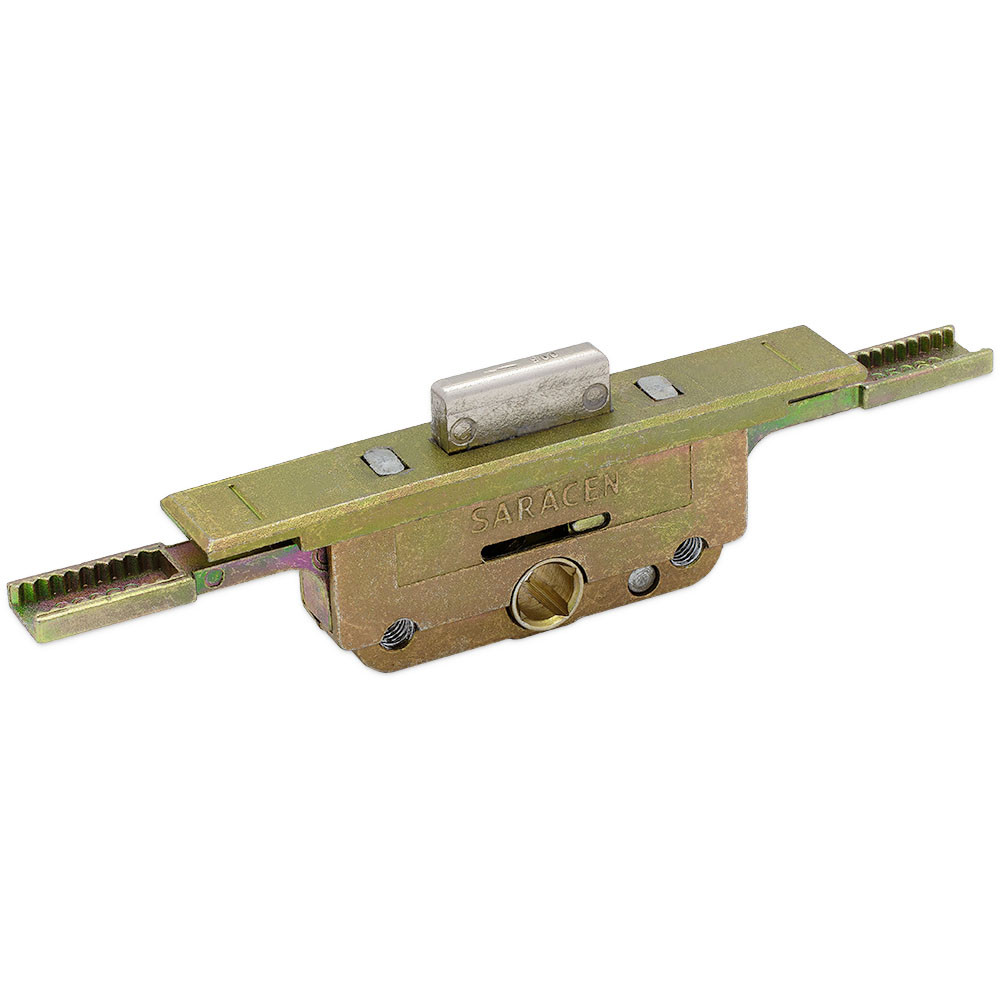

The Laird Saracen / Aubi FM face fit replacement gearbox provides a multi-point locking solution for uPVC windows. The gearbox works with bi-directional bolts to secure the window to the outer frame locating into profile keeps.

Information

• Available with 9.5mm or 11.5mm latch and 20mm or 22mm backsets
• Corrosion resistance: Meets the Requirements of BS EN 1670:2007 Grade 3
• Operation: Tested in excess of 30,000 cycles
• Standard measurements of 43mm centre to centre
• Meets the requirements of BS 7950
• Gearbox only

Technical

A full technical diagram is included in the image gallery.

How do I know which gearbox I need?

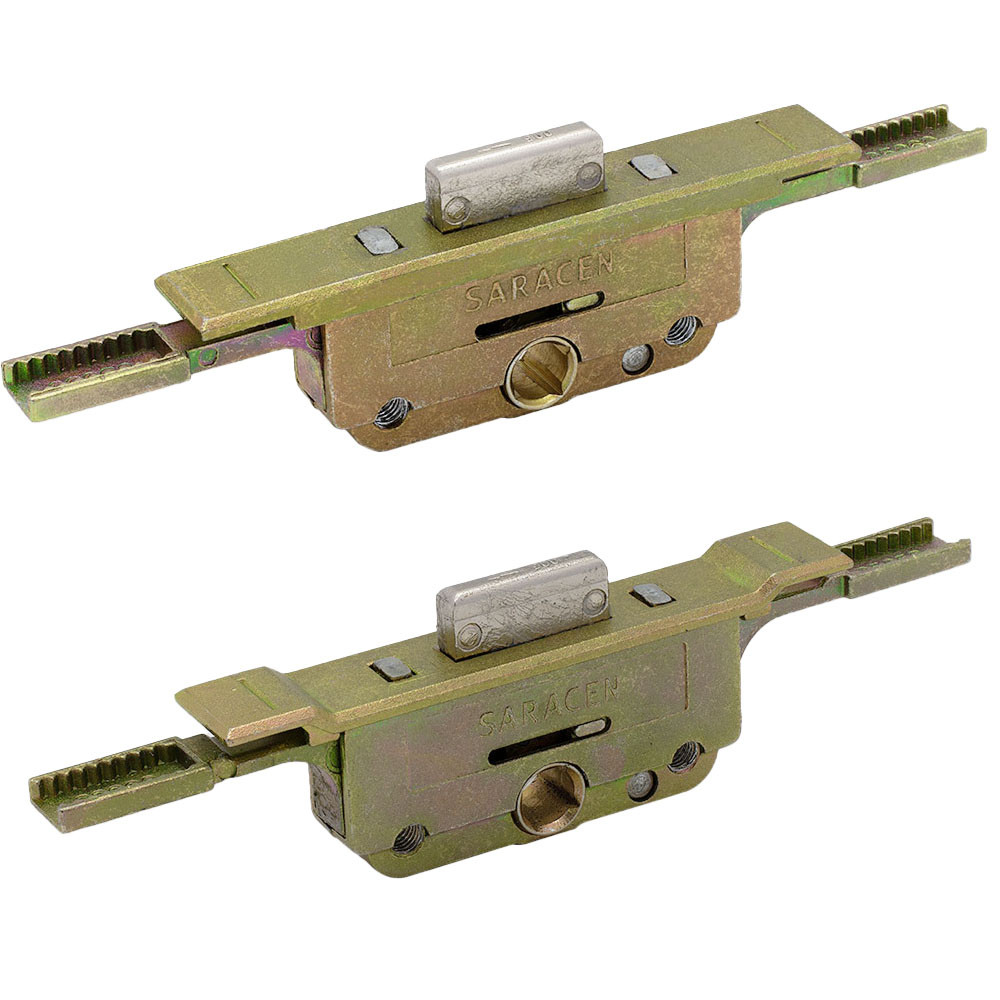

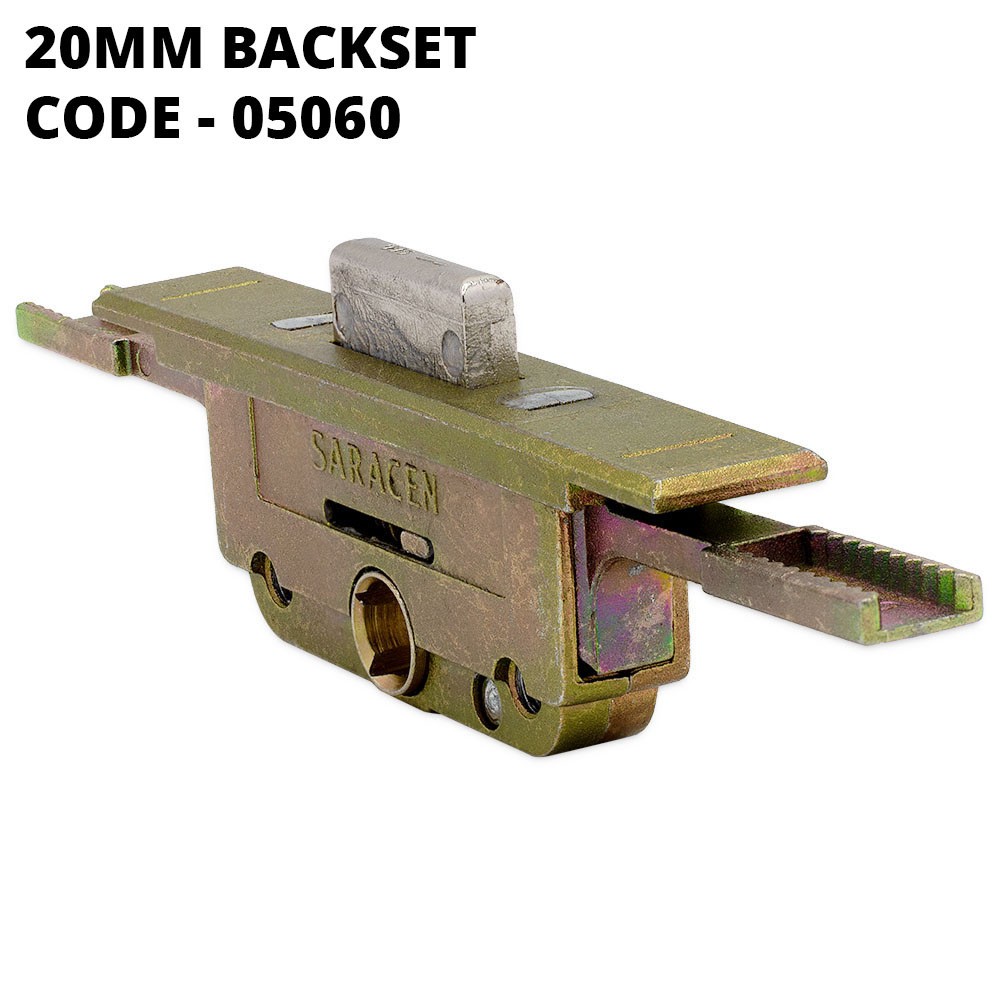

The Saracen/Aubi FM gearbox lock comes in two variations, Straight (20mm backset) or Cranked (22mm backset) faceplate. To determine the correct gearbox first remove the gearbox from your window then inspect the tooth connector plates located on either side of the gearbox, the cranked (22mm backset) faceplate will have the stamp code 05058, the straight (20mm backset) faceplate will be stamped 05060.

Next check the deadbolt throw size - The deadbolt throw is stamped on the square deadbolt face (i.e. 115 = 11.5mm & 095 = 9.5mm).
