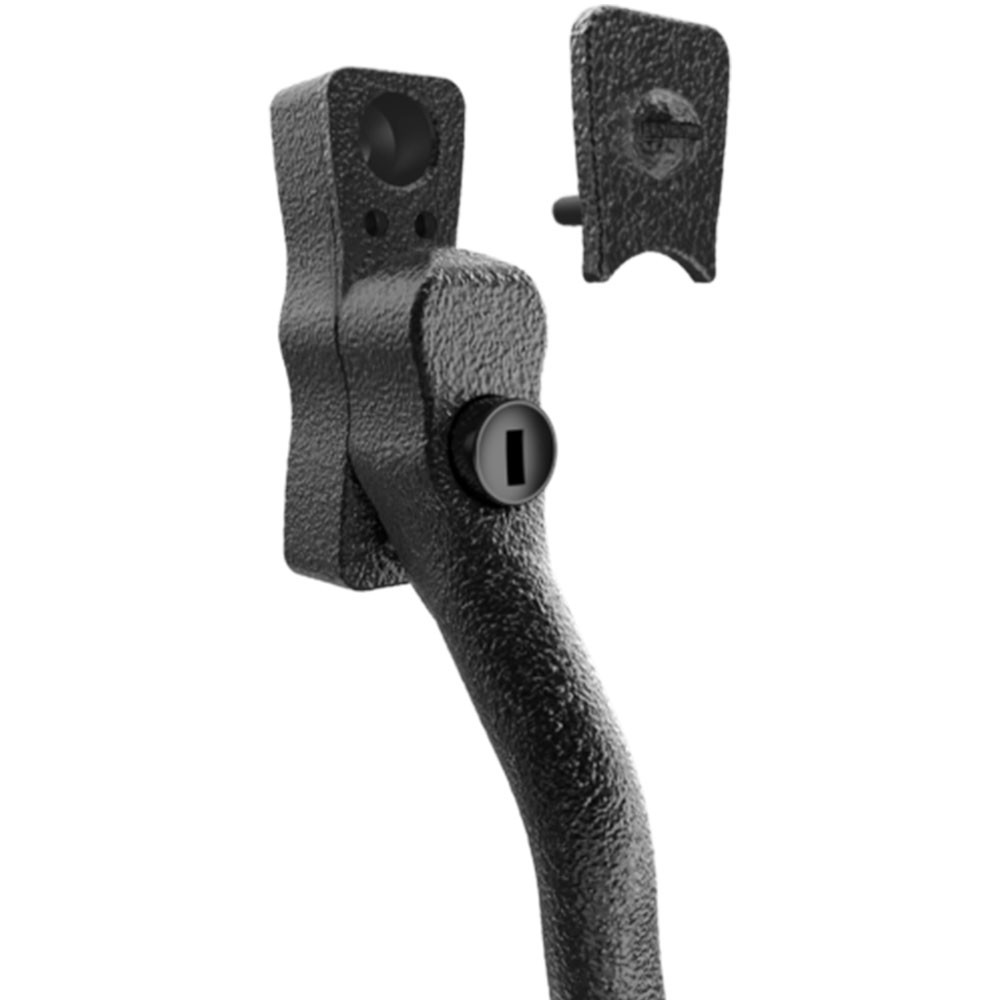

Mila Heritage Pear Drop uPVC Window Handle 40mm Spindle

The Mila Heritage epsag window handle is designed to be used on upvc, timber and flush sash windows which use an espagnolette locking mechanism. It is a premium quality handle and combines elegant styling with intelligent design and security features. The handle comes with a push to fit edge to edge screw cover cap with faux clocked screw for authentic styling. The beautifully designed rosette key gives this handle and your window that true heritage look. The handle has been independently tested to PAS24 for enhanced security, 50,000 cycles for operational reliability and Secured by Design approved

Information

• 40mm spindle length
• Pear drop design
• Premium build quality
• PAS24 security
• 10 year guarantee
• Includes edge to edge cover cap with faux clocked screw
• Includes colour matched fixing screws
• Includes rosette style key

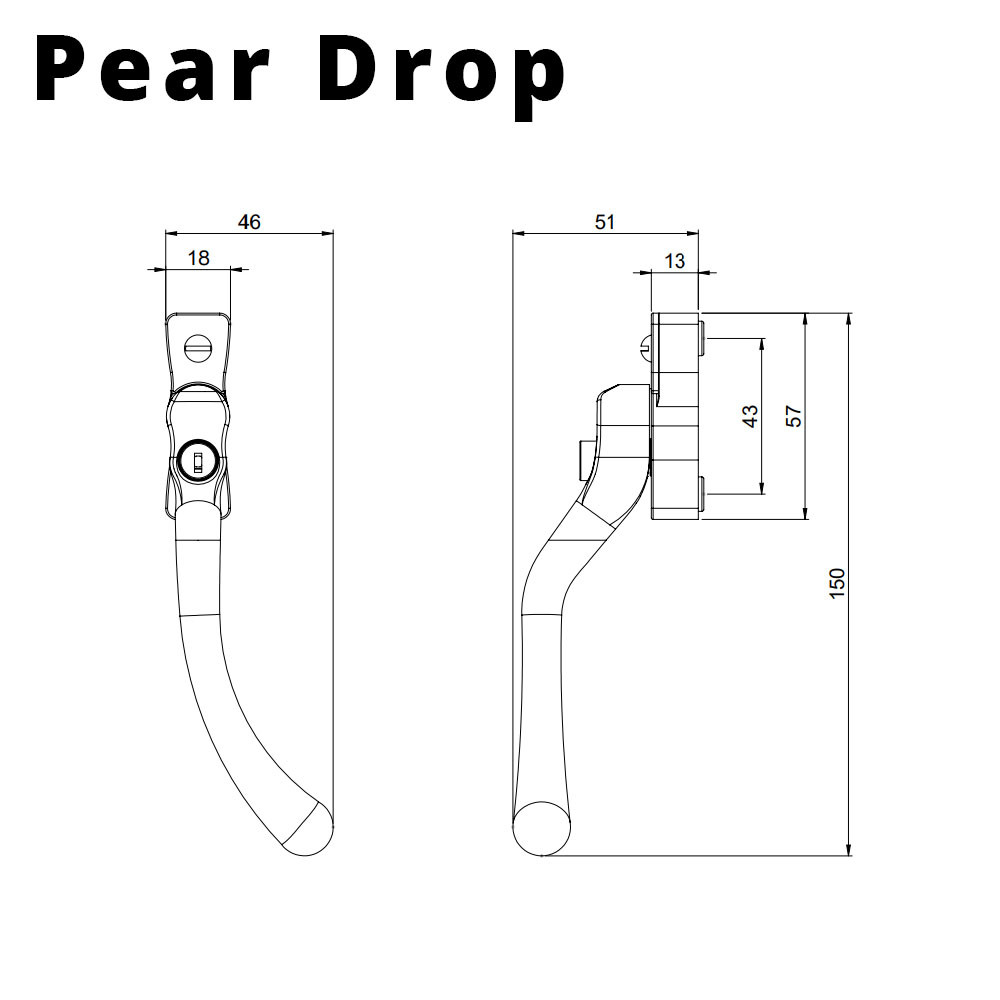

Measuring your handle

Screw Hole Fixing Centres:
Most espag handles are made to industry standards with 43mm screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:
These handles are cranked which means they're handed (left or right). The handedness of a handle is simply judged by what hand you would use to operate it with.

Spindle Length:
Remove the two screws fixing the handle to the window and measure from the base of the handle to the tip of the spindle.

Spindle width:
Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
