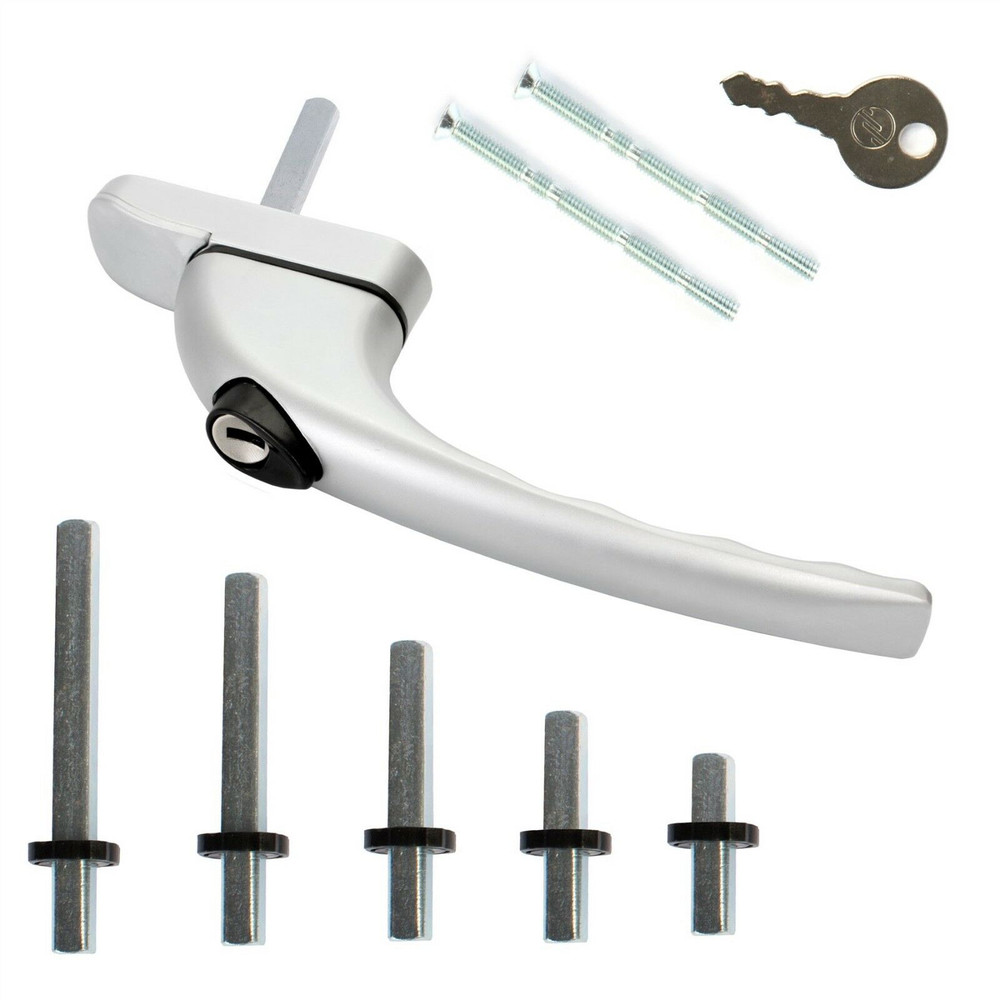

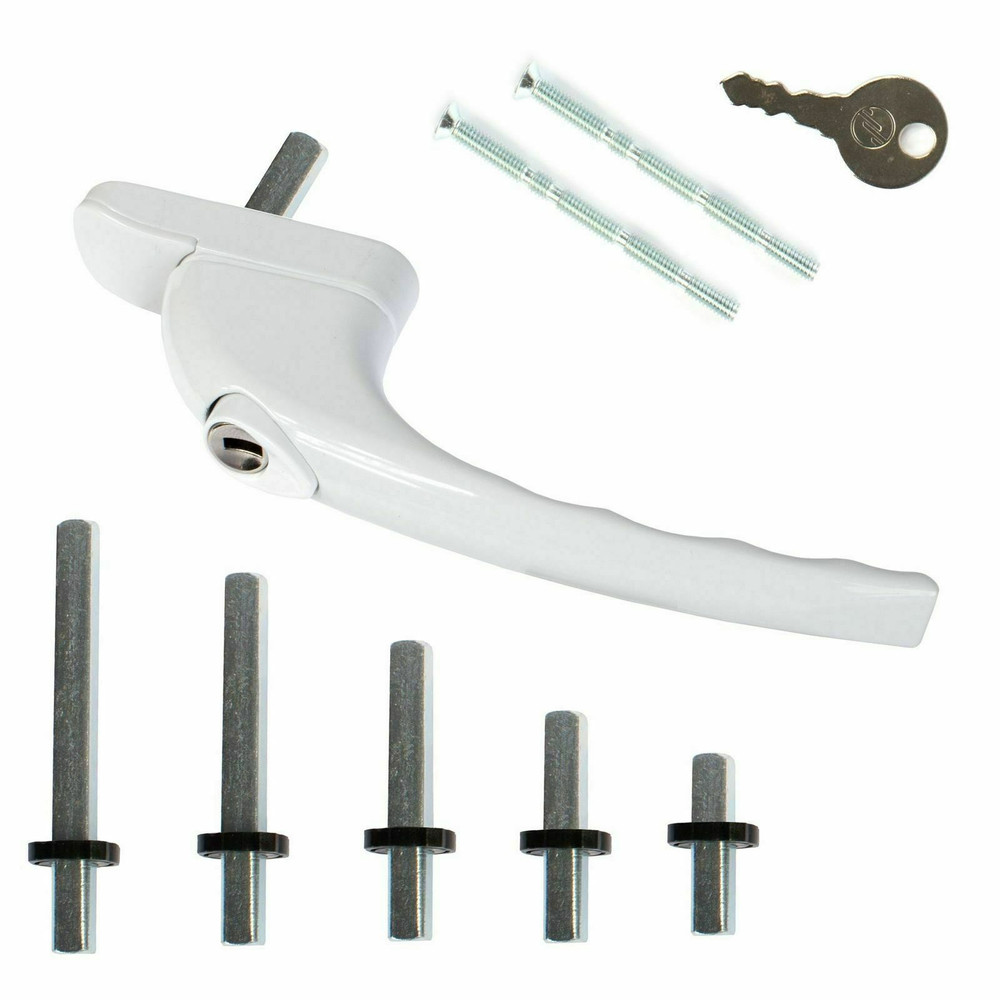

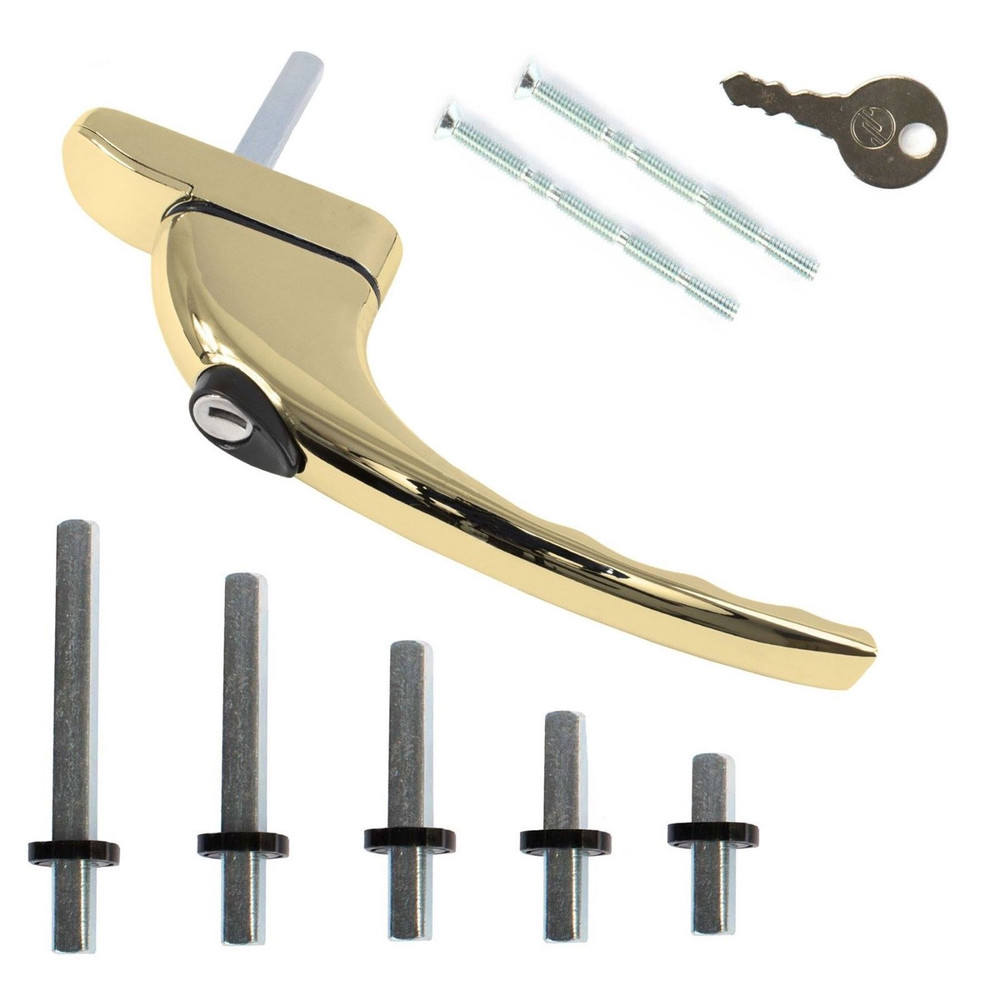

Mila Prolinea Universal Upvc Window Handle

This Mila Prolinea smart spindle handle is a truly universal replacement upvc window handle. With 5 interchangeable spindles to choose from, and its ability to be used with uPVC, timber and aluminium, it can be made to fit nearly all windows. Simply select the spindle size required and click into place in the base of the window handle.

Mila Prolinea Universal Window Handle Information

• Universal handle - fits both left and right hand openings
• Secure handle (can't be flicked open)
• 43mm screw hole centres
• Child safe handle, requires button press
• Comes with 5 spindles - 9mm, 15mm, 30mm, 40mm & 55mm
• Comes with 2 fixing screws per handle

Dimensions

• Screw Hole Centres: 43mm
• Spindle Length: 9, 15, 30, 40 & 55mm
• Spindle Width: 7mm Square

Measuring your handle

Screw Hole Fixing Centres:

Most espag handles are made to industry standards with 43mm screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the inline type (Non-handed), therefore they will replace both left and right hand handles.

Spindle Length:

These handles have a changeable spindle meaning you will not need to measure the spindle length of your current window handle. Simply insert the size spindle you require at the time of fitting.

Spindle width:

Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
