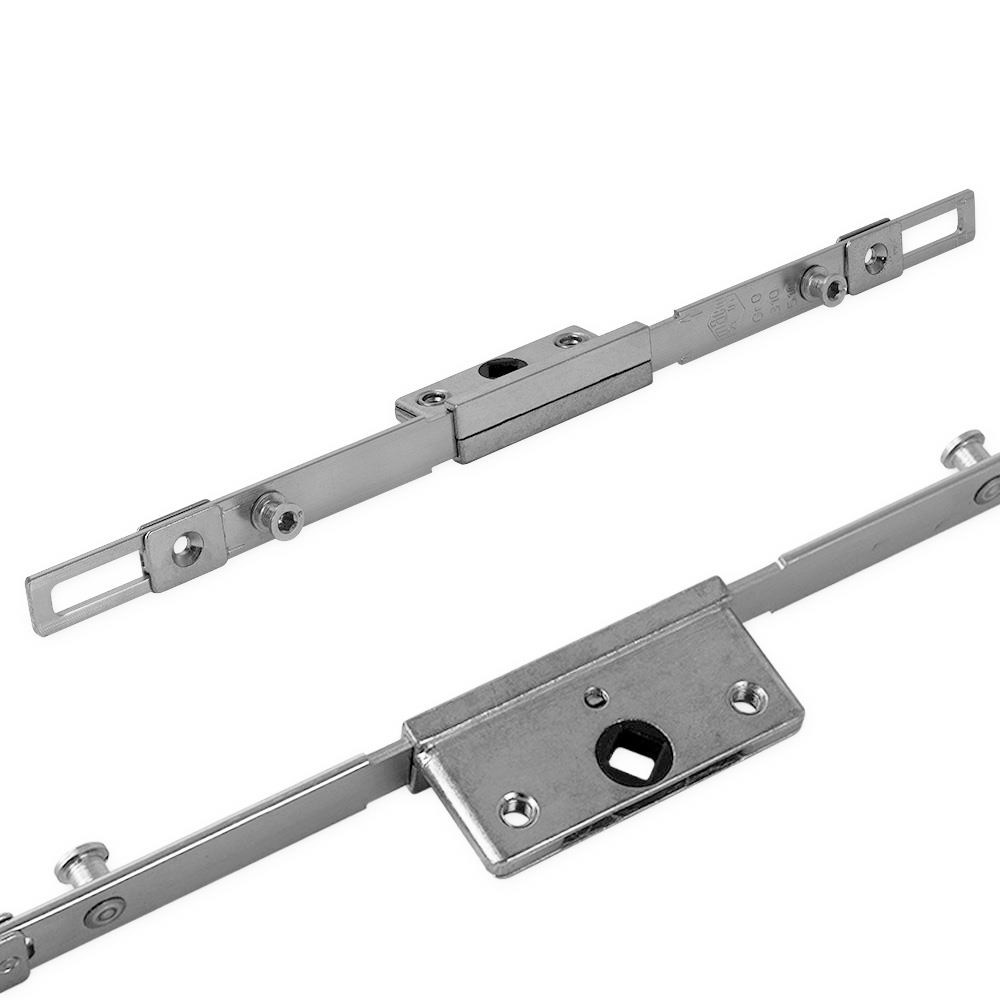

Maco Offset Espag Rod UPVC Window Lock Mechanism
The Maco offset mushroom espagnolette is designed for profiles with or without a Eurogroove and can be used on Aluminium, Timber and Upvc window systems. Maco espags can be fitted to side or top hung windows. The Maco offset espag is compatible with all standard espag handles with 43mm fixing centres with a 7mm square spindle.
Information
- 20 or 25mm Backset
- 7.7mm Mushroom Cam locking point Height
- Gearbox width - 60mm
- Gearbox thickness - 6mml
- 16mm width flat rail
- Distance between cams: Please see technical images
- Eccentric cams to provide smooth operation (adjustable with an Allen key)
- Corrosion resistant
- Offset gearbox
Technical

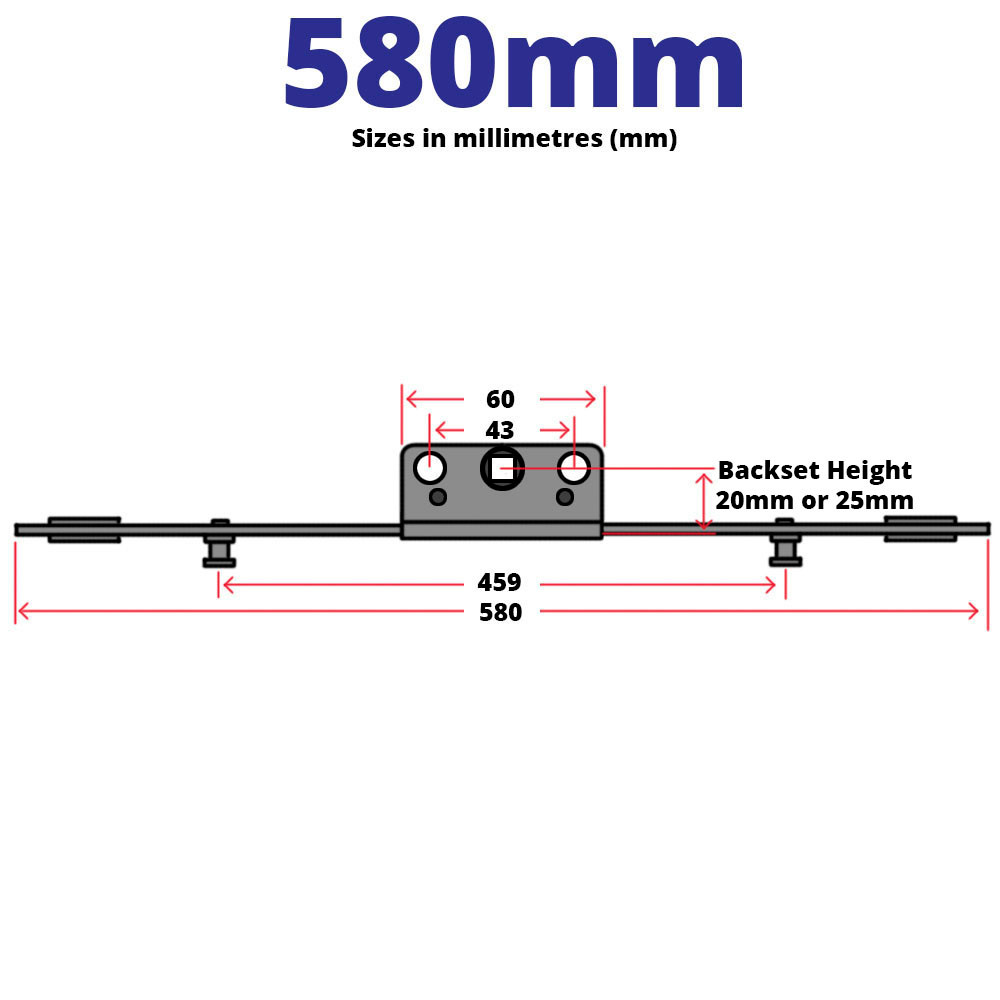

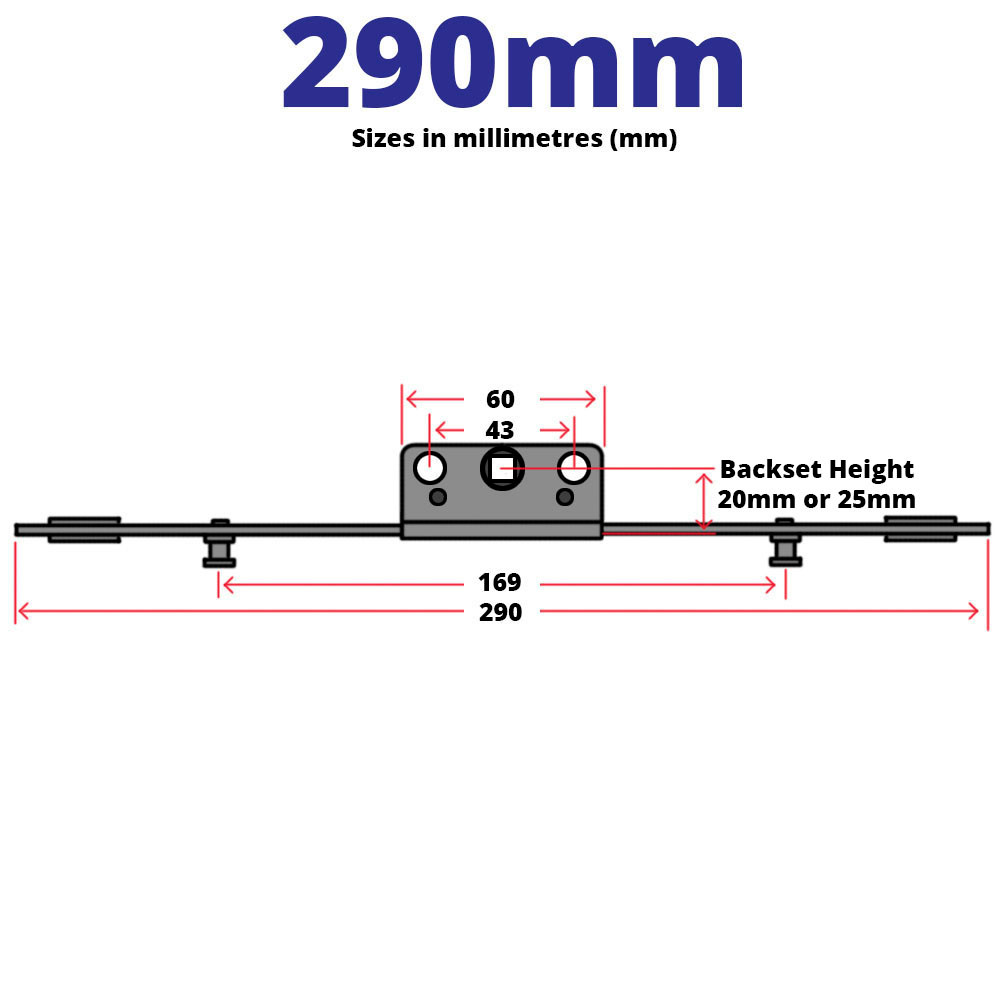

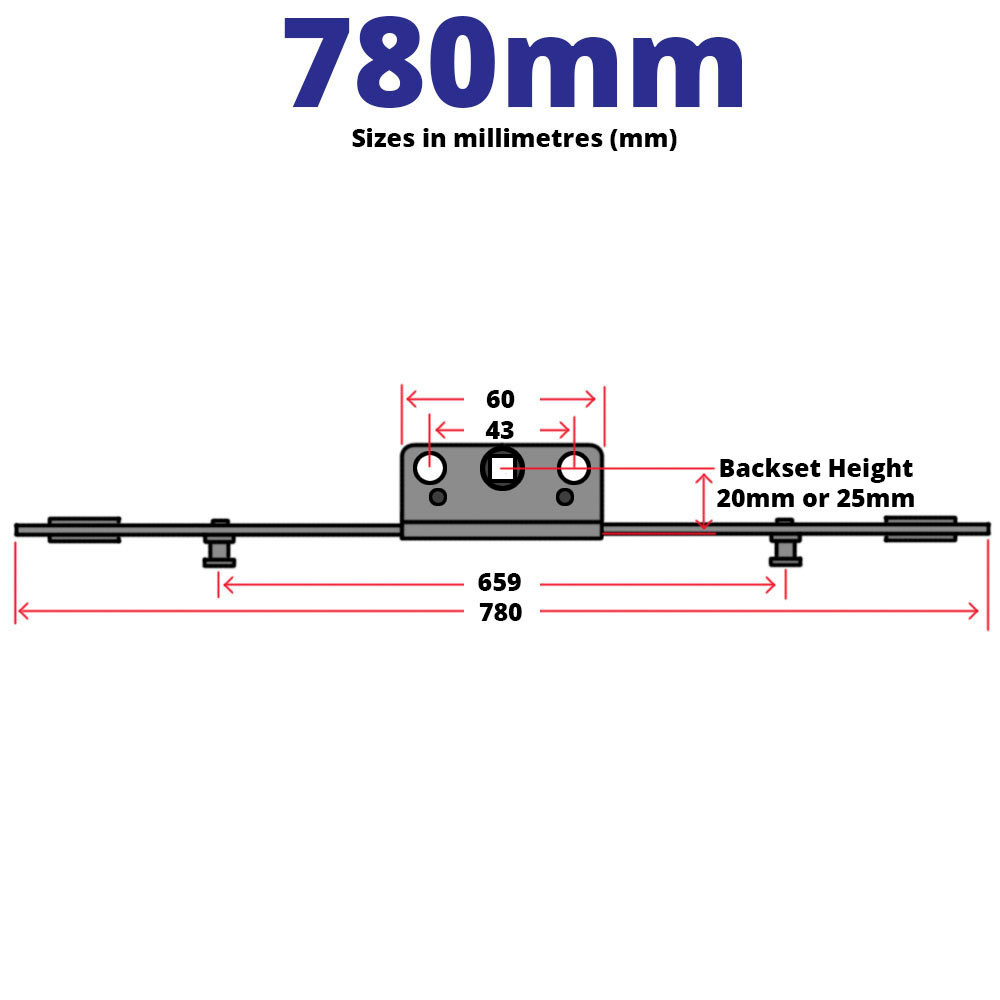

A full technical diagram is included in the image gallery.
