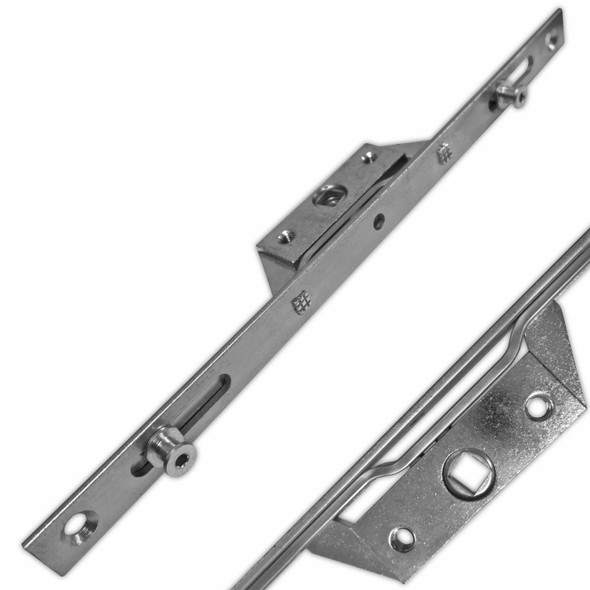

A standard offset U Rail espag locking mechanism manufactured by Avocet. An espagnolette UPVC window lock is the gearing part inside a window that a spindle drive handle operates. This offset mushroom bolt espagnolette is designed for profiles with or without a eurogroove and can be used on Aluminium, Timber and UPVC window systems. Avocet espags can be fitted to side or top hung windows.

Information

• 8mm Cam height
• Backset: 20mm or 25mm
• Cam height: 8mm
• Faceplate width: 16mm
• Distance between cams: Please see technical images
• Offset Gearbox
• Please note: If the cams do not match your existing window lock perfectly you can simply move the keeps on your window frame to match the new lock

Technical

A full technical diagram is included in the image gallery.
