Description

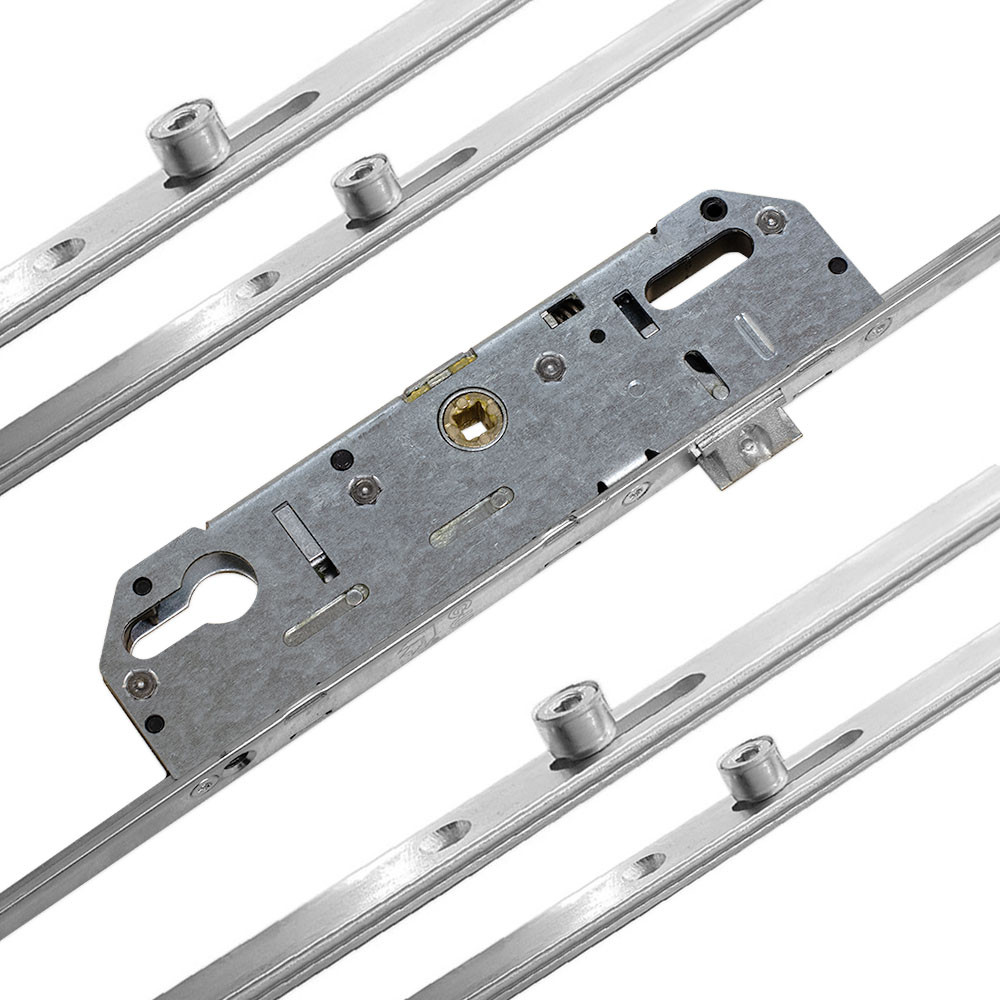

GU Ferco 4 Roller Multipoint Door Lock Mechanism 35mm
A genuine GU Ferco replacement multipoint door lock featuring four roller cams and a centre latch. Designed for compatible door systems, this mechanism features a 35mm backset, single follower gearbox and 70mm PZ centres. Suitable for use on left or right handed doors.
Information
- Four roller cams: Help provide compression against the door frame seals for a consistent door closure.
- Latch-only mechanism: Features a centre latch without a centre deadbolt.
- Non-handed design: Suitable for use on compatible left or right handed doors.
- Single follower: Designed for compatible single spindle door handle arrangements.
- Replacement mechanism: Suitable for replacing a matching GU Ferco multipoint lock with the same gearbox configuration and roller positions.
Technical
Refer to the product images for the centre gearbox arrangement and positions of the four roller cams.
Specifications
| Backset | 35 mm |
|---|---|
| Handle centres (PZ) | 70 mm |
| Locking points | 4 roller cams |
| Handing | Non-handed — left or right handed doors |
| Faceplate width | 16 mm |
| Spindle arrangement | Single follower |
| Centre locking | Latch only — no centre deadbolt |
