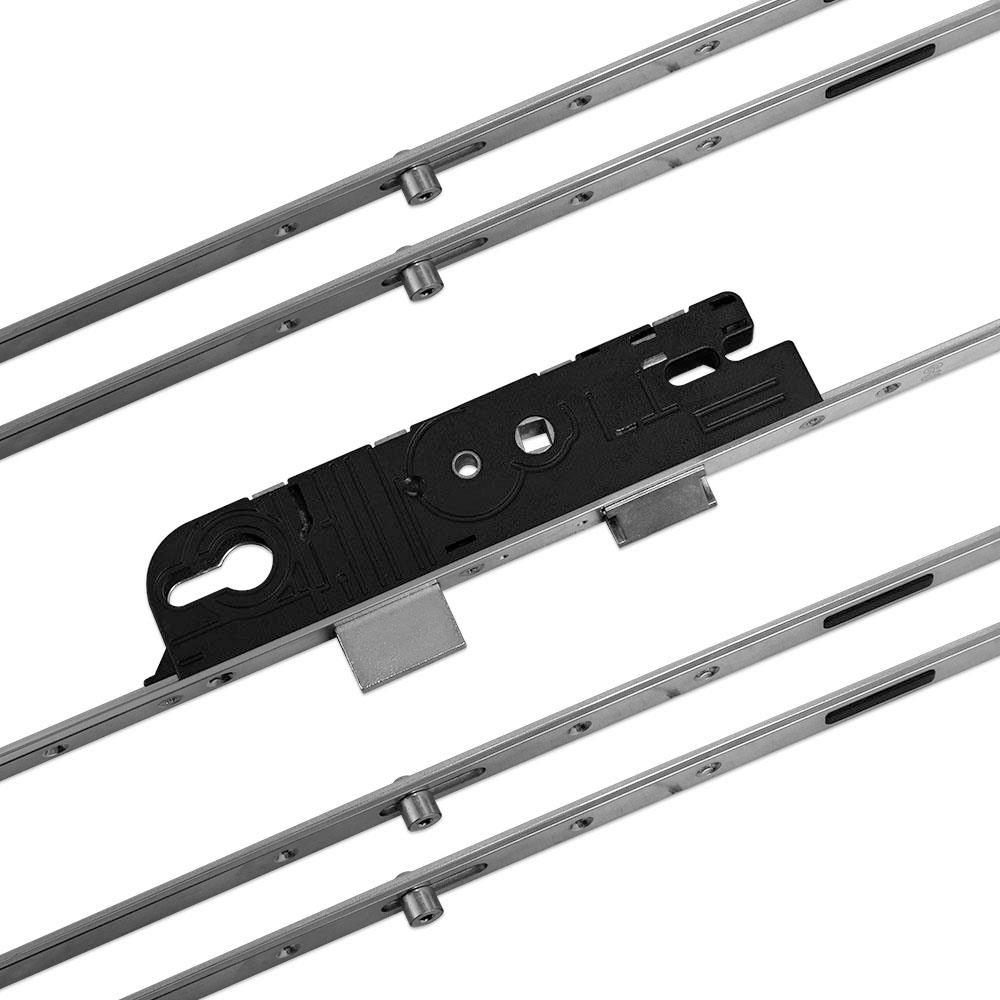

GU New Style 4 Roller Multipoint Door Lock Mechanism 28mm
A genuine GU New Style replacement multipoint door lock featuring four roller cams and a centre latch and deadbolt. Designed for compatible uPVC door systems, this mechanism features a 28mm backset, single follower gearbox and lift lever operation. Suitable for use on left or right handed doors.
Information
- Four roller cams: Help provide compression against the door frame seals for a consistent door closure.
- Centre locking: Features a centre latch and deadbolt alongside the four roller locking points.
- New style gearbox: Features the updated GU centre gearbox design for compatible new style multipoint mechanisms.
- Non-handed design: Suitable for use on compatible left or right handed doors.
- Single follower: Designed for compatible single spindle door handle arrangements.
Technical
A technical diagram is included in the image gallery, showing the centre gearbox dimensions and positions of the four roller cams. Measurements are shown with the mechanism in the locked position.
Specifications
| Backset | 28 mm |
|---|---|
| Handle centres (PZ) | 92 mm |
| Locking points | 4 roller cams, plus centre deadbolt |
| Handing | Non-handed — left or right handed doors |
| Spindle arrangement | Single follower |
| Operation | Lift lever |
