Federal Lock Gabriel
Gabriel
by FEDERAL LOCK
The enhanced 3 Star cylinder engineered to defeat the latest freeze, glue, and snap attacks. Fully certified to the new TS007:2024 standard.
Why This Lock is Different
Certified Beyond the Standard.
Don't settle for older technology. The Gabriel Series is verified by the industry's toughest critics.
TS007-1:2024
The New British Standard. Updated specifically to include rigorous tests for "surreptitious attacks" specifically glue and freeze attacks.
Sold Secure Diamond
The Master Locksmiths Association's highest torture test. It goes far beyond the "Gold" standard.
Police Preferred
Secured by Design (SBD) is the official police security initiative.
Total Defence
Architecture.
Patented Anti Snap
Our core active defence. If the lock is snapped, a patented internal clutch fires instantly, locking the cam down.
Anti Drill
Strategically placed hardened steel pins protect the cylinder core, preventing drill bits from penetrating.
Anti Pick & Bump
During a picking attack, the specially shaped anti-pick pins mislead the burglar, making the attack ineffective. The anti-bump pins create controlled gaps between the bottom and top pins, effectively resisting bump key attacks.
UG Connector
The UG connector is made of a special alloy that can resist all types of attacks and it features a black chrome surface finish for a cleaner appearance.
9-Pin System
Advanced 9-pin system (6 main, 3 side) for maximum key security and differs.
Premium Polished Chrome
Finished to a stunning mirror shine. High-quality plating resists corrosion and adds luxury to your door.
Seen enough? Secure your home now.
In stock and ready for immediate dispatch.
Protection Against Freeze & Glue Attacks
Standard cylinders and even older 3-Star rated locks (certified before the updated TS007:2024 standard) will not protect against these attacks. The Gabriel by Federal Lock is specifically engineered to stop these methods, passing the rigorous new TS007:2024 freeze and glue attack tests.
Anti Freeze
The Threat: Burglars inject water into the keyway and apply freeze spray to solidify it. The goal is to freeze the internal springs and pins, preventing the safety mechanism from firing when the lock is snapped.
The Defence: The Gabriel features a specialized isolated cam mechanism. Even if the keyway and pins are frozen solid blocks of ice, the safety clutch remains independent and active, firing instantly to lock the door upon snapping.
Anti Glue
The Threat: Cyanoacrylate adhesive is injected into the plug through the keyway, and then an activator is applied to solidify the adhesive, preventing the locking mechanism from functioning after a snap attack.
The Defence: Enhanced internal geometry prevents the glue from disabling the safety cam, ensuring the lock remains secure even when sabotaged.

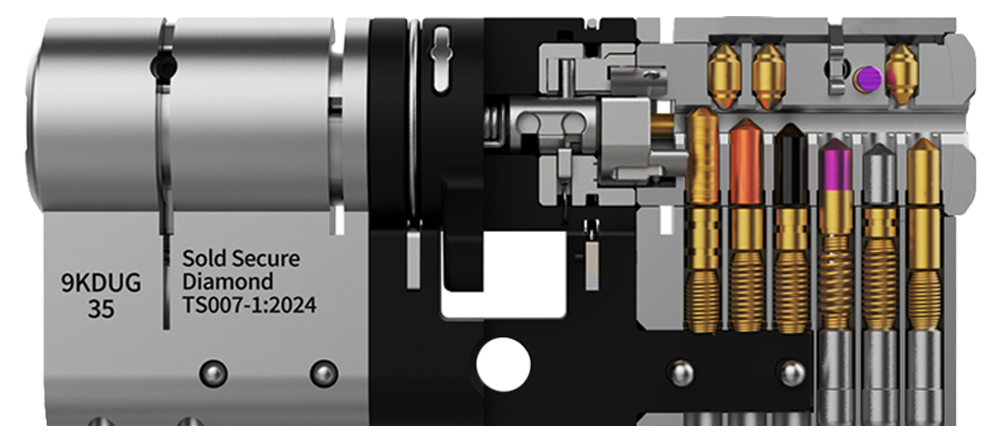

Inside the Gabriel Anti-Snap System
The Gabriel’s patented anti-snap technology actively protects your home against the latest freeze and glue tampering methods.
Engineered Precision
High-tolerance internal components designed to resist fluid ingress.

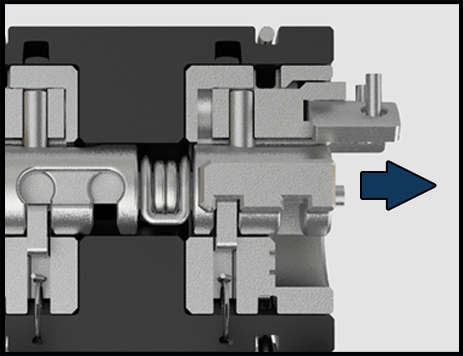

Active Clutch
The firing pin mechanism operates independently of the keyway channel.

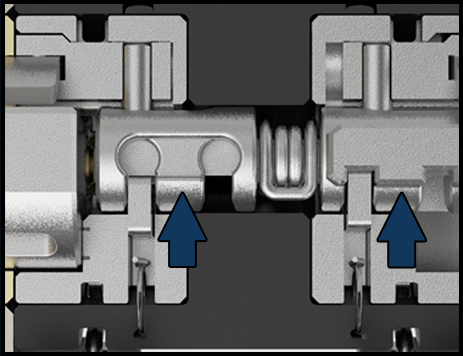

Instant Lockdown
Upon snapping, the cam fires into a locked position.

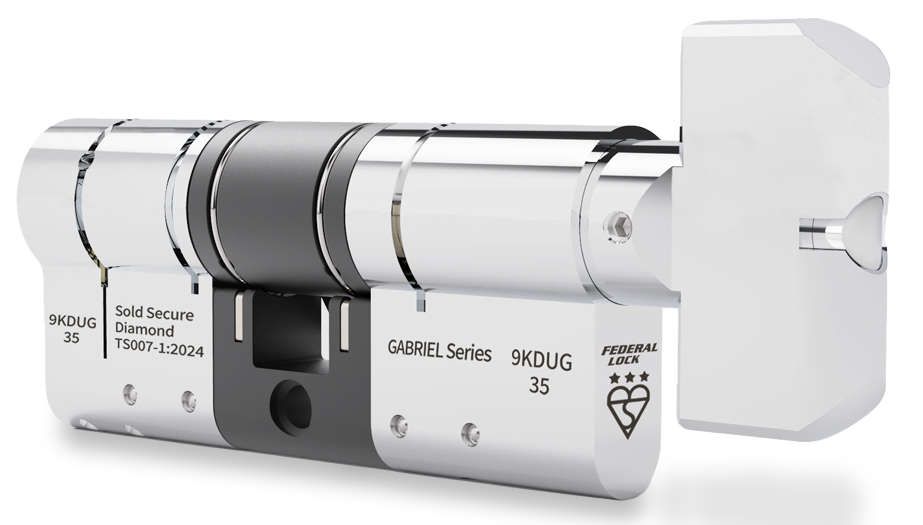

Safe Exit Guarantee
Your safety comes first. Even if the cylinder has been attacked, snapped, and locked down from the outside to prevent intrusion, you are never trapped. The Thumbturn features an integrated Release Button.
FD30 & FD60 Fire Rated.
BS EN 1634-1:2014 + A1:2018
Security isn't just about keeping people out; it's about keeping people safe. Fully tested and certified for 30 and 60 minute fire doors.
Premium Keys & Expert Services
5 premium keys included as standard, with expert key cutting available for spares.
5 High Security Keys Included
Right out of the box, you get 5 premium high-security dimple keys. Most cylinders only come with three. These keys are significantly thicker than standard keys, offering exceptional durability and value.
Professional Key Cutting
We can cut additional keys for cylinders to order, or for locks you have already purchased. We use state-of-the-art key cutting machines and genuine key blanks for perfect precision.
Order Extra KeysSelect Your Protection
Choose the configuration that fits your door.

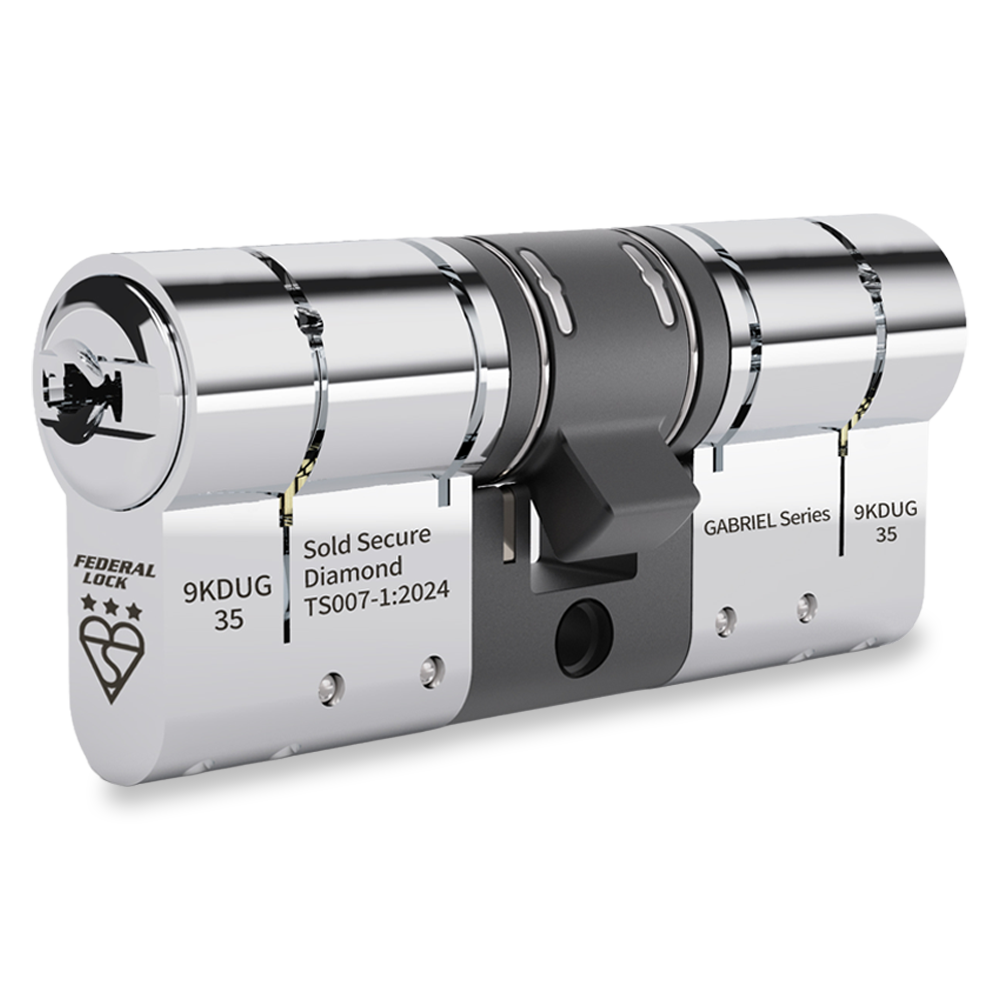

Gabriel 3 Star Double Cylinder
Standard Key operation on both sides.
- Sold Secure Diamond Approved
- Anti-Snap, Anti-Freeze, Anti-Glue
- Anti-Bump, Anti-Pick, Anti-Drill
- 5 Keys Included

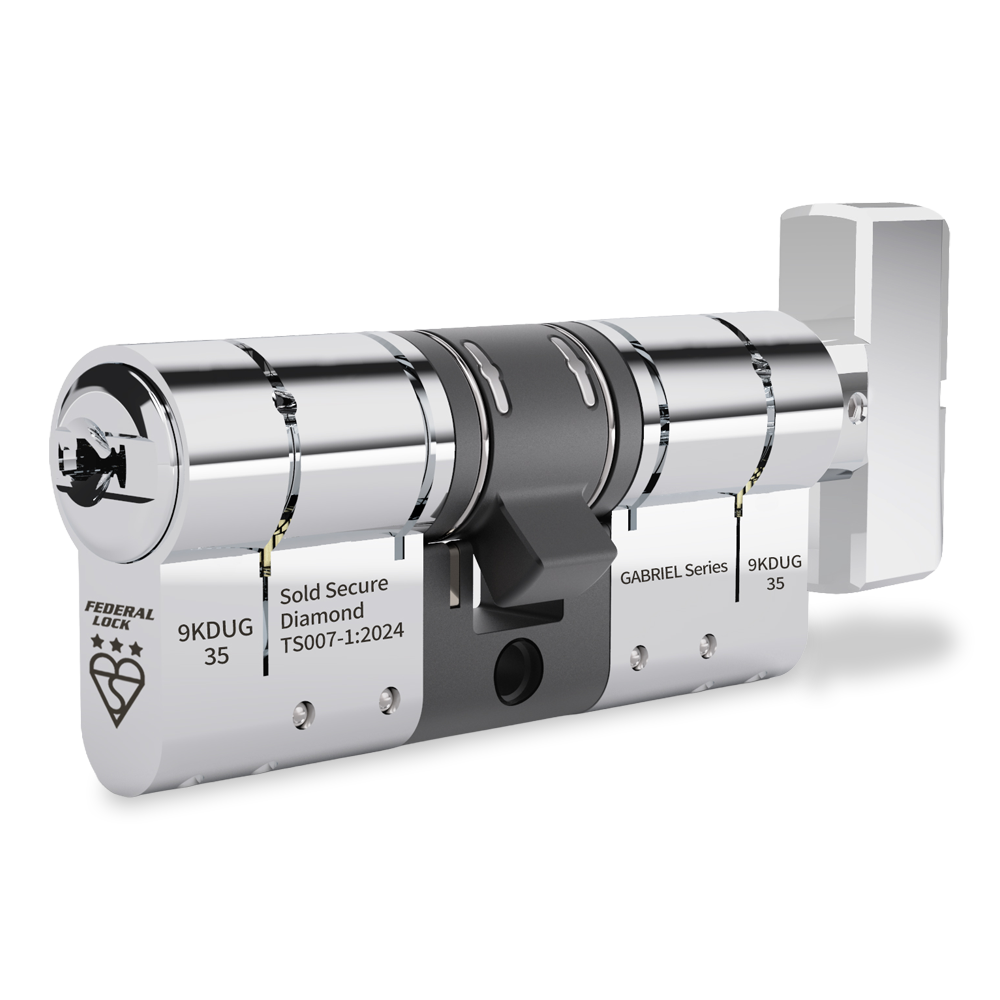

Gabriel 3 Star Thumbturn
Key access outside, convenient Thumbturn inside.
- Sold Secure Diamond Approved
- Anti-Snap, Anti-Freeze, Anti-Glue
- Anti-Bump, Anti-Pick, Anti-Drill
- 5 Keys Included
Frequently Asked Questions
The Gabriel cylinder is an Enhanced 3 star cylinder that meets the very latest security standards. It has achieved the Sold Secure Diamond (SS312:2024) rating and the BSI Kitemark 3 Star (TS007-1:2024) accreditation. This means it has been rigorously tested against drilling, picking, bumping, and snapping, making it one of the most secure euro cylinders available for residential doors
This lock features a patented LOCKING system designed specifically to combat snap attacks. If a burglar attempts to snap the lock, the housing pulls a locking set outwards, which automatically locks down the cam area. This prevents the intruder from manipulating the lock mechanism to open the door, effectively trapping them out.
Yes. The Federal Gabriel is unique because it offers upgraded protection against advanced intrusion methods that many standard 3 star locks miss. It is engineered to resist Freeze Attacks (where attackers inject water and freeze it to disable the mechanism) and Glue Attacks (using cyanoacrylate adhesive). The internal locking mechanism ensures the door stays secure even if these substances are injected into the keyway.
Yes, the Gabriel series is Secured by Design (SBD) approved, which is the official UK Police Preferred Specification. It is also fire rated to FD30/60 standards (BS EN 1634-1), making it suitable for fire doors.
The UG Connector is the central bridge of the cylinder. It is manufactured from a special alloy designed to resist high force attacks. Unlike weaker connectors that might break under pressure, this component ensures the cylinder remains intact and secure, while the black chrome finish gives it a premium, clean look.
Yes. A major advantage of the Gabriel's design is that even if the external side has been snapped and the safety mechanism has triggered, the cylinder can still be operated conveniently from the inside of the door. This ensures you are never trapped inside your own home during an emergency.
No, the Gabriel cylinder is Non Handed, meaning both sides of the cylinder can be used as the external side. This makes installation much easier as you do not need to worry about which end of the lock faces the street—both ends offer full anti snap and anti drill protection.
The Gabriel uses a high security dimple key system with over 200,000 key differs, making unauthorized copying extremely difficult. It operates on a 9 pin system (6 main pins and 3 side pins) for maximum pick resistance.
It comes with 5 keys as standard and we can cut additional keys for cylinders to order, or for locks you have already purchased.
