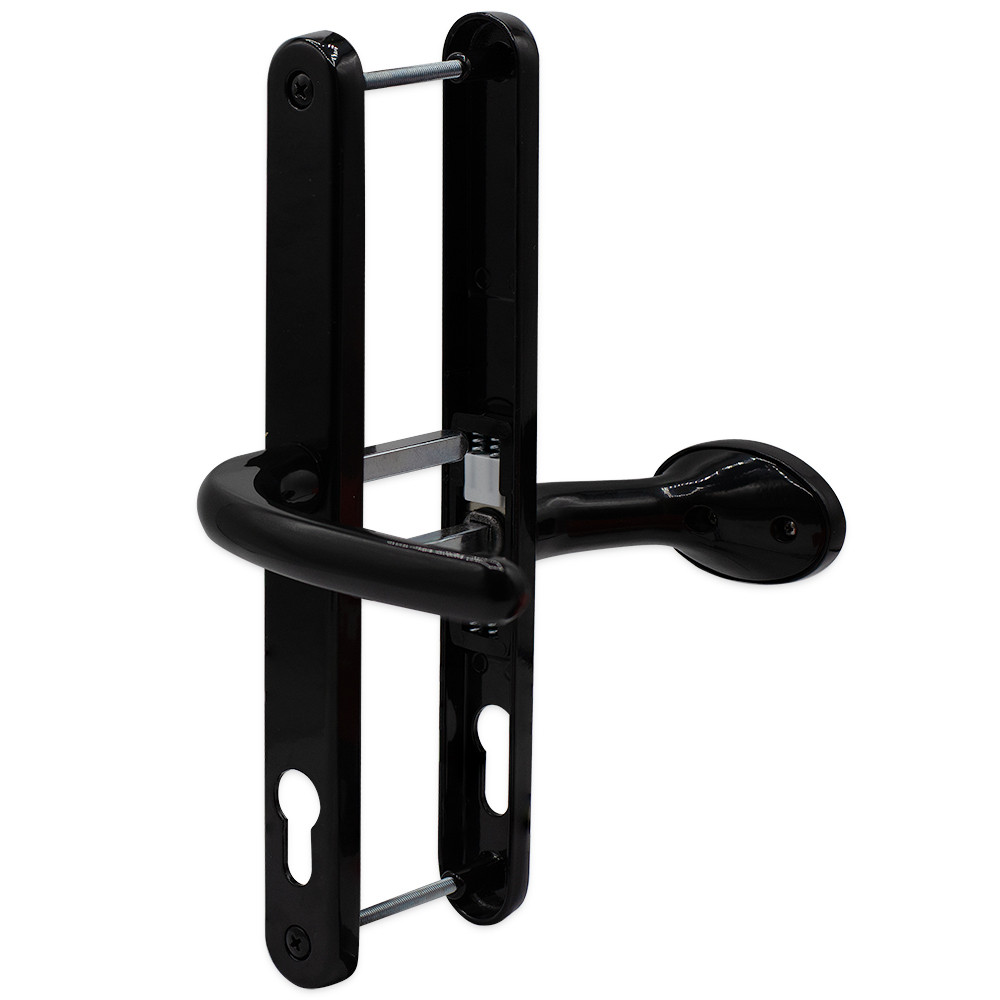

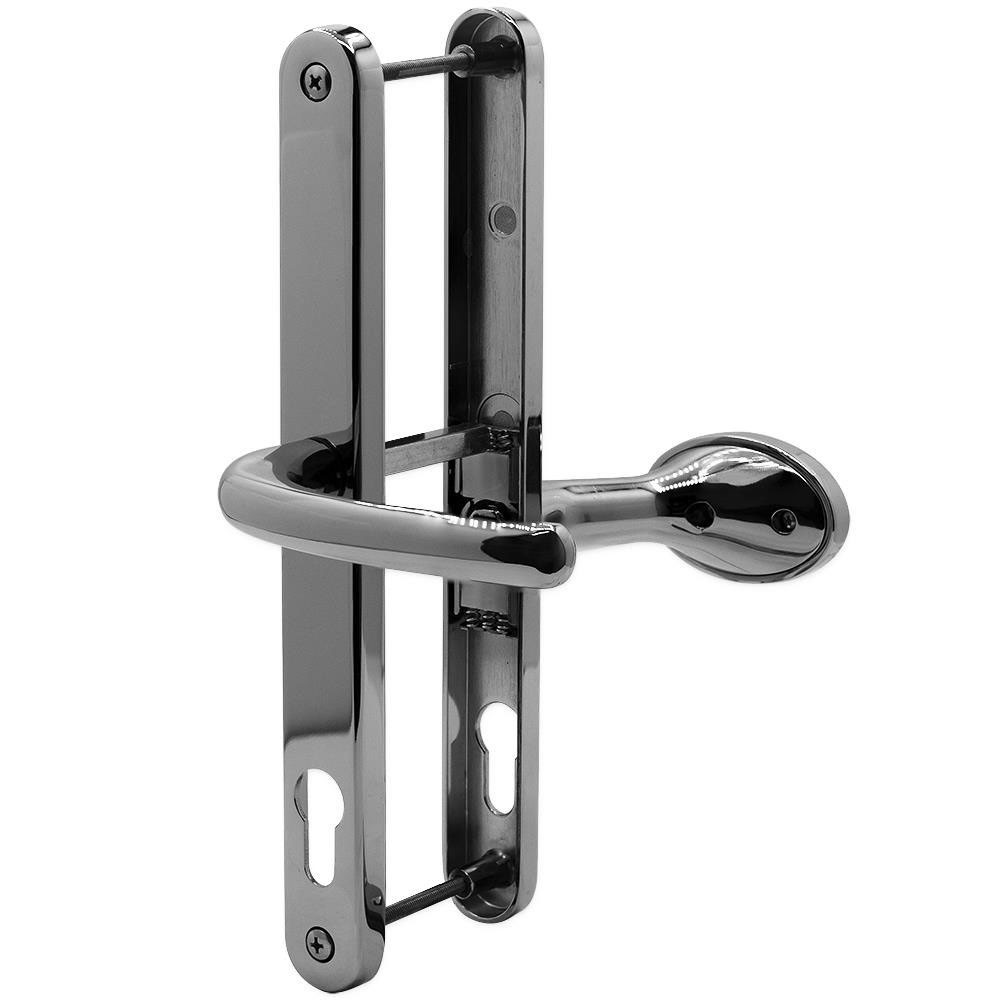

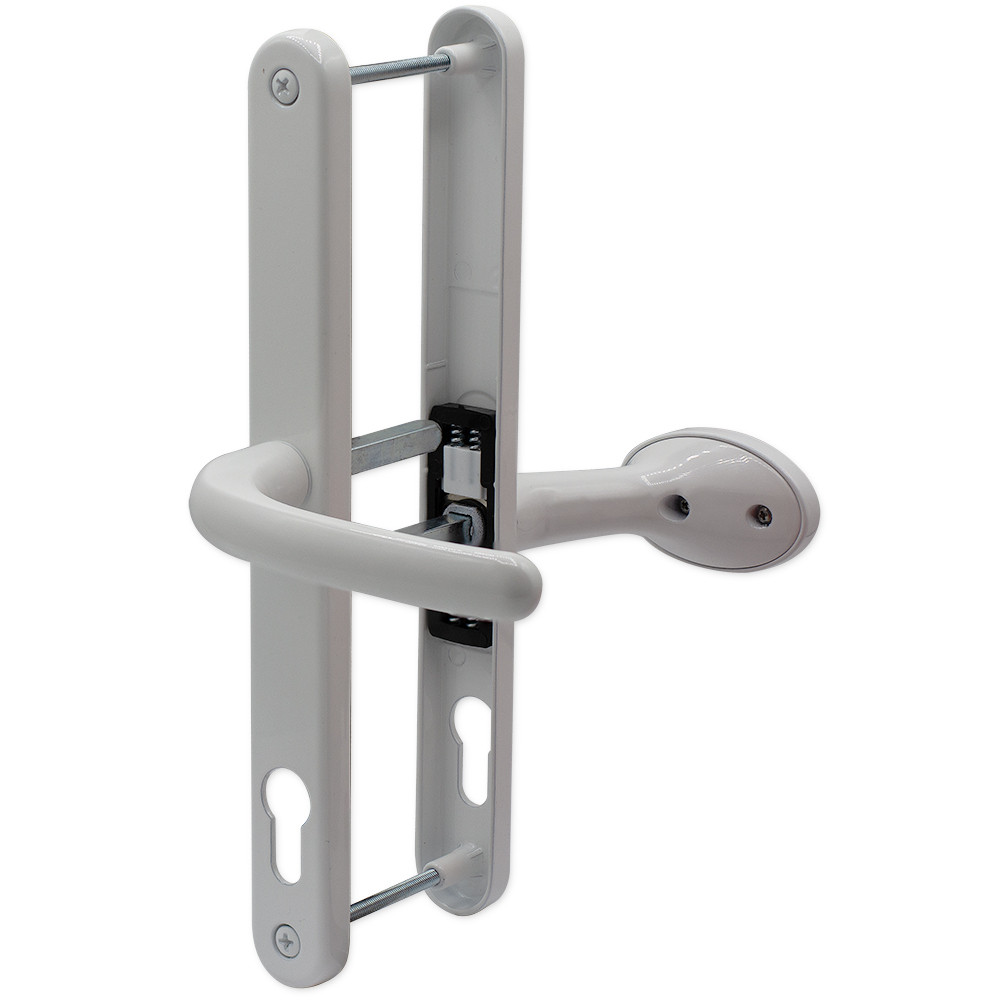

Fab & Fix Blenheim Door Handle Offset Lever Pad

The Fab & Fix Blenheim door handle has been manufactured by ERA to an extremely high standard which offers outstanding product performance and value. This sprung offset lever/pad door handle set has been designed to be fully reversible to fit both left or right hung doors. The offset lever pad design means it needs to be used with a dual spindle gearbox. This allows a security feature where the external pad handle does not operate the latch and you always need a key to allow access through this door from the outside.

The spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sagging. This Fab & Fix Blenheim 240mm fixing centre door handle set is designed to replace door handles with 92mm / 62mm pz measurements and a distance between screw hole fixings of 240mm

Information

• 92mm/62mm PZ
• Offset lever pad design
• 240mm Fixing centres
• 270mm Overall length
• Supplied complete with spindle and screws
• Fully sprung with 2 x spring cassettes
• Spindle size: 8mm
• Fully universal to fit both left or right hung doors

Technical

A full technical diagram is included in the image gallery.

Door Handle Measuring Guide

To ensure a perfect fit for your new door handle, you only need to take two essential measurements shown as 'Key Measurements' on our measuring guide image.

Fixing Centres:
This measurement (labeled A on the template) is the distance between the centers of the two screw holes on the handle's backplate.
Measure from the center of one screw hole to the center of the other.

Handle Centres (PZ):
This measurement (labeled B on the template) is the distance between the center of the keyhole to the center of the handle spindle or lever.
Use a tape measure and carefully measure from the center of the keyhole to the center of the spindle hole (where the handle's spindle or square bar will be inserted).

Important Note: Even if your new handle's backplate is slightly bigger or smaller than your existing one, it won't affect the handle's operation as long as the handle centers and fixing centers match.
If you have any questions or need assistance, feel free to contact our customer support team.
