Description

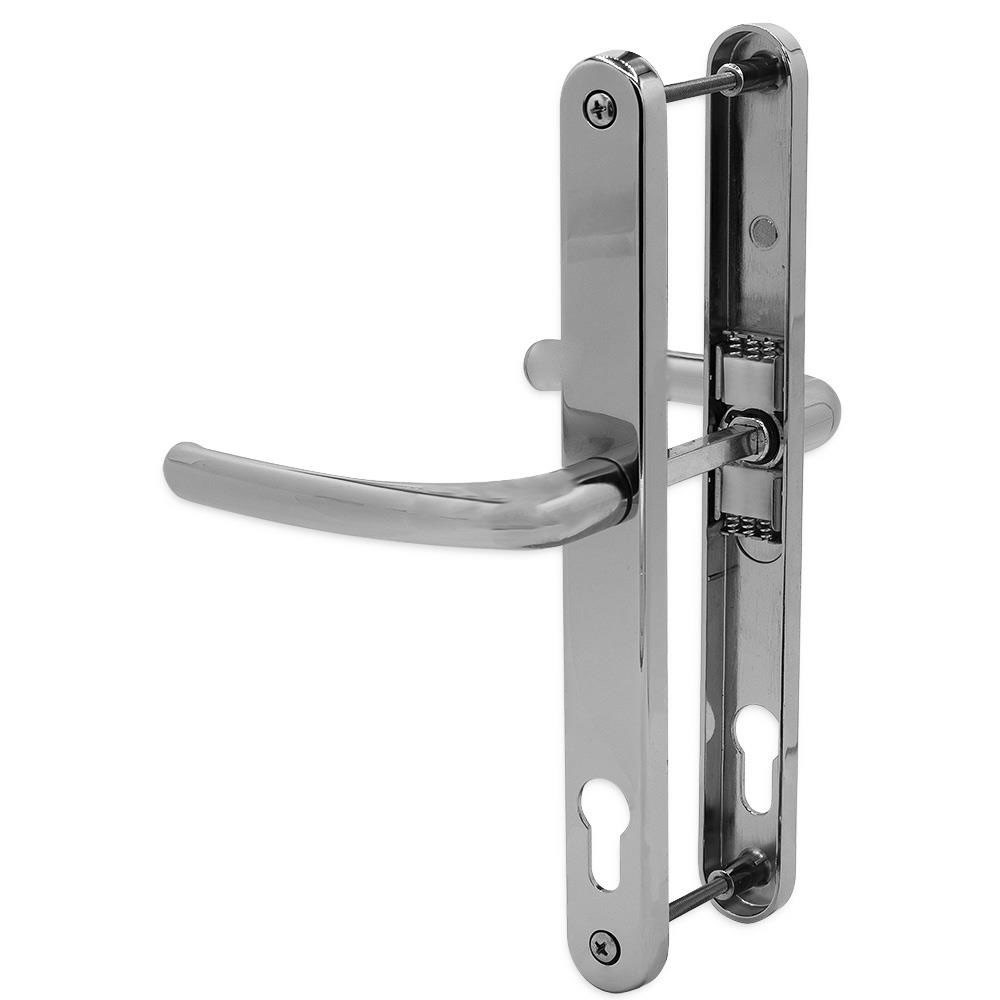

Fab & Fix Blenheim Door Handle 240mm Fixing Centres
The Fab & Fix Blenheim door handle has been manufactured by ERA to an extremely high standard which offers outstanding product performance and value. This sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors.
The spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sagging. This Fab & Fix Blenheim 240mm fixing centre door handle set is designed to replace handles with 92mm PZ measurements and a distance between screw hole fixings of 240mm
Information
- 92mm PZ
- 240mm Fixing centres
- 270mm Overall length
- Supplied complete with spindle and screws
- Fully sprung with 2 x spring cassettes
- Spindle size: 8mm
- Fully universal to fit both left or right hung doors
Technical
A full technical diagram is included in the image gallery.
Handle Measuring Guide
Measurement 1
There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.
Measurement 2
The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram. If the above two measurements match up then the door handle will fit and operate perfectly. All other measurements on the door handle are mainly aesthetics and won't affect fitting or operation if they're different.
