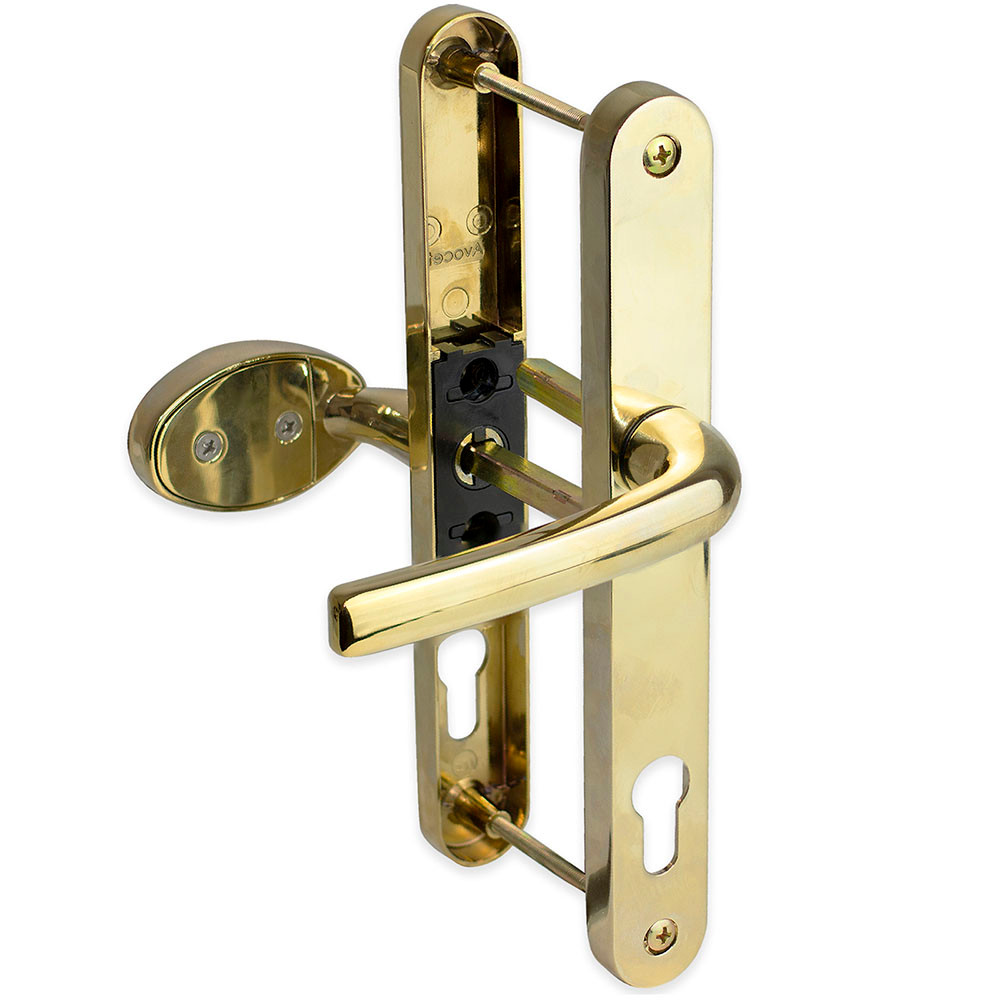

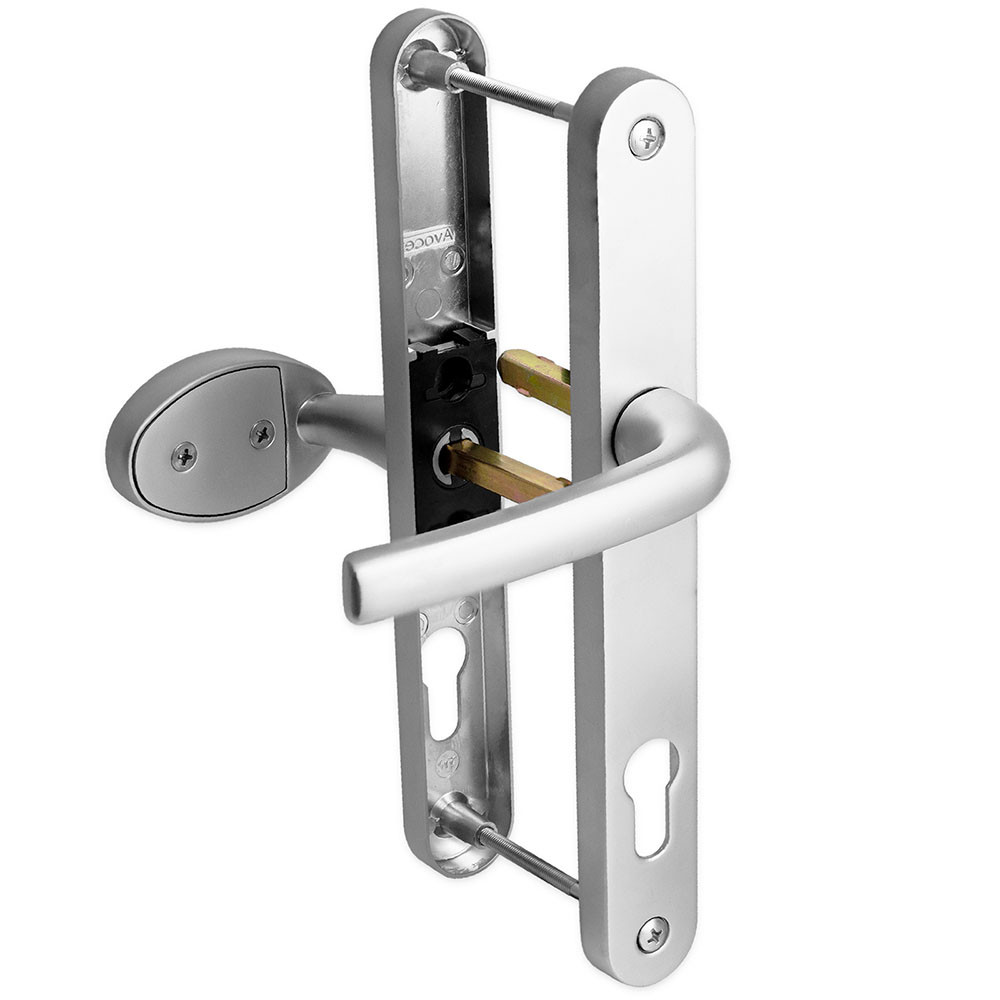

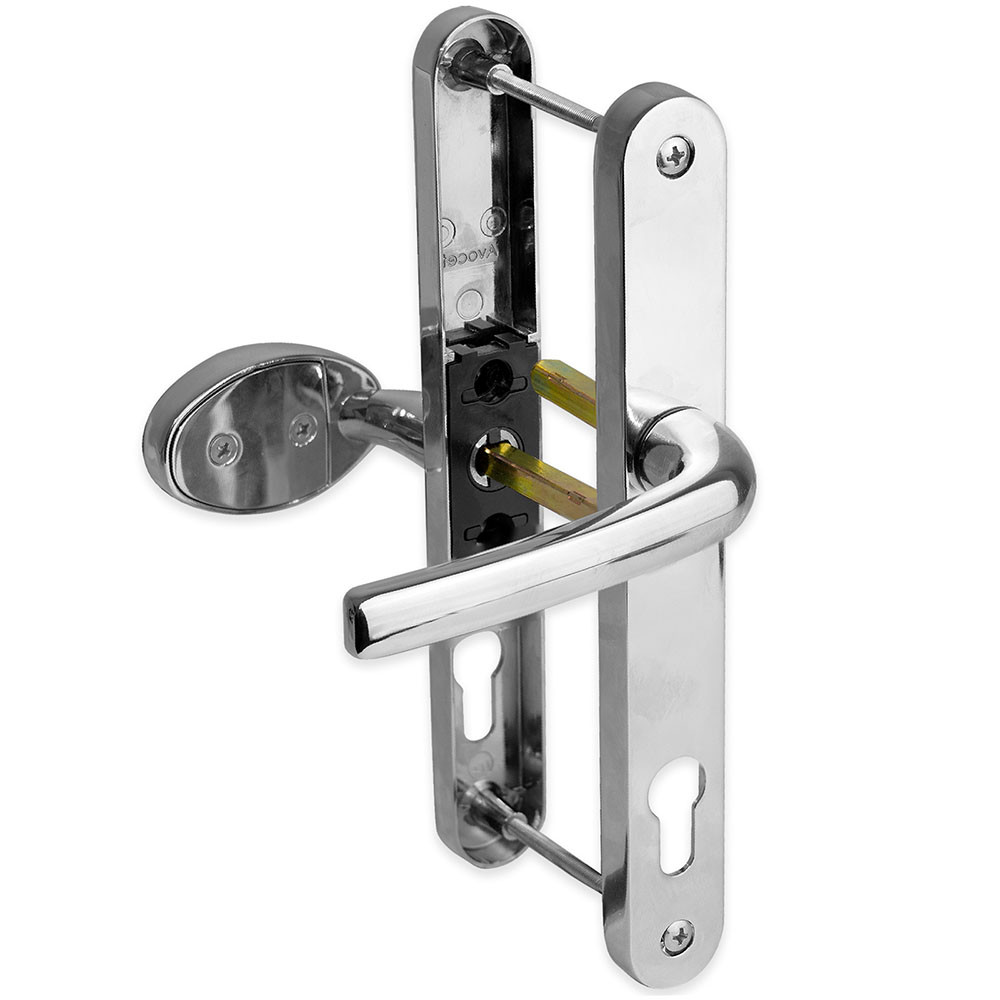

Avocet Pioneer Offset Lever Pad Door Handle 210mm

This offset lever pad door handle is manufactured by Avocet Hardware. It has 92mm / 62mm PZ centres and 210mm backplate fixing centres. This door handle is designed to be used with dual spindle multipoint door lock mechanisms.
The handle levers are sprung, solving the problem of a sagging door handle not returning to the horizontal position when not in use.

Information

• Universal handles - designed to work for both left and right hand
• Sprung lever - solves the problem of a "saggy" handle
• 92mm (Lever) / 62mm (Pad) PZ to suit dual spindle locking mechanism
• 210mm screw hole centres
• Available finishes - White, Chrome, Gold, Satin Silver and Black

Technical

A full technical diagram is included in the image gallery.

Door Handle Measuring Guide

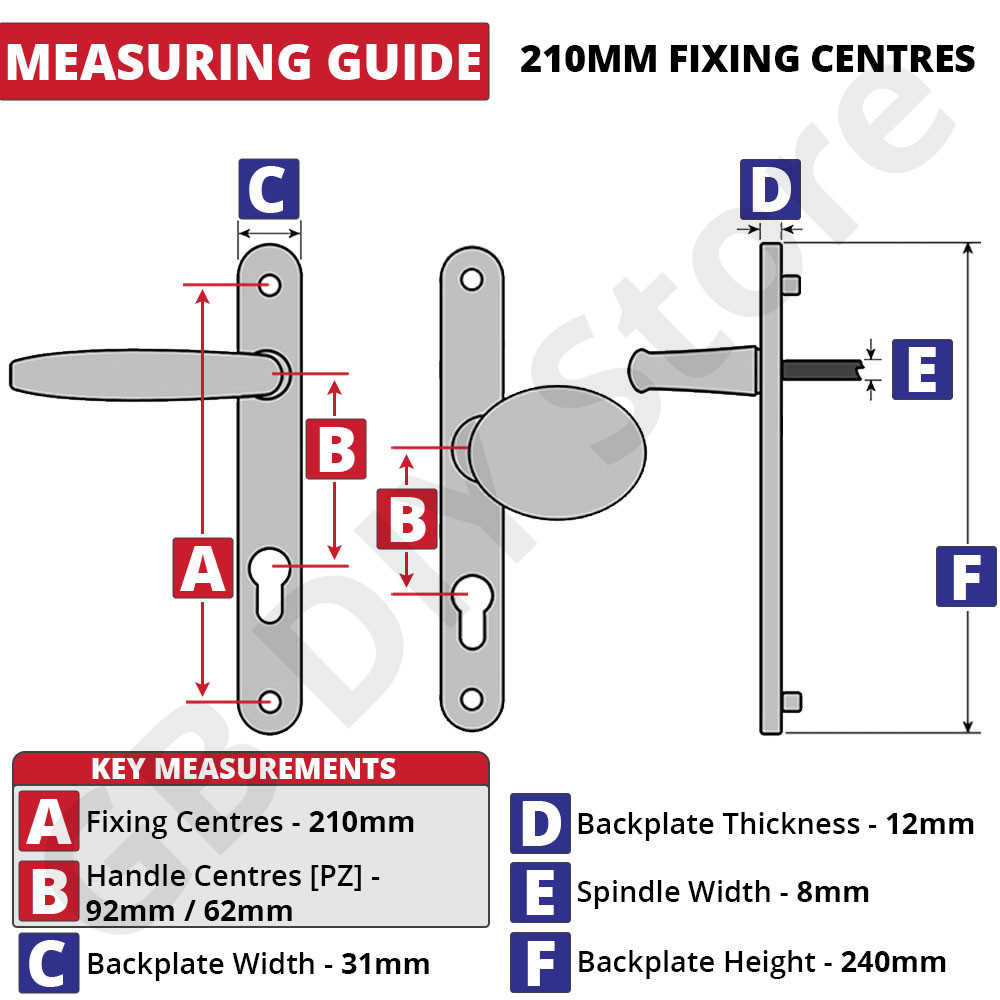

When measuring your door handle on your upvc or composite door there are two key measurements which need to be correct to ensure your replacement is a perfect fit. We have included a measuring diagram in the image gallery in addition to this guide.

Backplate Fixing Centres
The first measurement we refer to as the backplate fixing centres or fixing centres. This is measured by measuring from centre to centre of the fixing screws on the internal door handle. This is marked as measurement A on our measuring diagrams.

Handle Centres
The second measurement we refer to as the PZ or handle centres. This is measured from the centre of the square spindle hole or centre of the handle lever, to the centre of the circular part of your keyhole. This is marked as measurement B on our measuring diagrams.
If these two measurements match then the door handle will fit on your door perfectly.
If you need additional help finding the perfect upvc or composite door handle then please get in touch with our team.
