Description

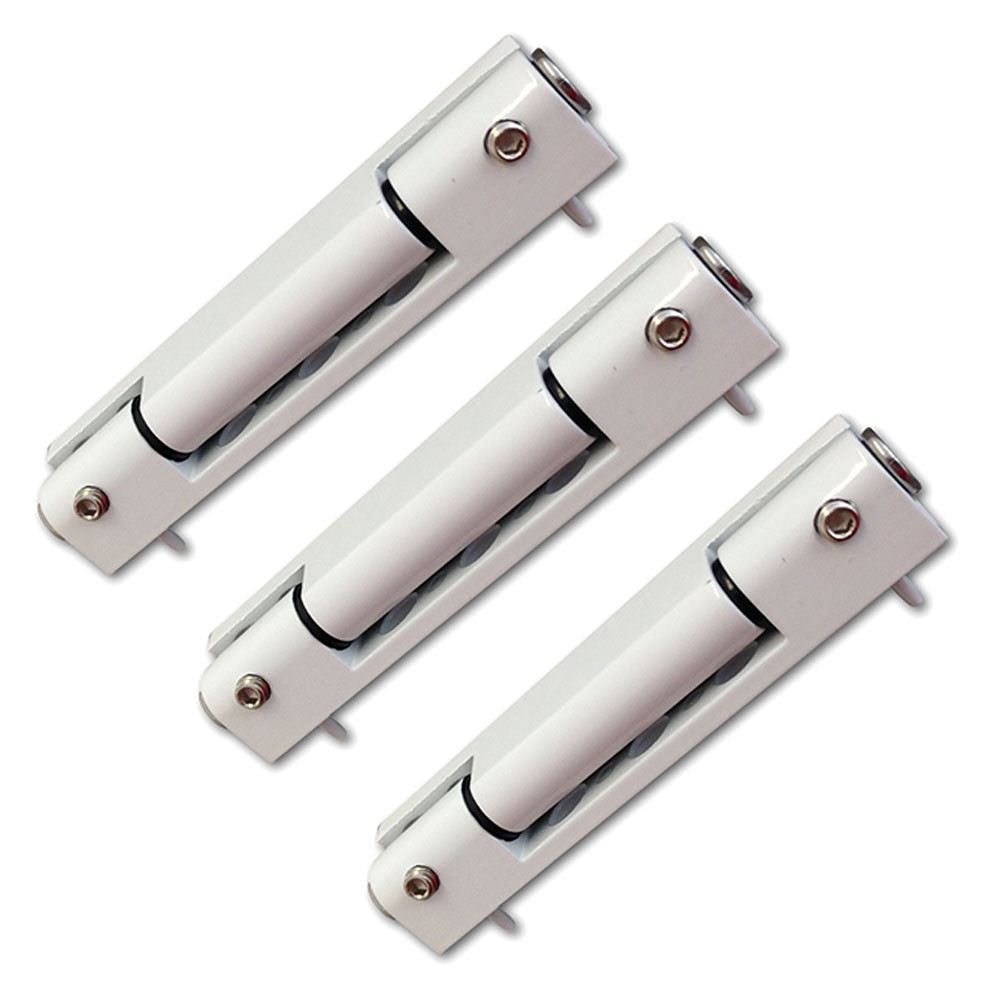

3 x AVOCET UPVC DOOR BUTT HINGE
This particular butt hinge is manufactured by Avocet Hardware, a leading manufacturer of window and door products, so you can be guaranteed a quality product
This adjustable hinge has up to 1.5mm of linear adjustment possible, without removing the door, simply open the door to 90 Deg then rotate two adjuster cams on the hinge until the desired adjustment is reached, ensuring the hinge marked points are aligned correctly. Available in white or brown.
Avocet Butt Hinge Information
- Pack of 3 Hinges
- Length 115mm
- Width 15mm
- Height 13mm (from base to centre of pin)
- Tested to 20,000 cycles on endurance at 100kg per single hinge
- Will fit door sashes with 0° or 13° edge profile
- Reversible (Fits left and right hand doors)
Technical
A full technical diagram is included in the image gallery.
