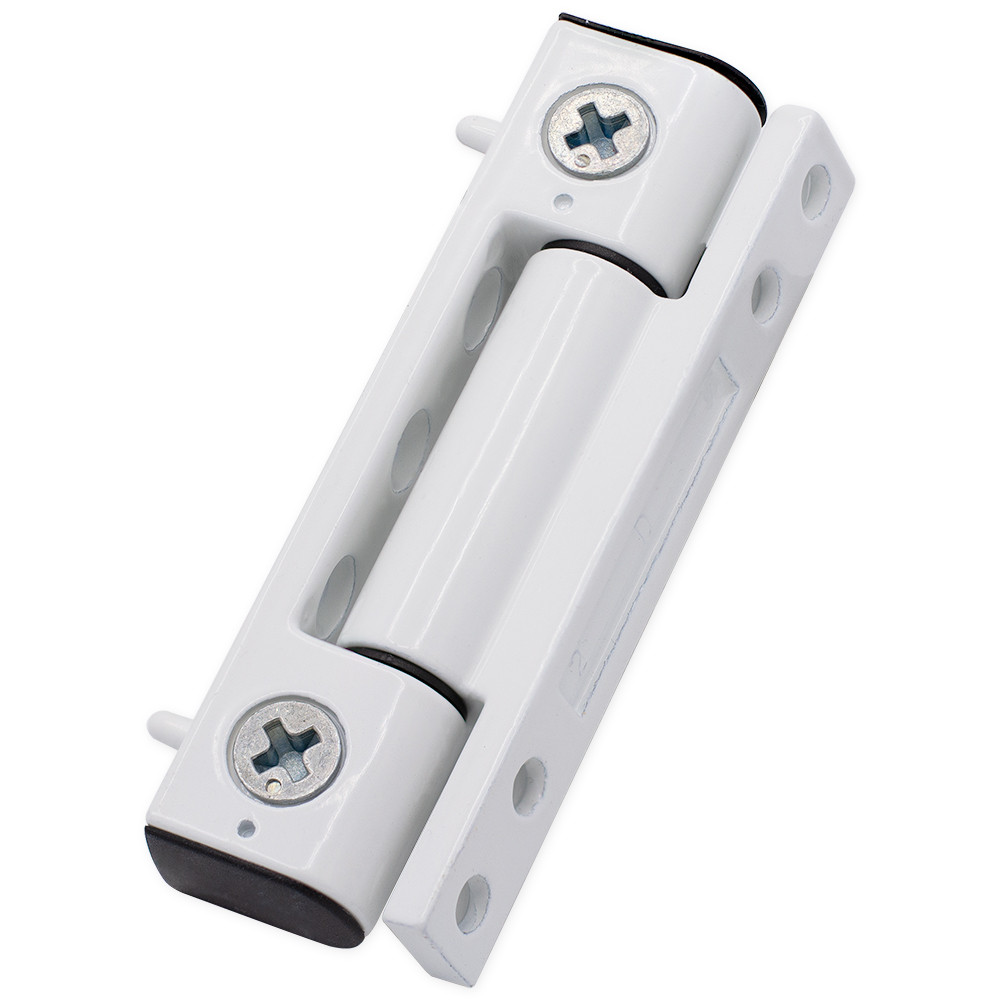

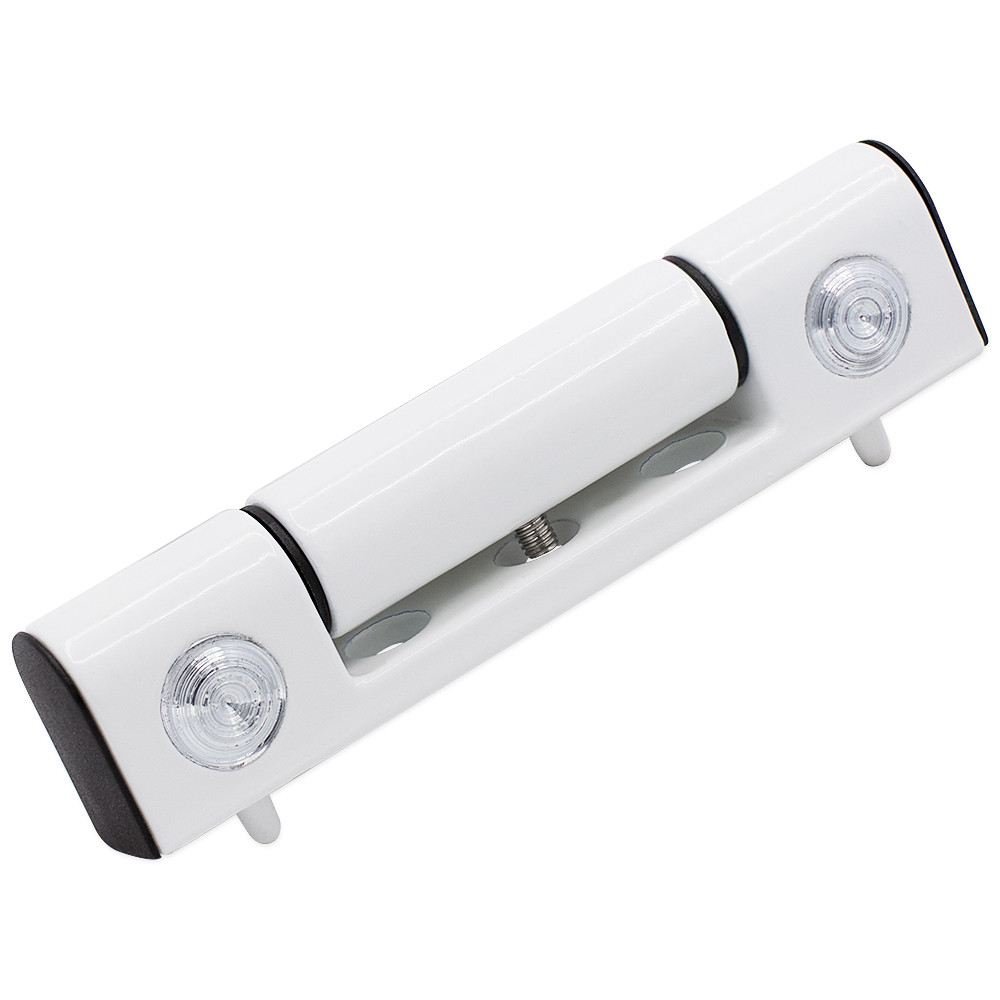

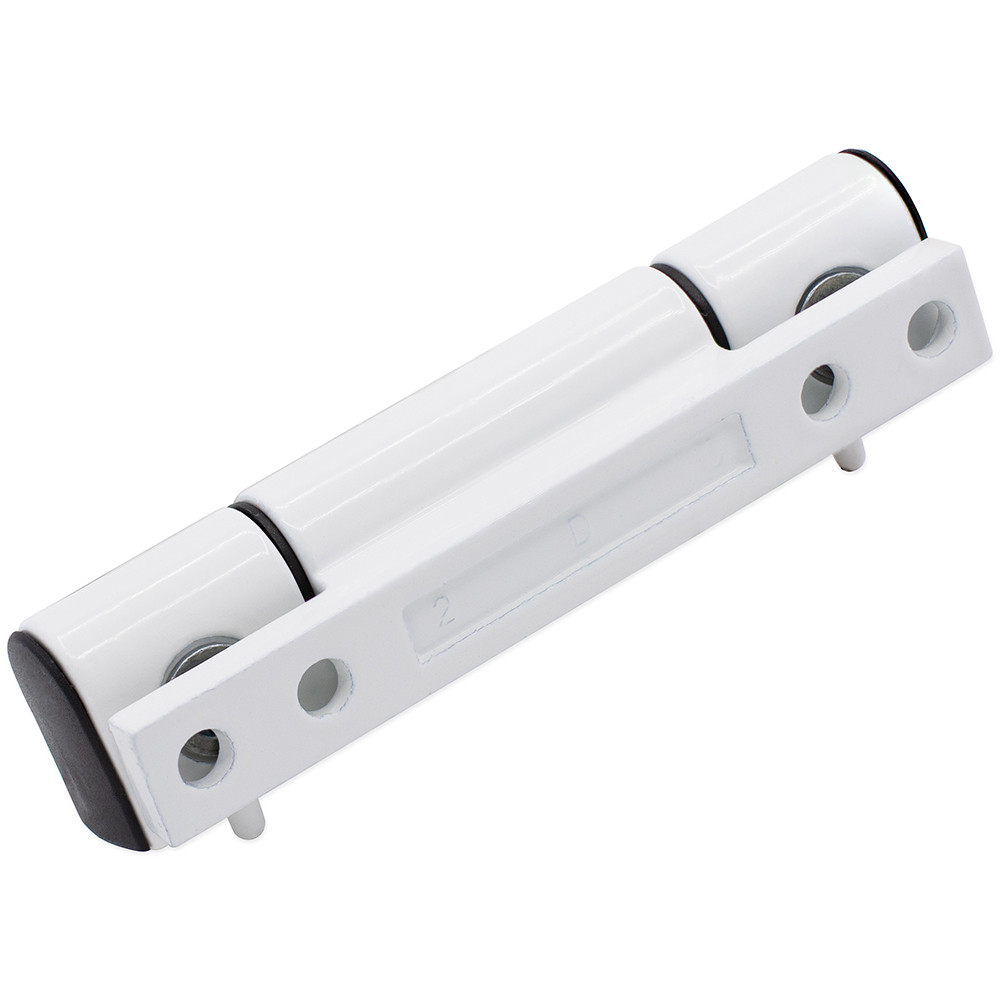

The Yale Neon Paddock adjustable butt hinge is easy to adjust and can hold 80kg per hinge. They are fitted with a security grub screw to prevent the removal of the pin.

It is fully adjustable with a 4mm range of horizontal adjustment (without affecting compression) which is possible without having to remove the door. To adjust, you simply open the door to a 90° angle and rotate the two adjuster cams on the hinge until you reach your desired adjustment. Before you finish adjusting your hinge, make sure the hinge marked points are aligned correctly.

Information

Tested to 175,000 cycles on endurance at 80kg per single hinge
Security hinge pin with a concealed grub screw to prevent removal
Self lubricating Nylon brushes
4mm linear adjustment
Simple screwdriver adjustment
Can adjust without removing the door
Available in Flat or Angled options: See measurement diagram for more information

Technical

A full technical diagram is included in the image gallery.
