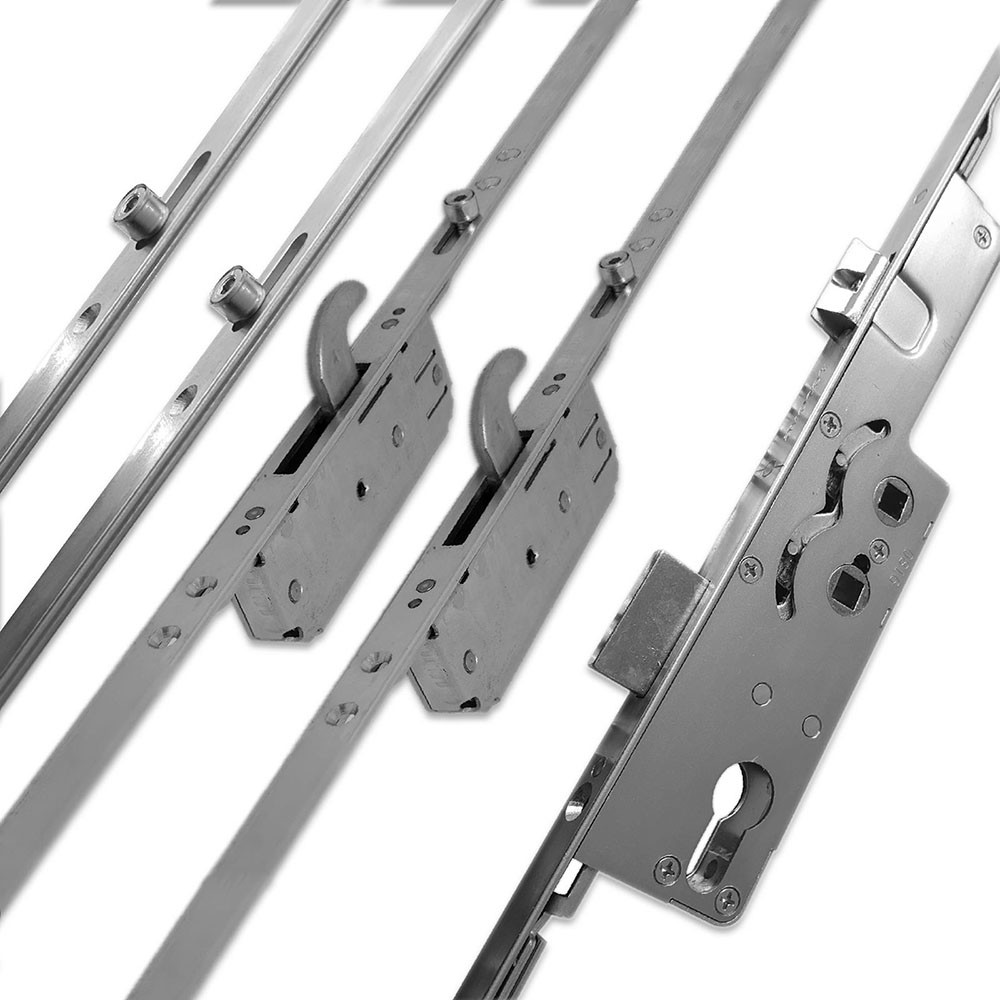

Avocet 2 Hook 4 Roller Multipoint Door Lock Mechanism 35mm Trivalent

£61.46
(Inc. VAT)
£51.22
(Ex. VAT)
(No reviews yet) Write a Review
SKU:
AVO2HOOK4ROLL
UPC:
7426827274524

Avocet 2 Hook 4 Roller Multipoint Door Lock Trivalent

A genuine door lock made by Avocet Hardware, a window and door hardware industry leader. It's suitable for both left and right handed doors as the latch is reversible and is designed to be used with a lever / lever or lever / pad door handle.

Information

  • Locking points: 2 Hooks & 4 Roller cams
  • Backset: 35mm
  • PZ Centres: 92mm / 62mm
  • Face plate width: 16mm
  • Suitable for lever/lever and lever/pad operations
  • Reversible centre latch to suit left and right handed doors

What to check before you order

  • The two most important measurements are the backset and PZ centres (centre of spindle hole to centre of key hole). These two measurements need to match up to ensure the lock lines up with the holes routed in the face of your door for the door handle and euro cylinder.
  • The height of the lock in the technical diagram is it's full uncut height. You will likely need to crop the ends of the lock down a little to suit your door.
  • This particular lock uses 2 hooks and 4 roller cams as the main locking points. We advise you check the distance between these rollers to ensure they match.

Technical

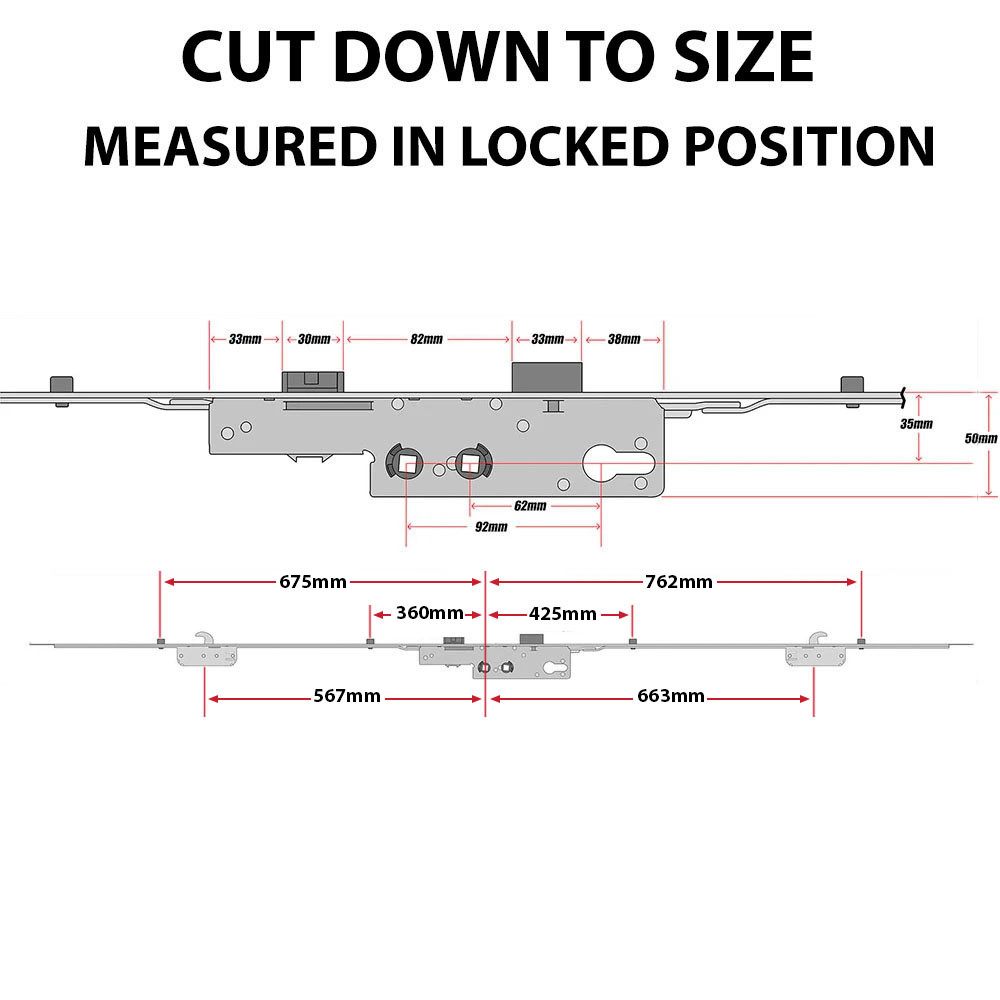

A full technical diagram is included in the image gallery.
