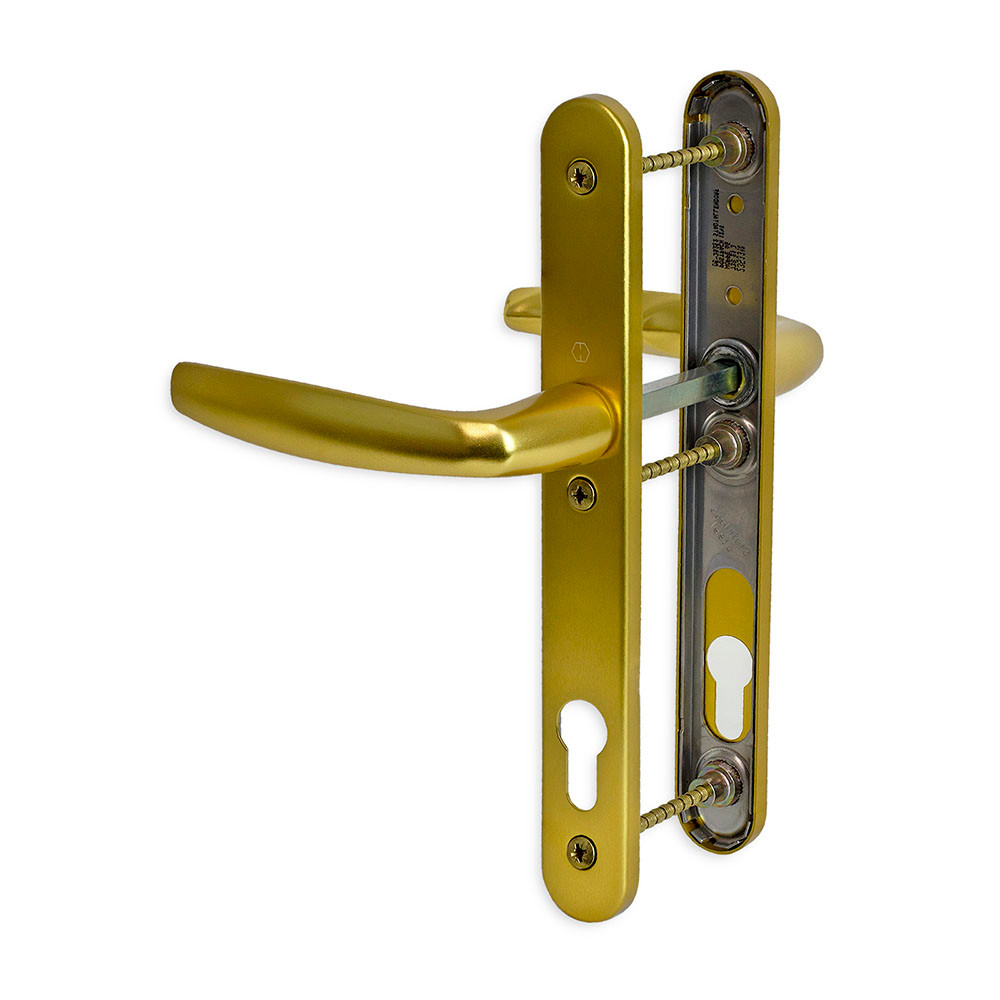

Hoppe Roto Atlanta Unsprung 3 Fixing Hole Door Handle

The Hoppe Roto Atlanta door handle comes with a unique 3 fixing hole design. It's a direct replacement to the Hoppe Roto uPVC door handles. This handle is unsprung and is fully reversible so it can be used on both left hand and right handed uPVC doors.

Hoppe Roto 3 Fixing Hole Door Handle Information

• Universal handles - designed to work for both left and right hand

• 3 fixing hole design

• Durable backplate - stainless steel chassis for maximum durability

• 92mm PZ - Common size for most door handles (See measuring guide)

Technical

A full technical diagram is included in the image gallery.

Handle Measuring Guide

Measurement 1

There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.

Measurement 2

The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram.

If the above two measurements match up then the door handle will fit and operate perfectly. All other measurements on the door handle are mainly aesthetics and won't affect fitting or operation if they're different.
