Description
Avocet Affinity Bastion 4 Hook Composite Multipoint Door Lock 45mm
A genuine Avocet Affinity Bastion replacement multipoint door lock designed for composite and timber doors. Featuring four opposing hook bolts and a centre latch and deadbolt, this mechanism provides secure multipoint locking. It has a reversible centre latch for left or right handed doors and is suitable for compatible lever/lever or lever/pad door handle arrangements.
Information
- Four opposing hooks: Two pairs of hook bolts engage in opposite directions to provide secure locking along the door.
- Composite and timber doors: Designed for use with compatible composite and timber door systems.
- Reversible latch: Sprung centre latch can be reversed to suit left or right handed doors.
- Handle operation: Twin spindle gearbox supports compatible lever/lever and lever/pad handle arrangements.
- Replacement mechanism: Suitable for replacing a matching Avocet Affinity Bastion lock with the same gearbox and locking-point positions.
Technical

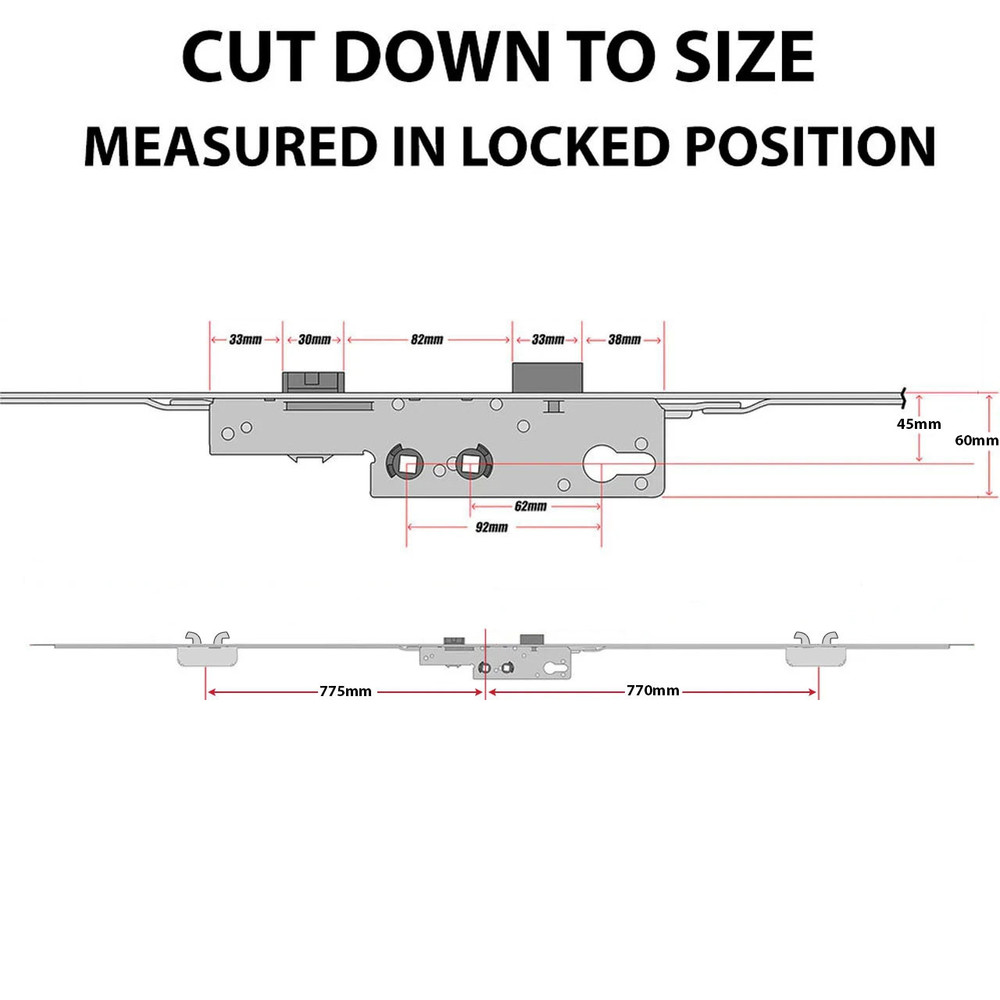

A technical diagram is included in the image gallery, showing the centre gearbox dimensions and the positions of the four hook bolts.
Specifications
| Backset | 45 mm |
|---|---|
| Handle centres (PZ) | 92 mm / 62 mm |
| Locking points | 4 opposing hooks, plus centre deadbolt |
| Handing / latch reversibility | Reversible latch — left or right handed |
| Faceplate width | 20 mm radius faceplate |
| Spindle arrangement | Twin spindle |
