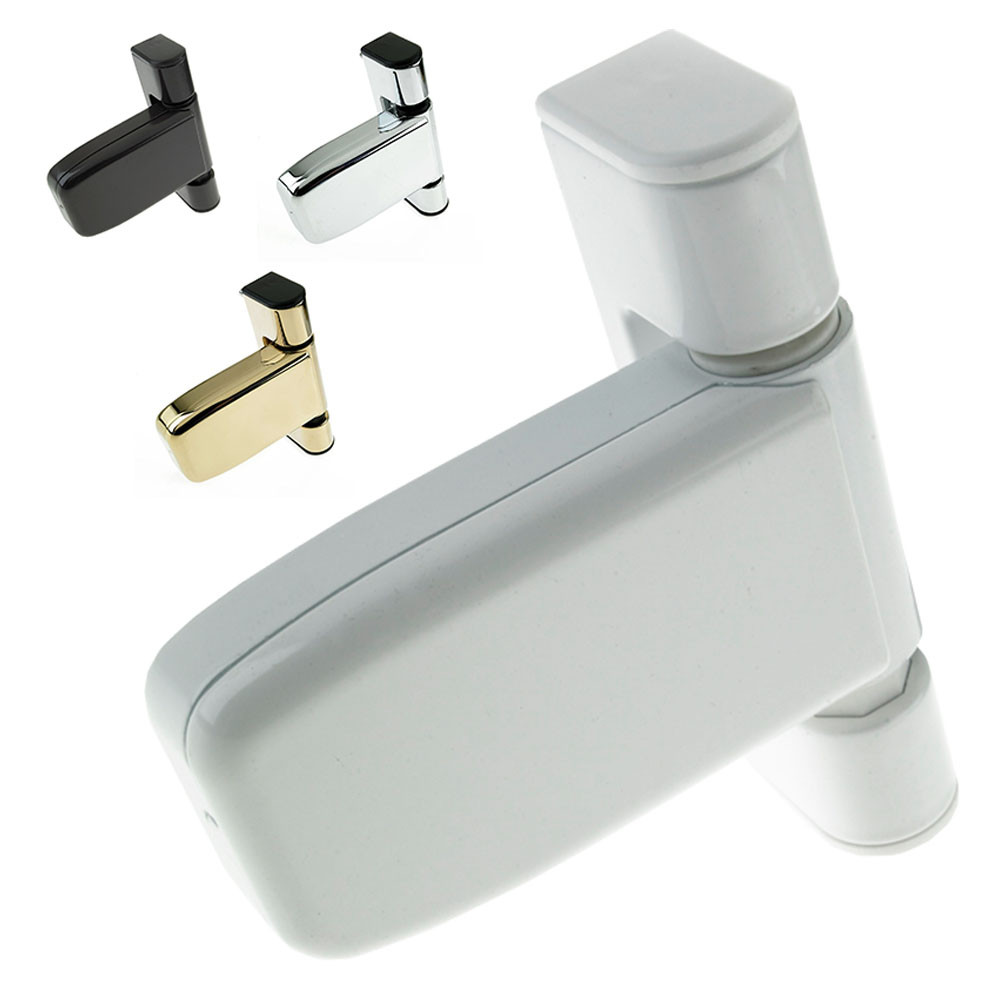

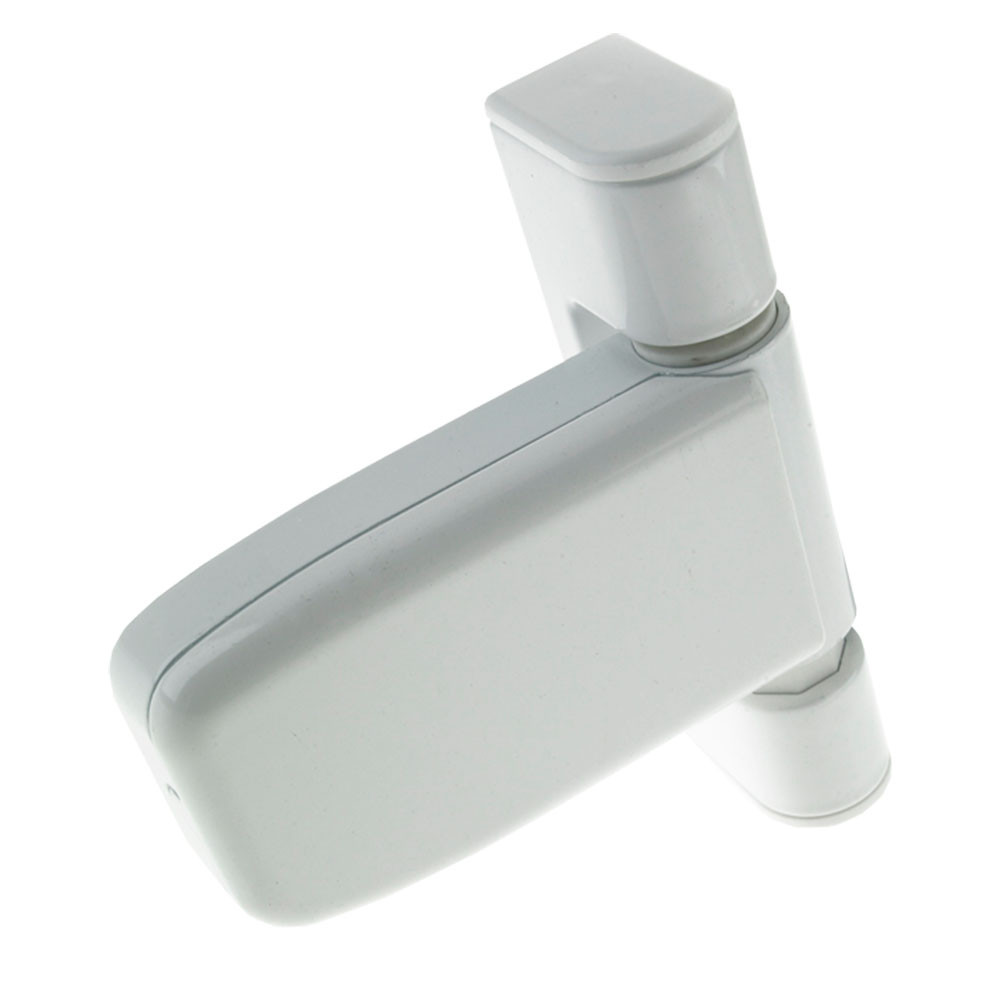

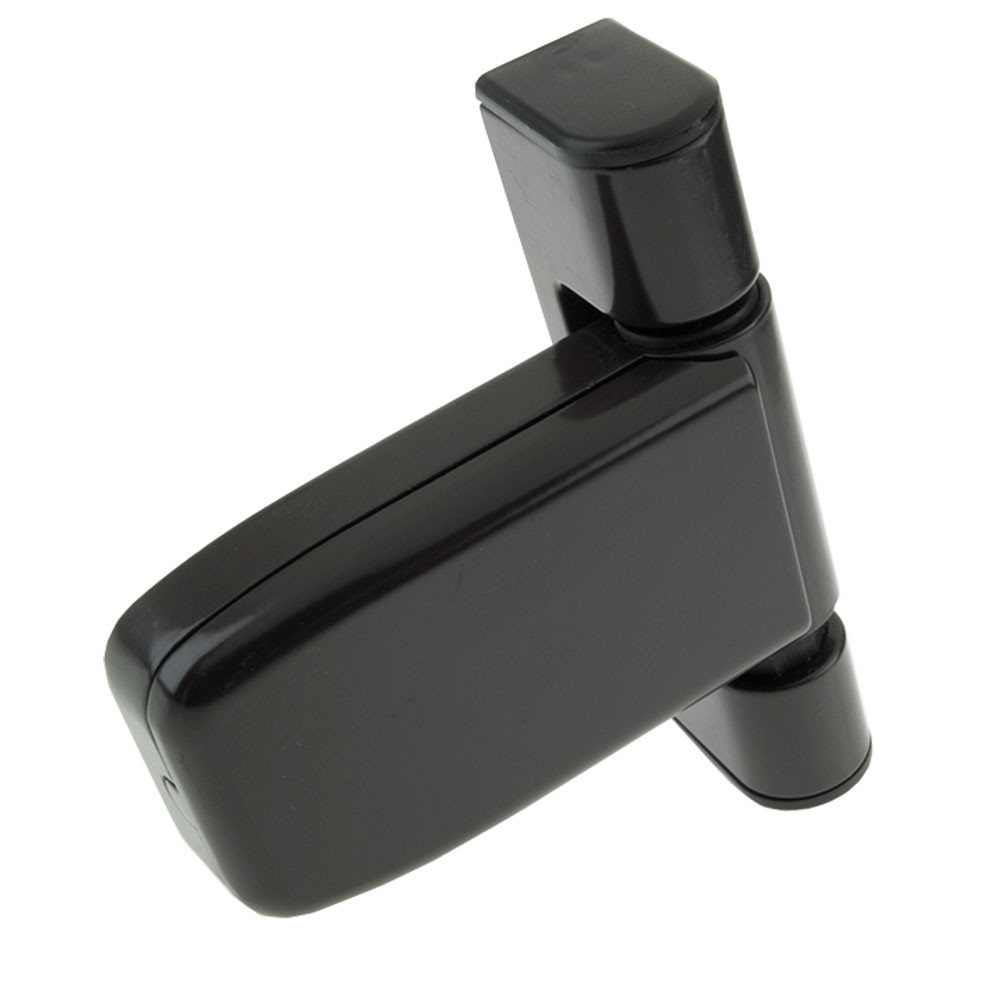

Yale Paddock Neon 3D uPVC Door Flag Hinge

This Yale flag hinge is a popular 'T' shape that has great adjustment and is PAS 24 compliant. The Paddock Yale Neon 3D flag hinge combines easy adjustment with superb mechanical strength. Their aesthetically pleasing design, incorporates a modern touch with classical lines, complementing all modern PVC doors.

They can be adjusted in situ on the door and will bear 100kg in weight on each hinge.

Information

• 3D adjustable T flag hinge; easy adjustment with door in situ
• Lateral adjustment +5mm and -5mm, Vertical adjustment +5mm and -5mm Compression adjustment +1mm and - 1mm
• Suitable for most PVC profiles
• 100kg weight bearing per hinge
• PAS24 compliant Sheer force 6.0kn
• Supplied with 2 and 4mm packers for accurate profile relation
• Security cover plate for external doors as standard
• Suitable for profile upstands from 14 to 20mm
• Corrosion resistance to EN1670:2007 Grade 4
• Tested to a minimum order 100,000 cycle operational lifespan
• Suitable for profile upstands from 14 to 20mm.
