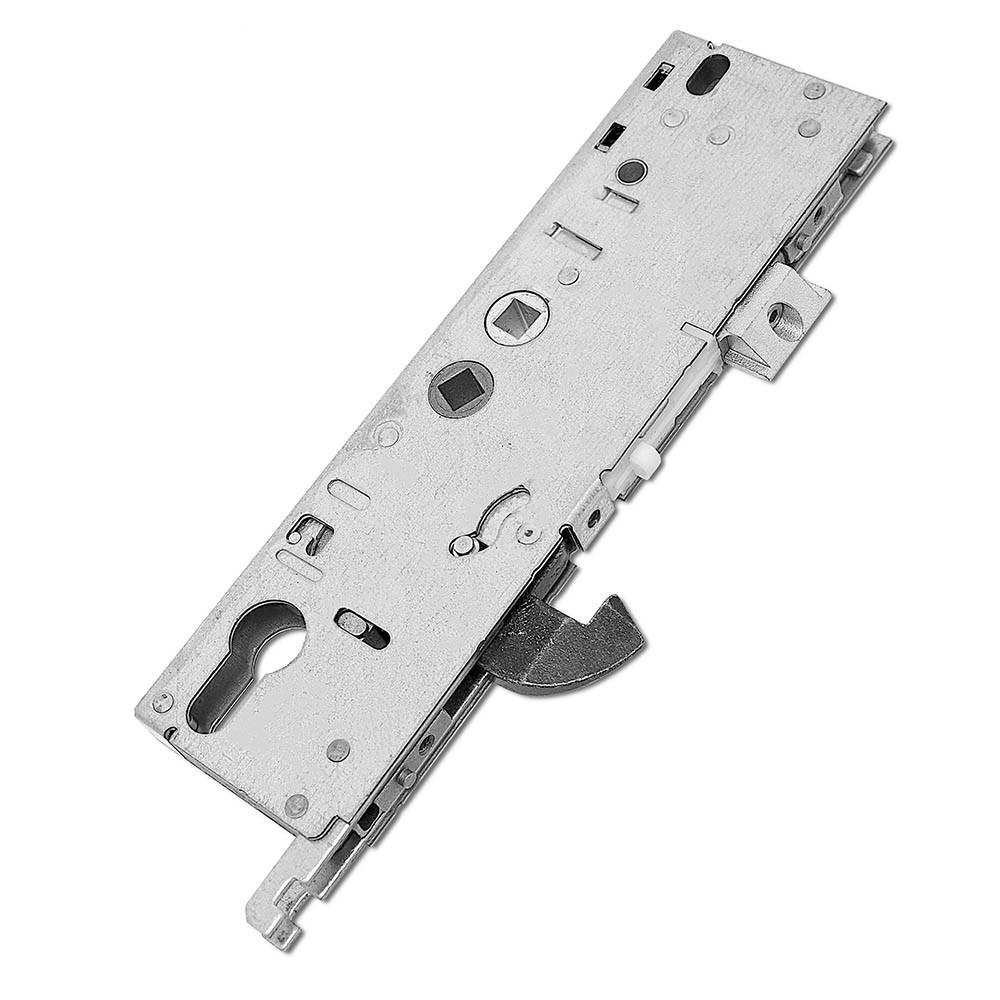

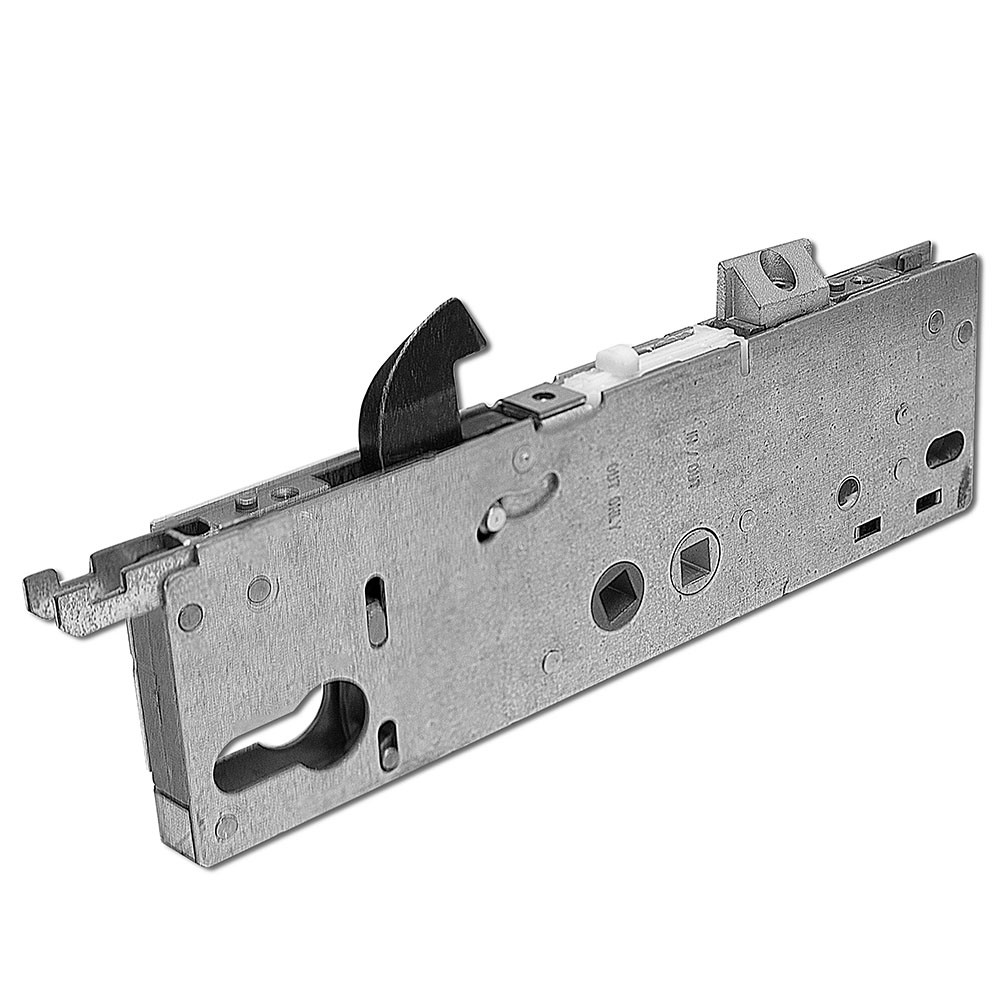

Yale Asgard Replacement Door Lock Gearbox

A replacement centre case gearbox for the Yale Asgard multipoint door lock mechanism. If you're having problems with your door lock, the gearbox is almost always the problem and changing it is as simple as removing a few screws.

Yale Asgard 45mm Replacement Door Lock Gearbox Centre Case Information

Important Measurements: 45mm backset & 92PZ centres

This is the mechanism inside the door that is operated by the handle

Most likely to be the problem when a lock fails

Reversible latch for left or right handed doors

Fitting Advice

Gearbox is easily reattached to the locking strip via three star head screws.

Technical

A full technical diagram is included in the image gallery.
