Description

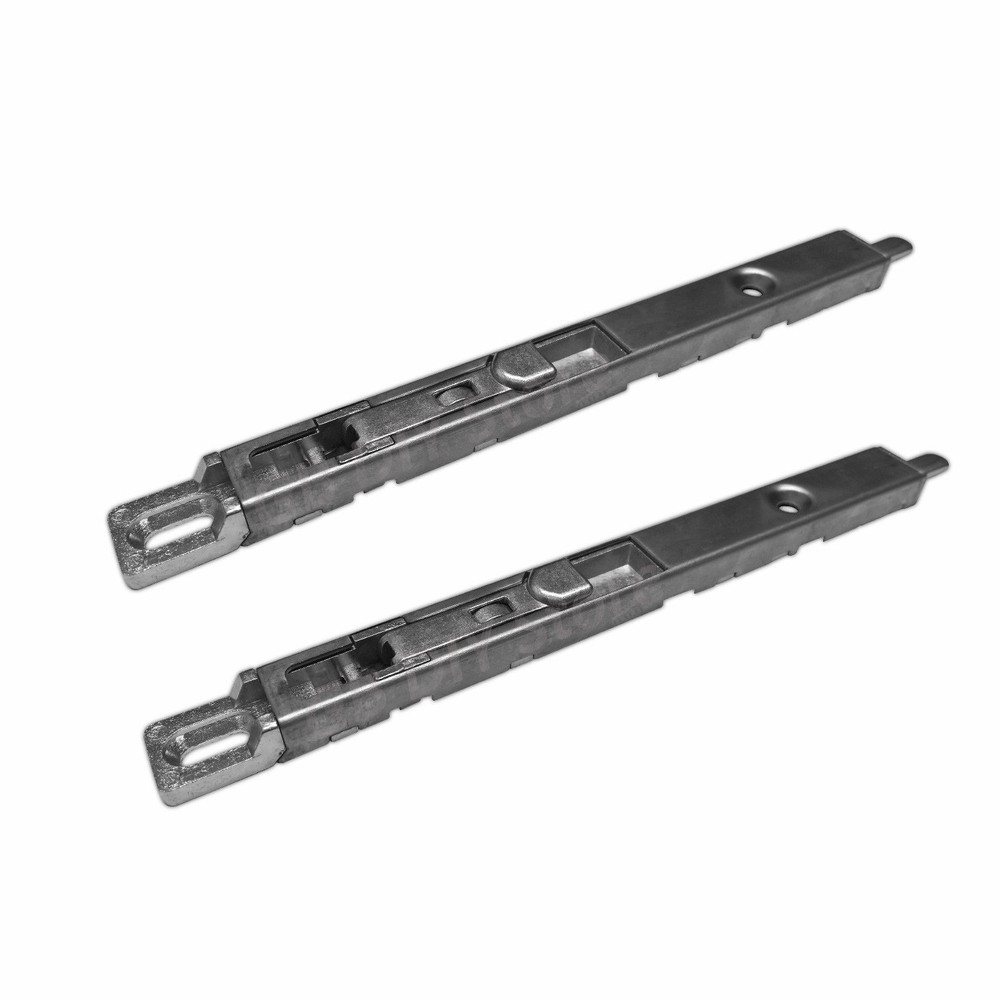

Pair of Avocet Universal uPVC French Door Finger Operated Shoot Bolt Lock
These finger shootbolt locks are designed for use the slave door on a pair of uPVC french doors. The slave door being the one that opens second to the main one. These shootbolts are universal and will fit in to the eurogroove of most uPVC french doors and should be fitted to both top and bottom of the slave door.
Universal Patio French Door Finger Bolt Lock Information
- Length - 175mm (191mm including bolt protrusion)
- Width - 16mm
- Bolt protrusion - 16mm
- Distance between screw holes 130mm
- Screws included
Technical

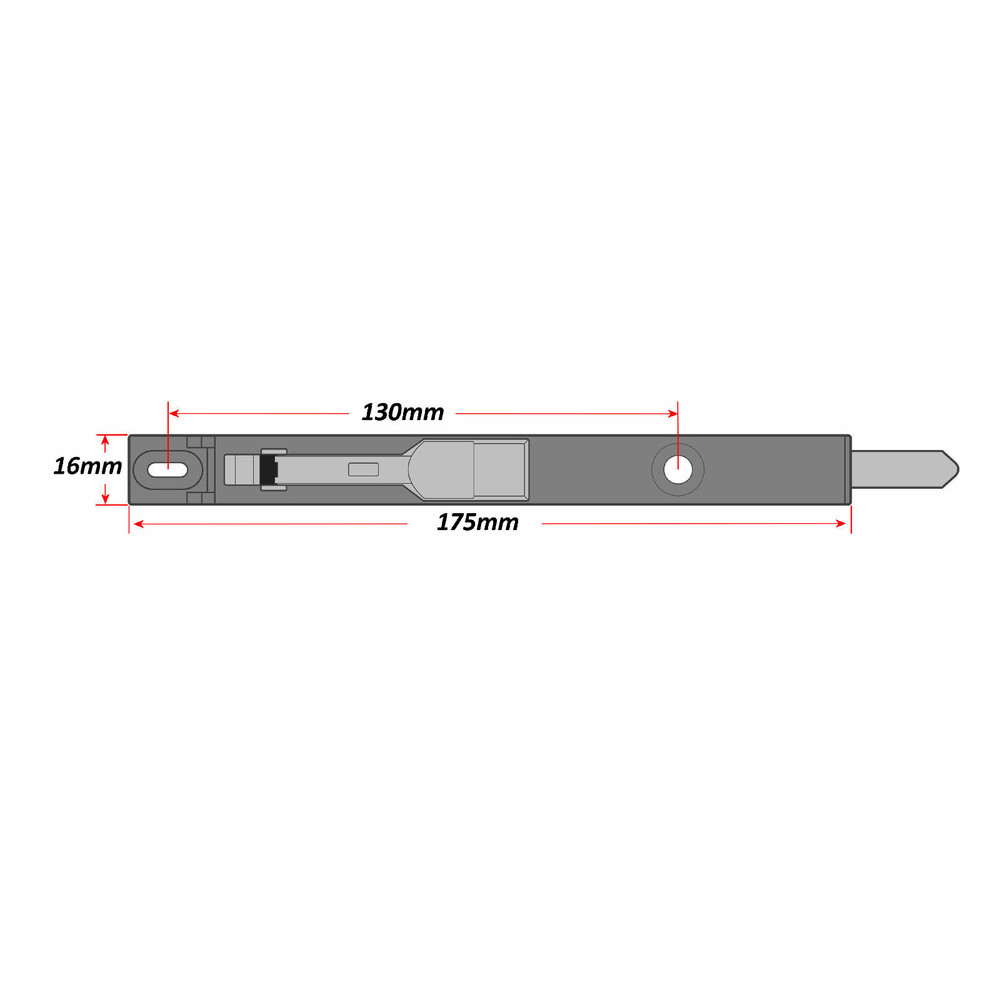

A full technical diagram is included in the image gallery.
