Single Avocet Universal uPVC French Door Finger Operated Shoot Bolt Lock

These finger bolts for uPVC French Doors also known as shootbolt locks are designed for use of the slave door on a pair of uPVC french doors. The slave door being the one that opens second to the main one. Our shootbolts are universal and will fit in to the eurogroove of most uPVC french doors and should be fitted to both top and bottom of the slave door.

Information

• Length - 175mm (191mm including bolt protrusion)

• Width - 16mm

• Bolt protrusion - 16mm

• Distance between screw holes 130mm

Technical

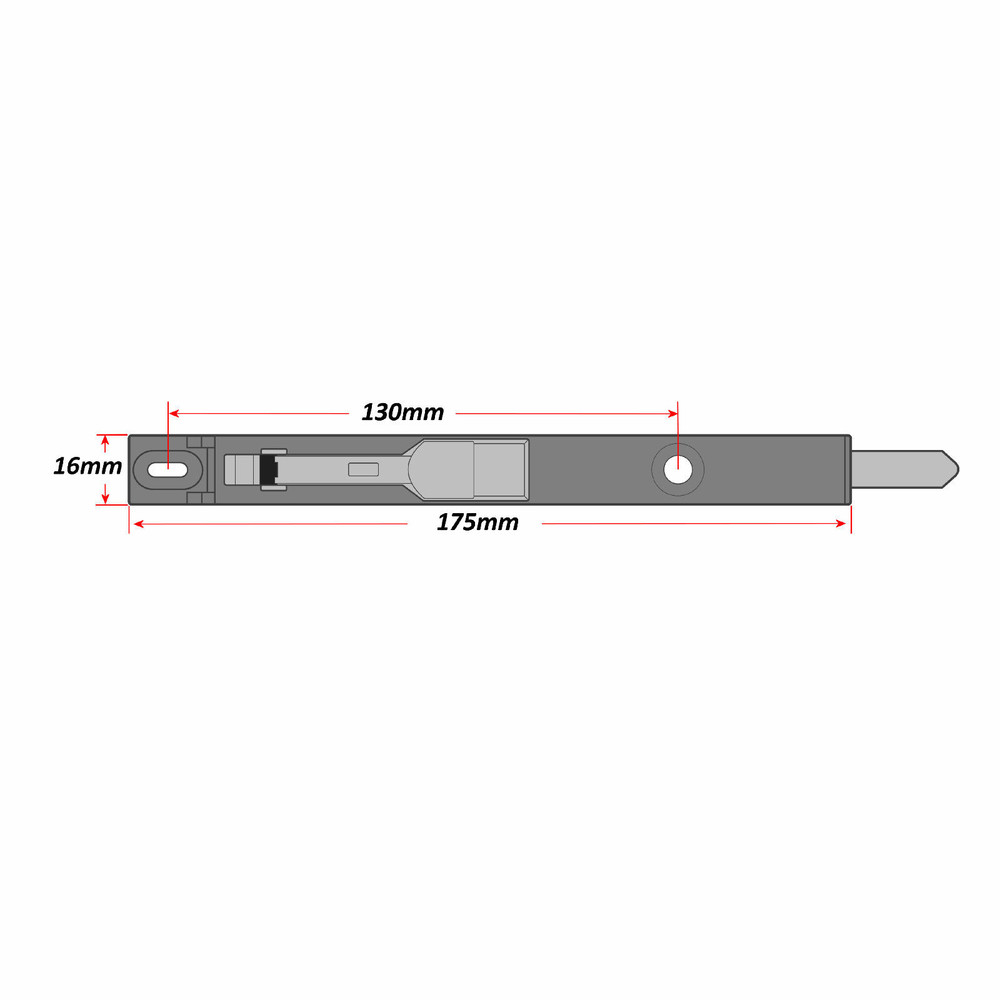

A full technical diagram is included in the image gallery.
