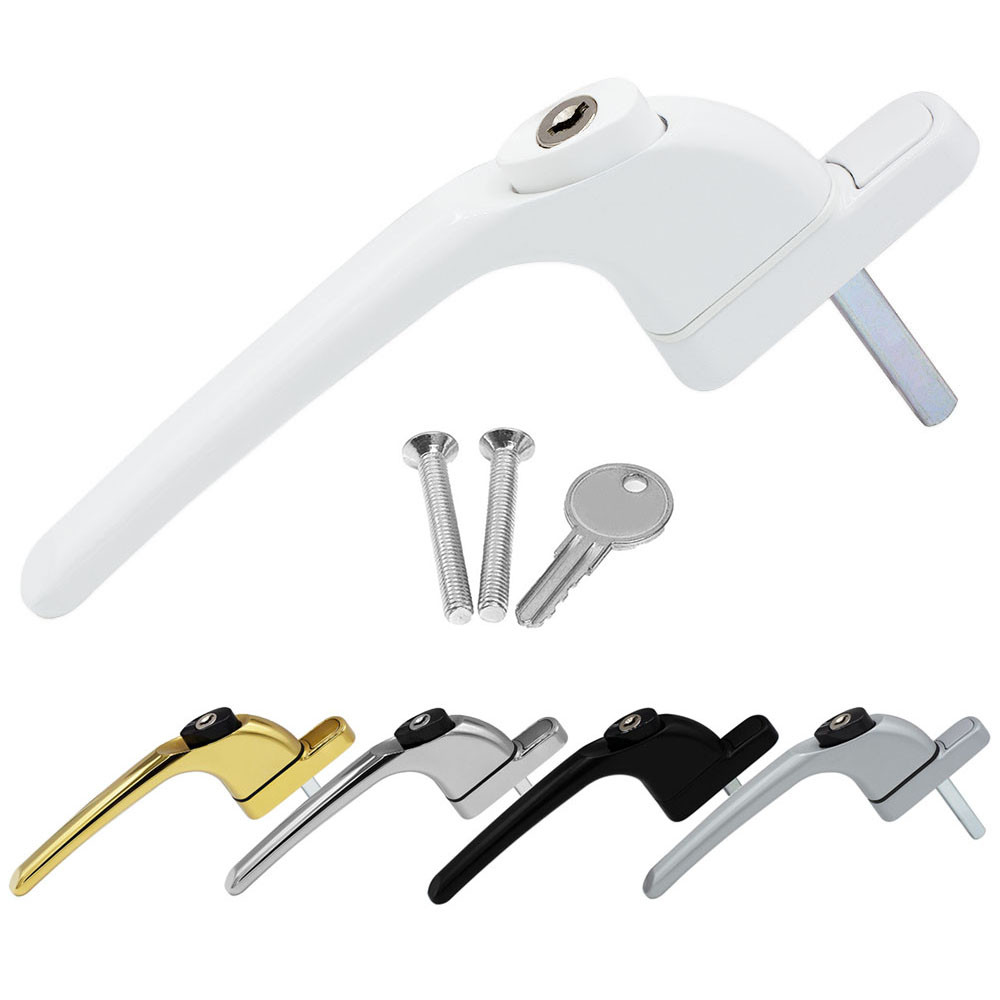

The Shield Hardware inline epsag window handle is the perfect replacement or upgrade for any windows using an espag or shootbolt locking mechanism. The handle is manufactured with both lasting durability and ergonomics in mind.

Our upvc window handle is universal and suitable for any window which uses an espag locking mechanism. The handle is non-handed which means it will work on both left and right hand openings. The only measurement required to ensure correct operation is the spindle length. Please refer to the measuring guide below.

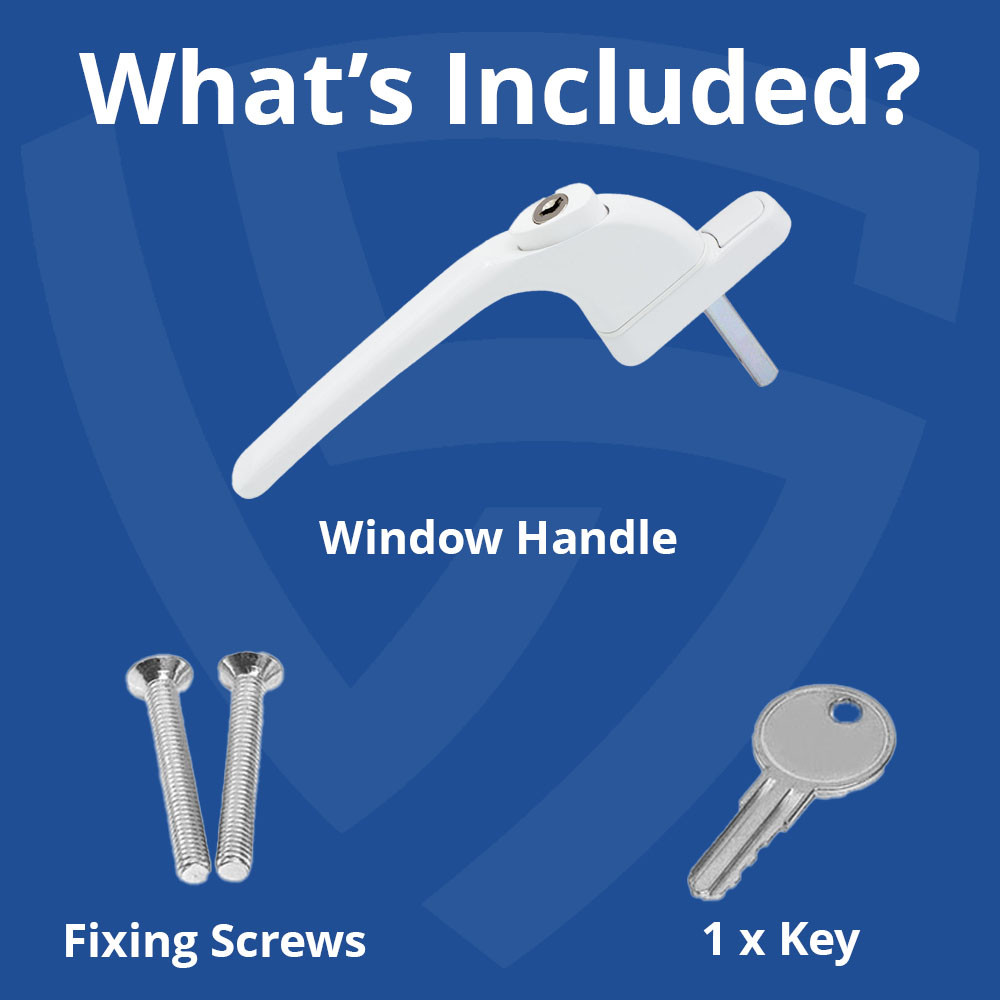

Each window handle comes with a key, two fixing screws and a screw cover cap. It also includes blanking caps to block the keyhole so that the handle will remain locked or unlocked for child safety or fire escape requirements.

Information

• Available in 10mm, 15mm, 20mm, 30mm and 40mm spindle sizes
• Comes in a range of high quality finishes
• Non-handed (Suitable for left and right handed windows)
• 43mm screw hole centres (Industry standard)
• Includes 2 fixing screws
• Includes 1 key
• Includes screw cover cap
• Tested to 20,000 cycles

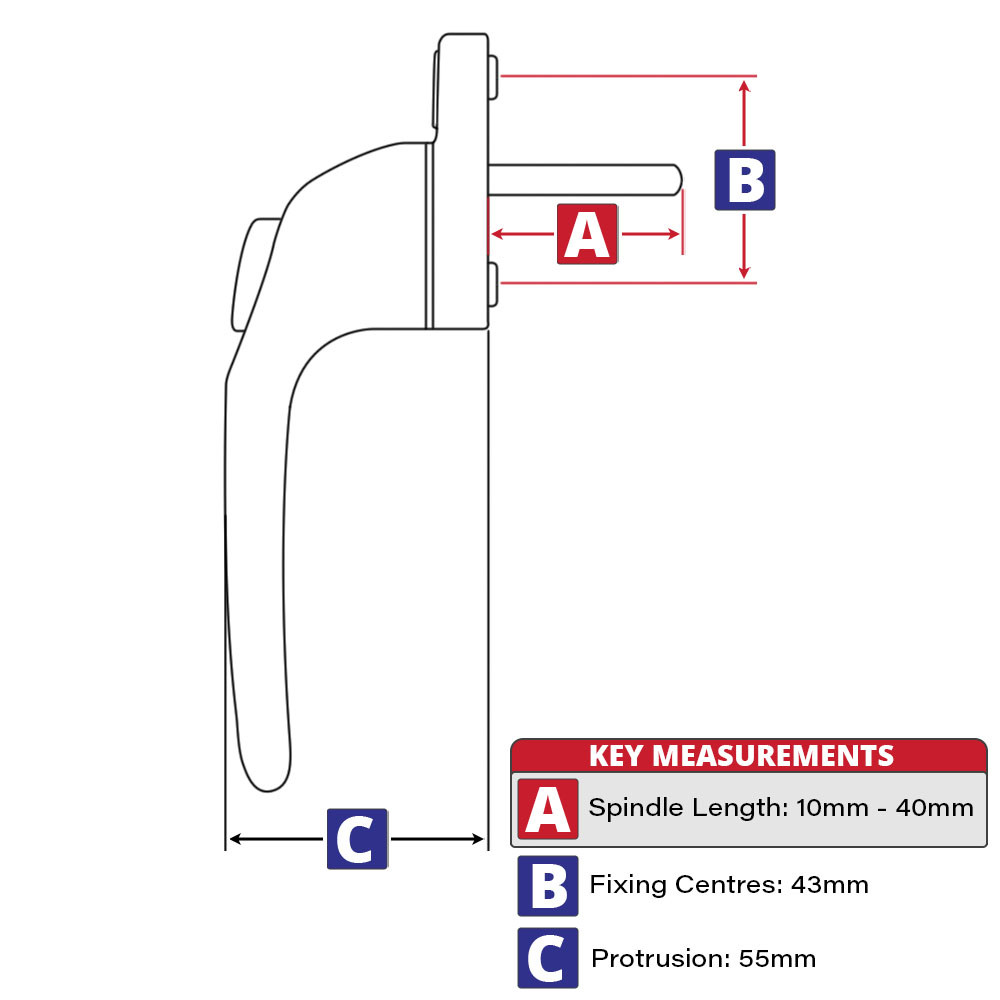

Measuring your handle

Screw Hole Fixing Centres:
All epsag window handles use the same 43mm fixing centres.
Handing:
This window handle is inline, which means it’s non-handed and will work on both left and right handed windows.
Spindle Length:
Remove the two screws fixing the handle to the window and measure from the base of the handle to the tip of the spindle.
Spindle width:
The Shield Hardware window handle comes with a 7mm spindle.
