Description
MACO Old Style 2 Hook 2 Roller Multipoint Door Lock 35mm
A genuine MACO Old Style replacement multipoint door lock featuring two hook bolts, two roller cams and a centre latch and deadbolt. Designed for compatible uPVC door systems, this mechanism features a single spindle gearbox and reversible centre latch for left or right handed doors.
Information
- Two hook bolts: Provide additional locking points along the door for secure multipoint locking.
- Two roller cams: Help provide compression against the door frame seals for a consistent door closure.
- Reversible latch: The centre latch can be reversed for use on left or right handed doors.
- Single spindle: Designed for compatible lever/lever door handle arrangements.
Technical

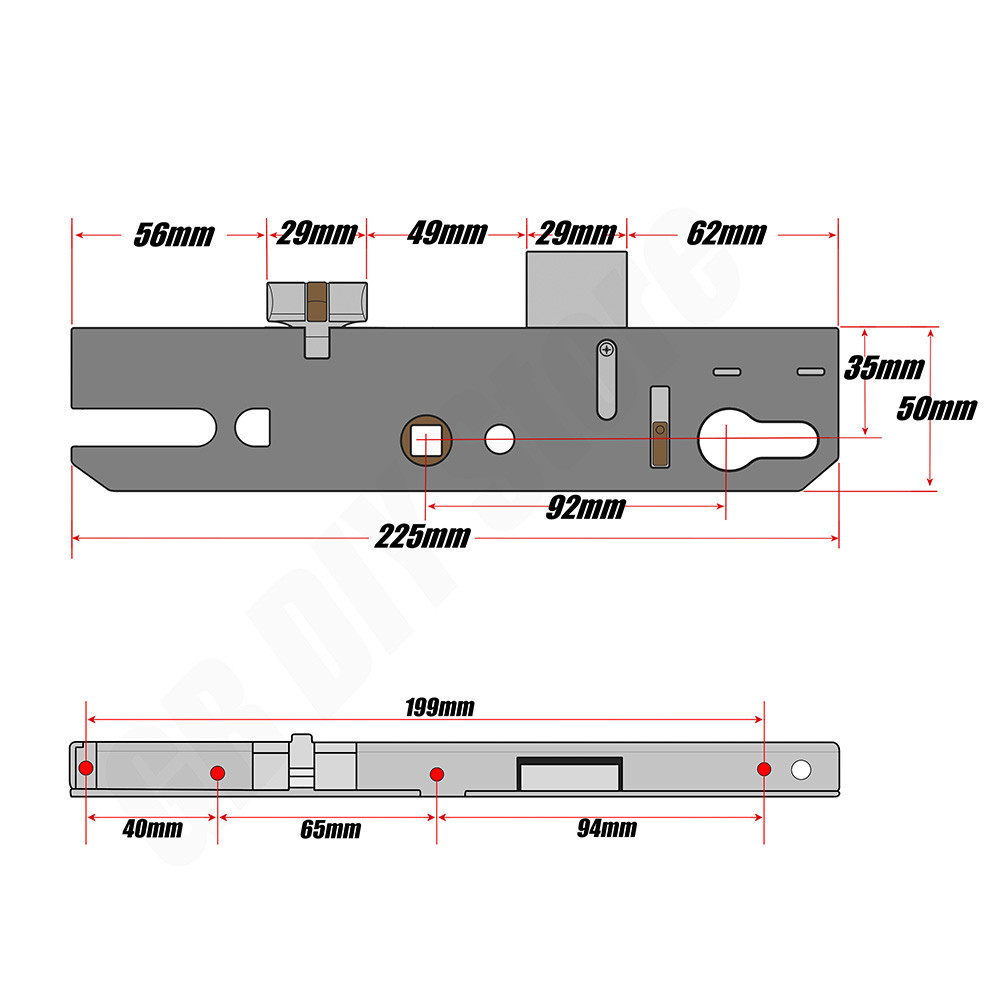

Refer to the product images for the centre gearbox dimensions and positions of the two hook bolts and two roller cams.
Specifications
| Backset | 35 mm |
|---|---|
| Handle centres (PZ) | 92 mm |
| Locking points | 2 hooks / 2 roller cams, plus centre deadbolt |
| Handing / latch reversibility | Reversible latch — left or right handed |
| Faceplate width | 16 mm |
| Spindle arrangement | Single spindle |
| Operation | Lift lever |
