Description

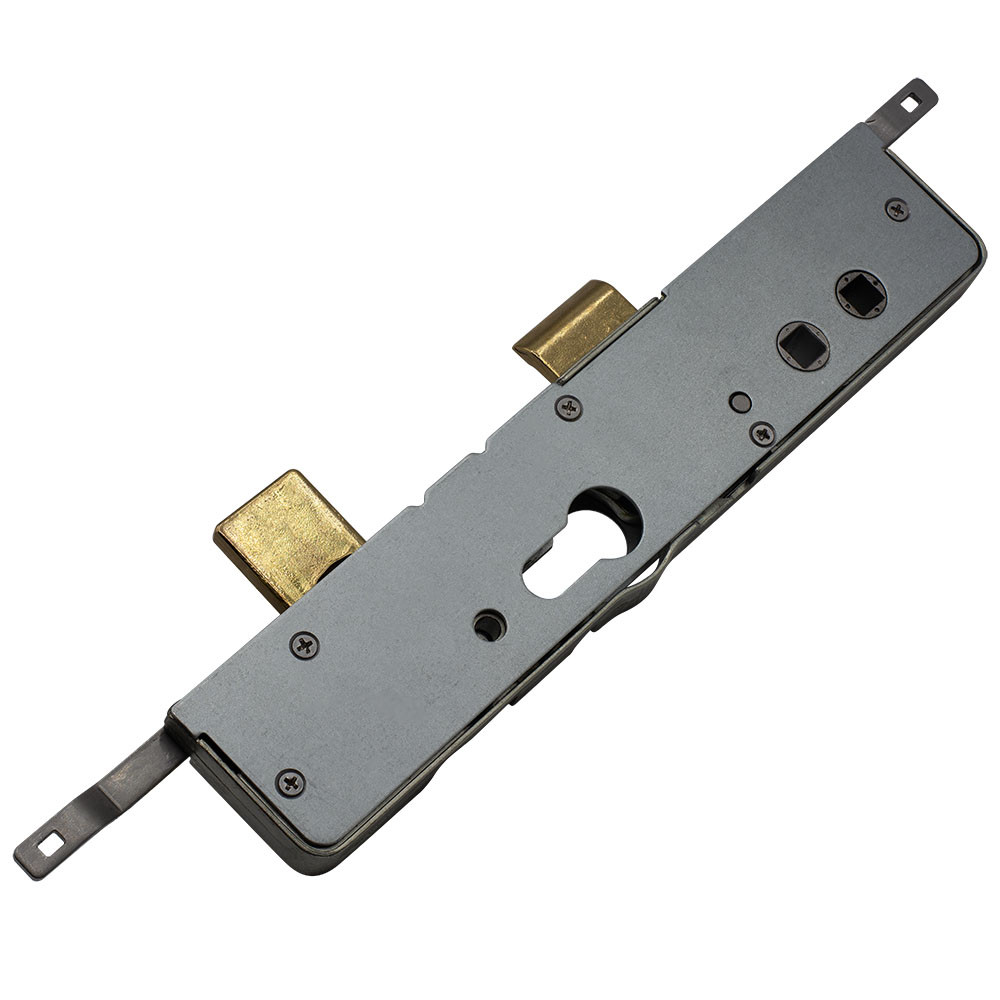

A replacement gearbox for the Cego Surelock door lock mechanism. This is a Genuine Cego gearbox and features a 35mm backset and PZ centres of 70mm and 92mm. The top spindle hole (92mm PZ) is specifically used for door handles with an offset lever/lever or lever/pad function. The offset handles 92mm / 70mm are now discontinued.
This Cego door lock can often be used to replace the discontinued Zenith Staybrite lock that featured a hook rather than the dead bolt shown. We have found that as long as the linkage points are the same it can be used. However, you may find the width of the top latch is wider and you may also need to file the existing hole in the face plate to enable the new latch to operate correctly.
A full technical diagram is included in the image gallery.

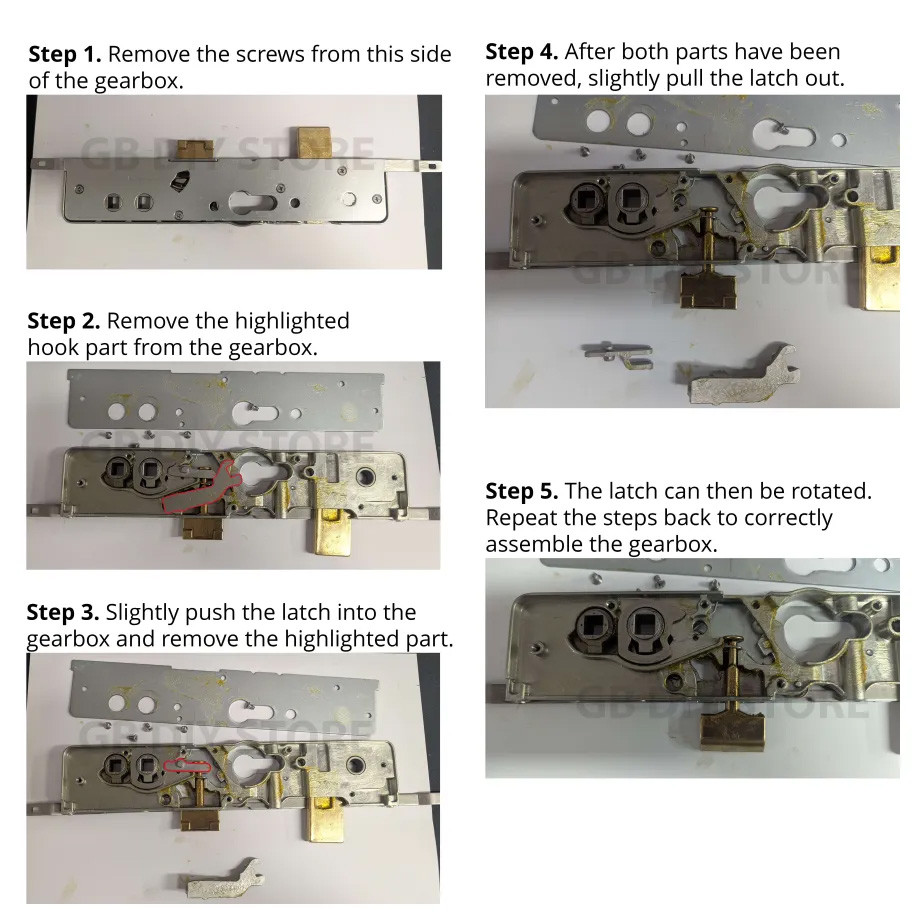

How to reverse the latch
We have an image guide in the image gallery or you can view our video here: Cego Gearbox - How To Reverse Latch Guide
View AllClose
This Cego door lock can often be used to replace the discontinued Zenith Staybrite lock that featured a hook rather than the dead bolt shown. We have found that as long as the linkage points are the same it can be used. However, you may find the width of the top latch is wider and you may also need to file the existing hole in the face plate to enable the new latch to operate correctly.
Information
- 35mm backset
- 70mm / 92mm PZ
- This is the mechanism inside the door that is operated by the handle
- Most likely to be the problem when a lock fails
- Reversible latch for left or right handed doors (video and image guide available)
A full technical diagram is included in the image gallery.
How to reverse the latch
We have an image guide in the image gallery or you can view our video here: Cego Gearbox - How To Reverse Latch Guide
