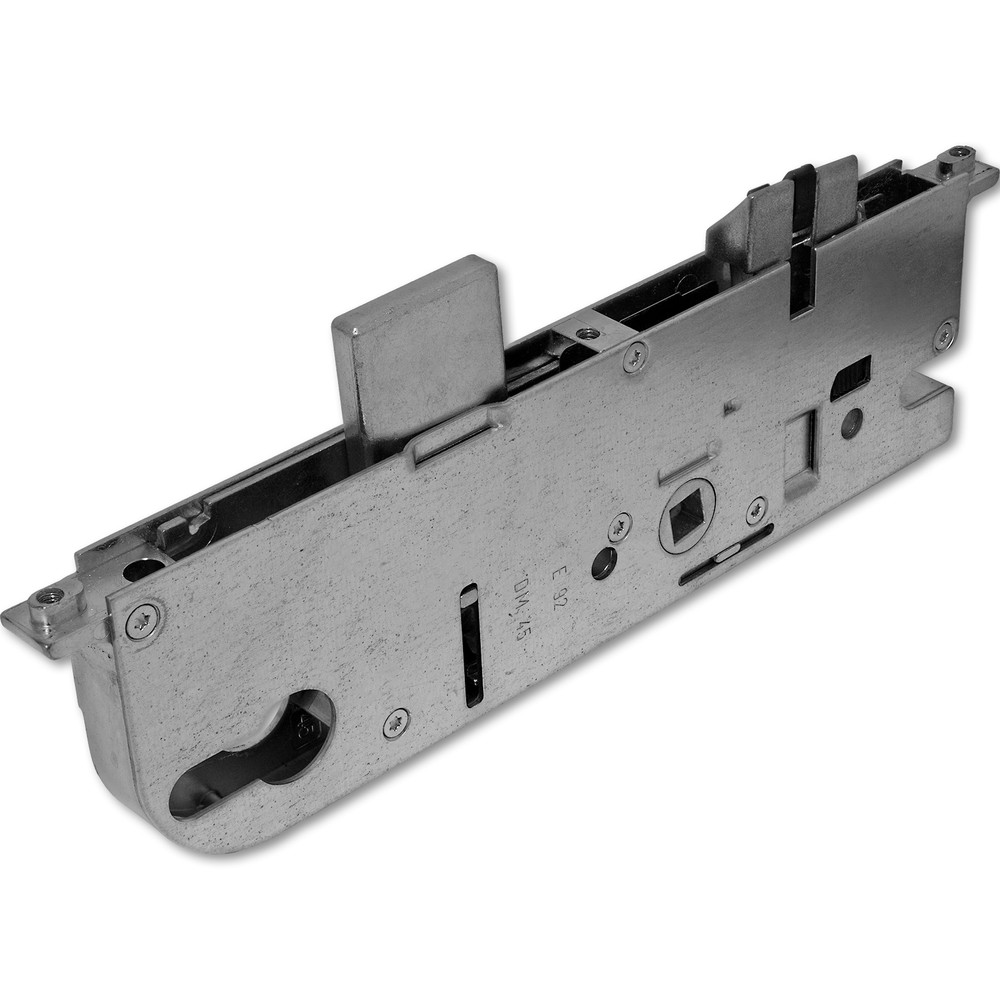

Maco CTS Door Lock

A replacement door lock gearbox centre case for the Maco CTS multipoint door lock mechanism. If you're having problems with your door lock the gearbox is almost always the problem. Replacing it with a Maco CTS Door Lock is as simple as removing a few screws.

Maco CTS Replacement Door Lock Gearbox Centre Case 45mm Information

• Important measurements: 45mm Backset / 92mm PZ Centres

• This is the mechanism inside the door that is operated by the handle.

• Most likely to be the problem when a lock fails.

• Reversible latch for left or right-handed doors

• Split spindle - for lever/lever and lever/pad operation

Technical

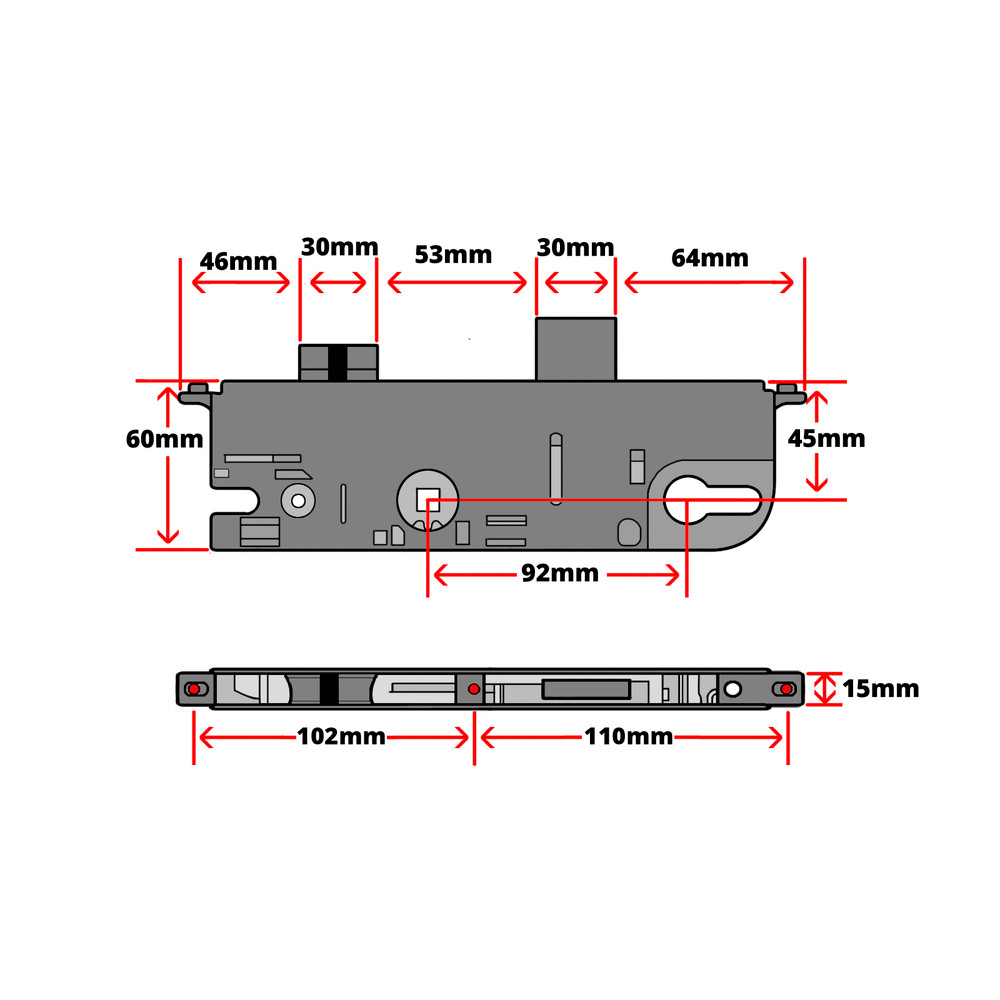

A full technical diagram is included in the image gallery.
