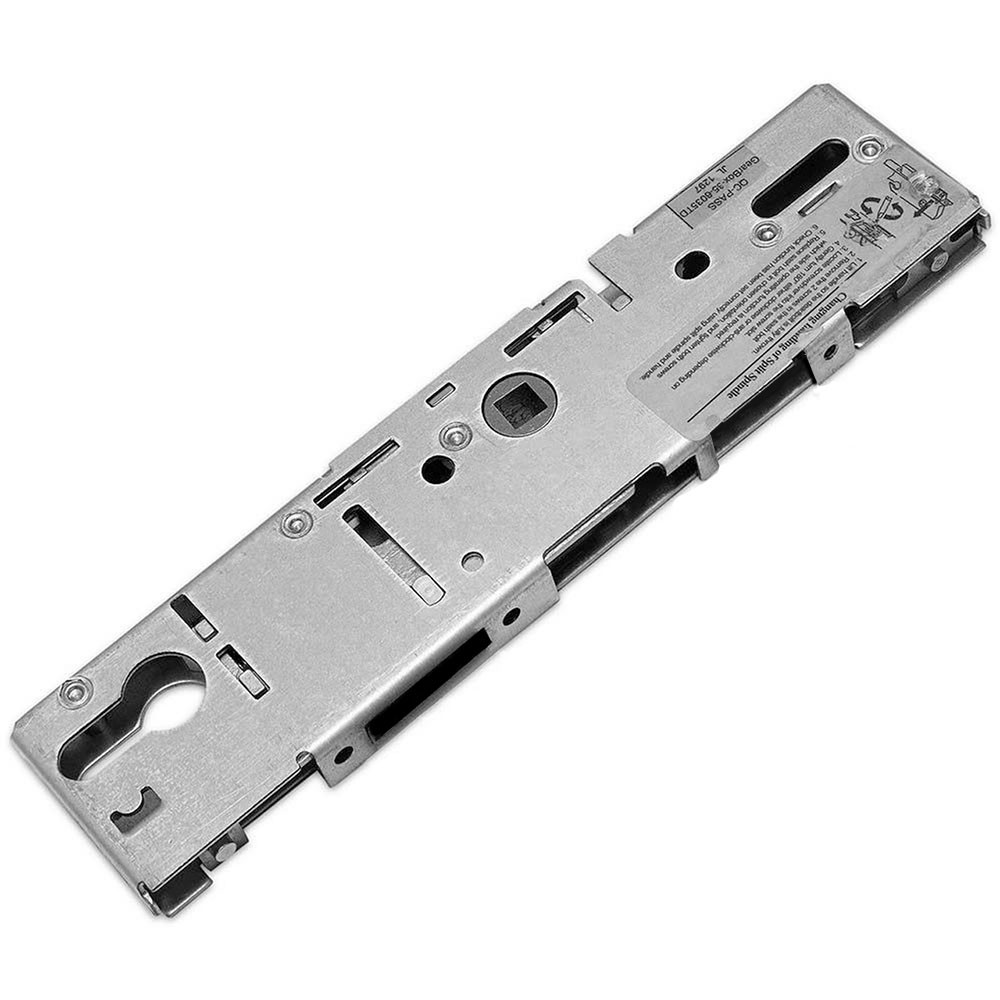

ERA Slave 35mm Door Lock Gearbox
A replacement centre case gearbox for the Era slave multipoint door lock mechanism. This gearbox is specifically for the slave door lock installed into the secondary door of your french doors. If you're having problems with your door lock, the gearbox is almost always the problem and replacing it is as simple as removing a few screws.
Information
- Important Measurement 35mm Backset / 92mm PZ Centres
- Slave gearbox
- No Latch
- No Deadbolt
- Single Spindle
Technical

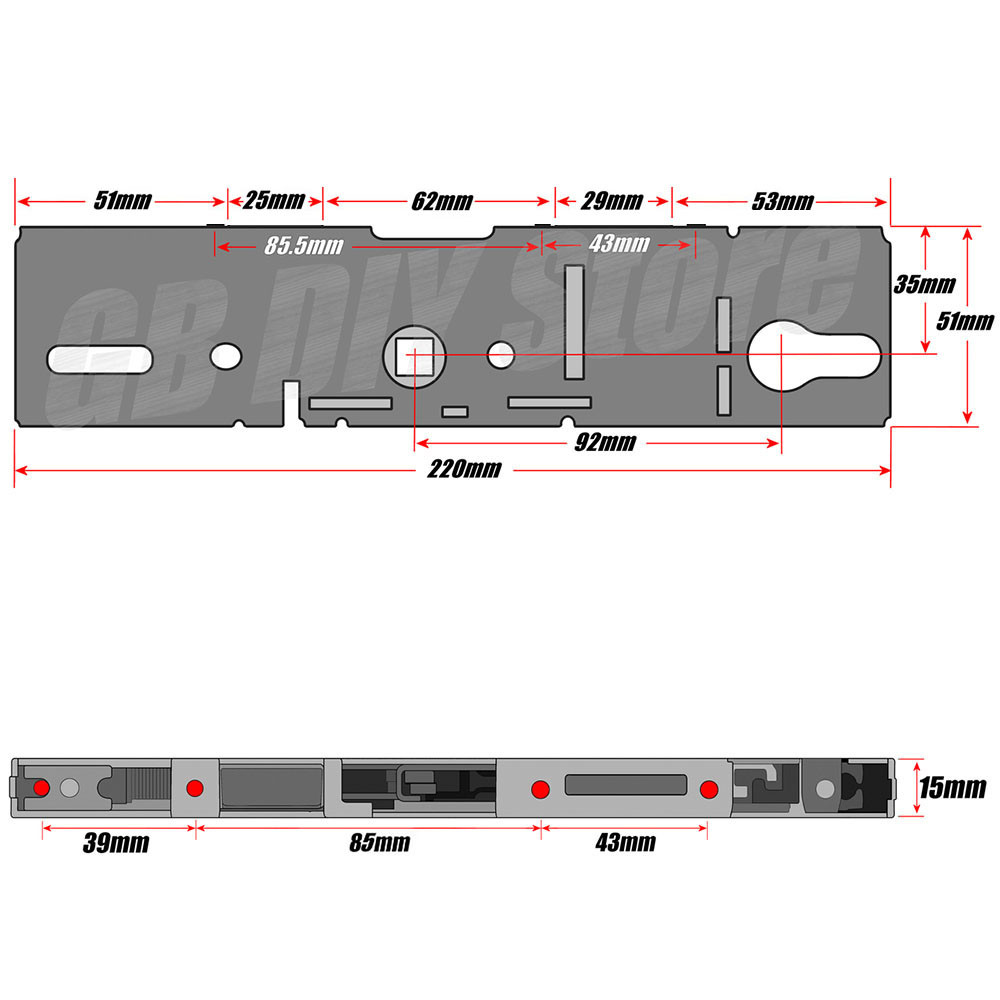

A full technical diagram is included in the image gallery.
