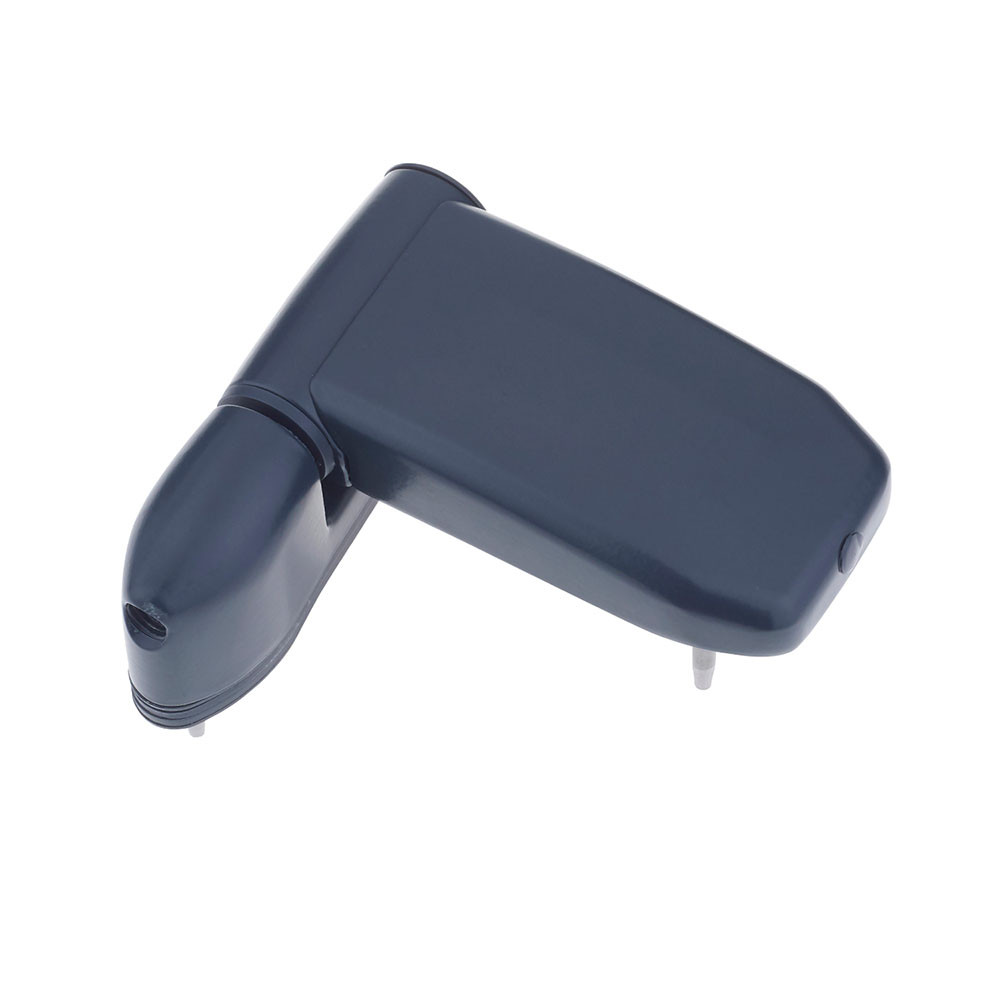

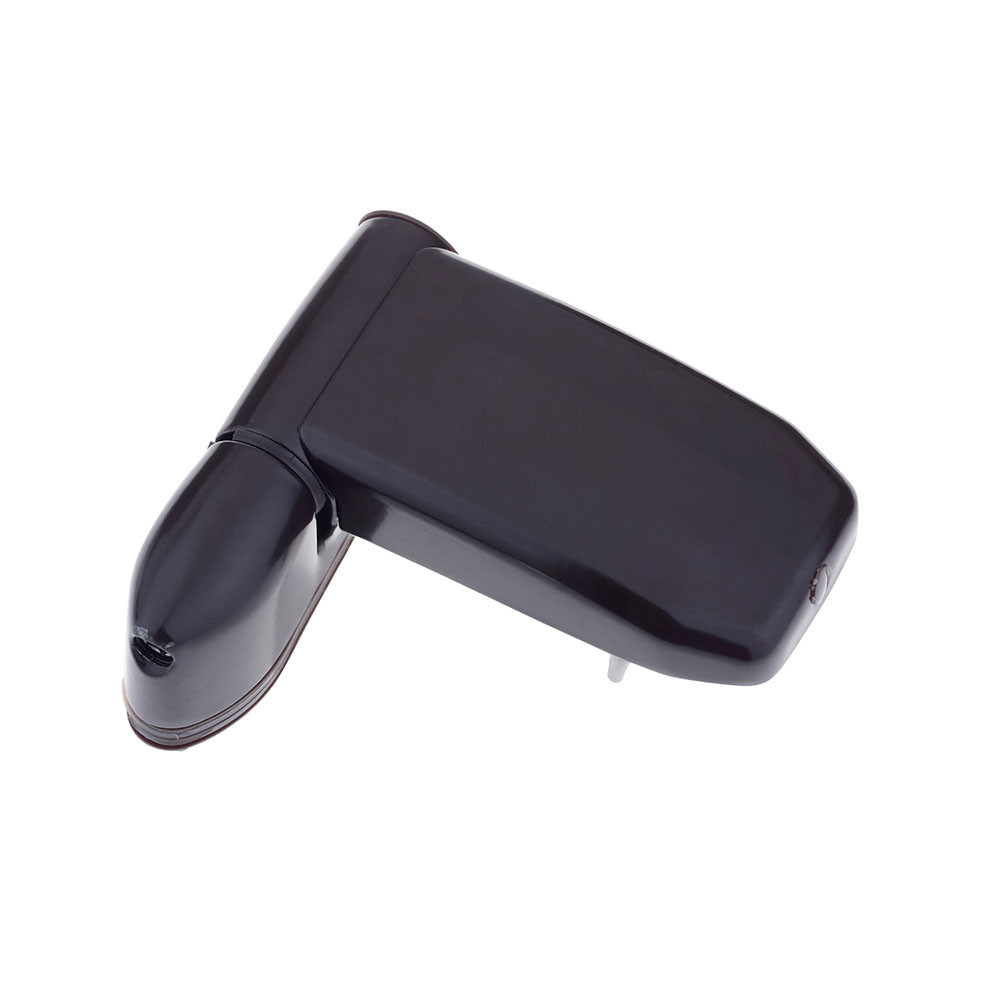

The Nexus 100mm upvc flag hinge which is manufactured by ERA. It is a fully adjustable flag hinge and has been designed to give a modern, state of the art appearance to suit doors with a frame to sash height of 15 -21mm.

Proven to give the highest levels of security, the ERA Nexus hinge is designed with minimal gaps between flag, body and cover to inhibit the use of jemmy type tools - the main hinge pin is designed with a collar in the middle to prevent the pin from being punched out. With stainless steel pins designed to locate into reinforcing this hinge carries a 10 year guarantee as a testament to its quality.

Information

• High-security cover and hinge pin
• Designed to meet the requirements of PAS 024:2012 as part of a compliant door system
• Fixing points locate into reinforcing
• High weight carry capacity
• Minimal gaps between body and leaf
• Endurance cycle tested in excess of 50,000 operations
• Fixings are included
• Can be used as a left or right-handed hinge
• Non-handed - can be used for inward and outward opening doors
• Holds 100kg on 3 hinges

Technical

A full technical diagram is included in the image gallery.
