Description

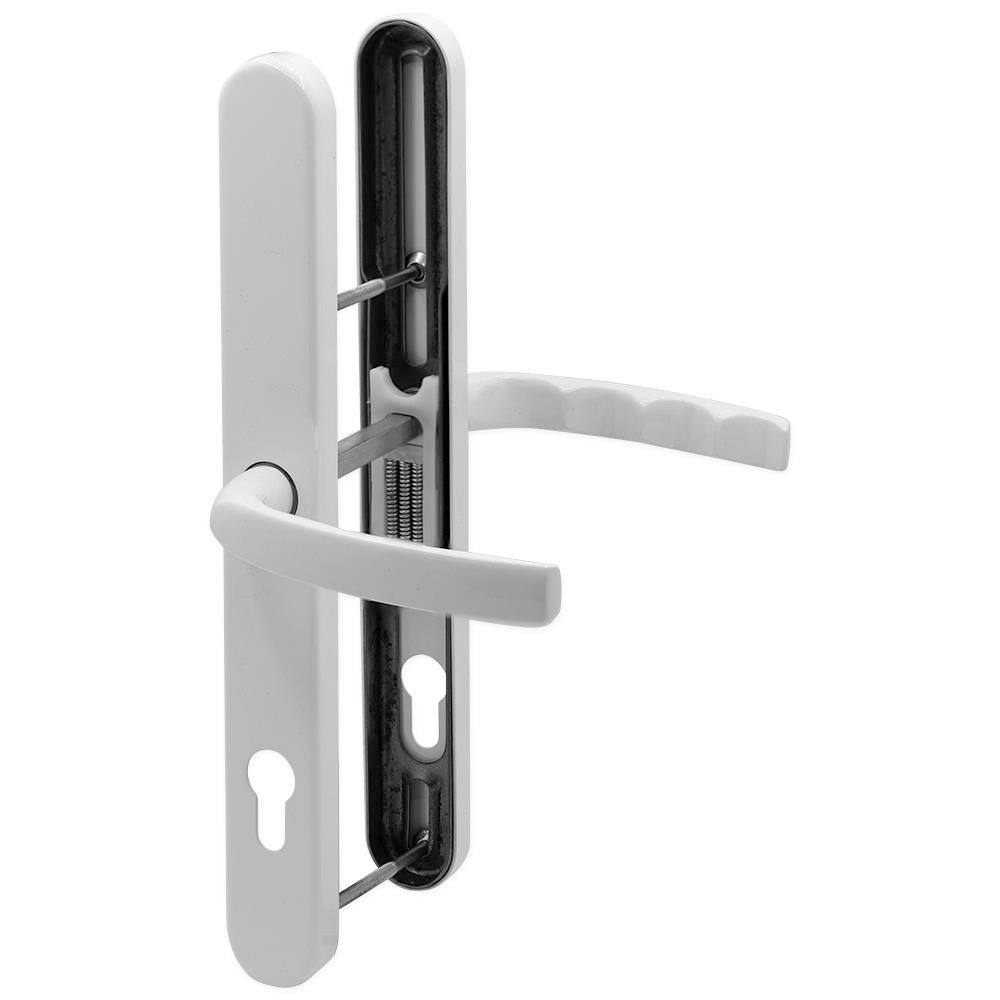

Avocet Roto 92PZ 162mm Fixing Centre Door Handle
Universal Replacement

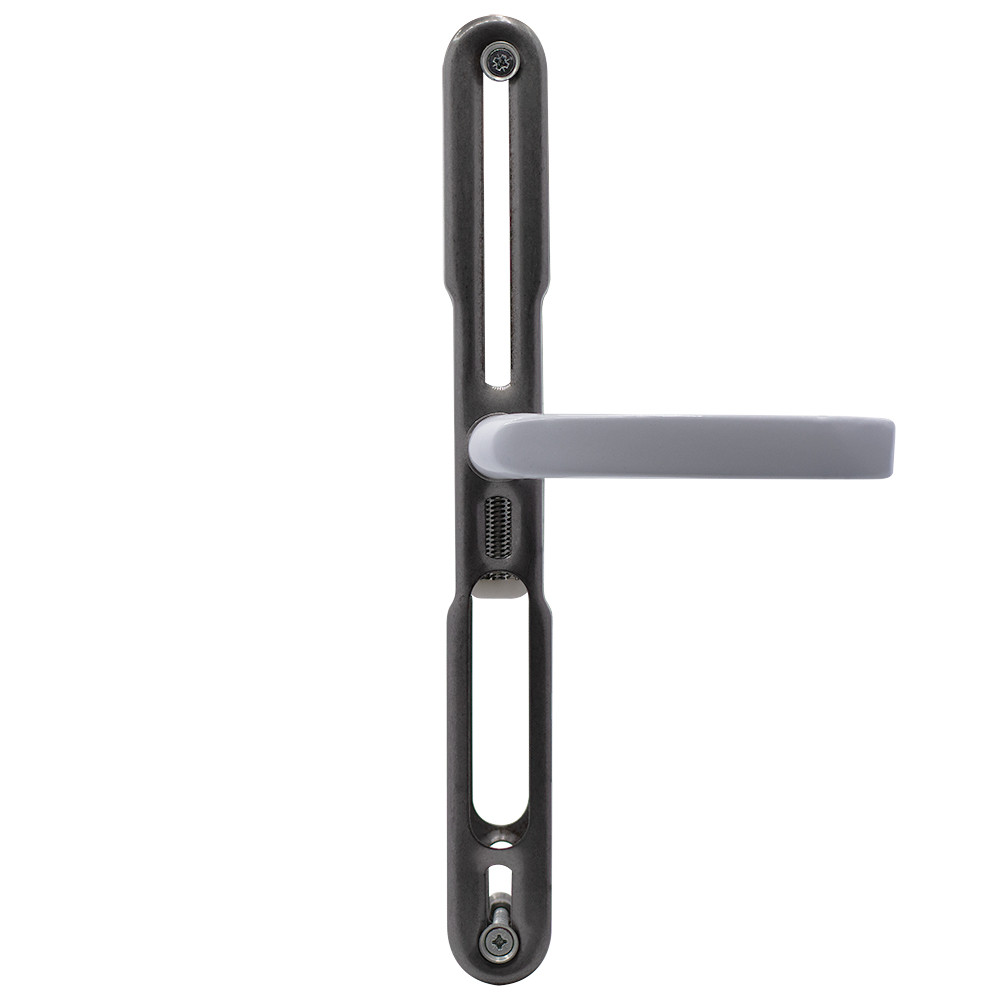

A universal replacement upvc door handle for the now obsolete Avocet Roto door handle with 162mm fixing centres. The Avocet and Roto door handles were discontinued many years ago and no longer available. This door handle is the best option for replacing the aforementioned handles. It has a unique fixing design which allows you to move the fixings on this door handle to match perfectly with your existing handle. This allows you to quickly and easily replace your Avocet Roto or other discontinued upvc door handles without needing to drill new holes or make any adjustments do your door whatsoever.To install the handle just put the fixings through the handle backplate, lining them up with your current fixing holes in you door. Fix the two sides together using the included security bolt ends. Once the door handle base has been fixed to the door using your existing screw positions you can then attach the included cover plate. Simply feed the handle lever through the lever hole on the cover plate and click the cover plate into position.
Information
- No need to drill holes
- Perfect replacement for Avocet Roto door handle with 162mm fixing centres
- Replaces all 92PZ door handles
- Easy and fast to install
- Includes fixings and spindle
- Sprung handle
Technical

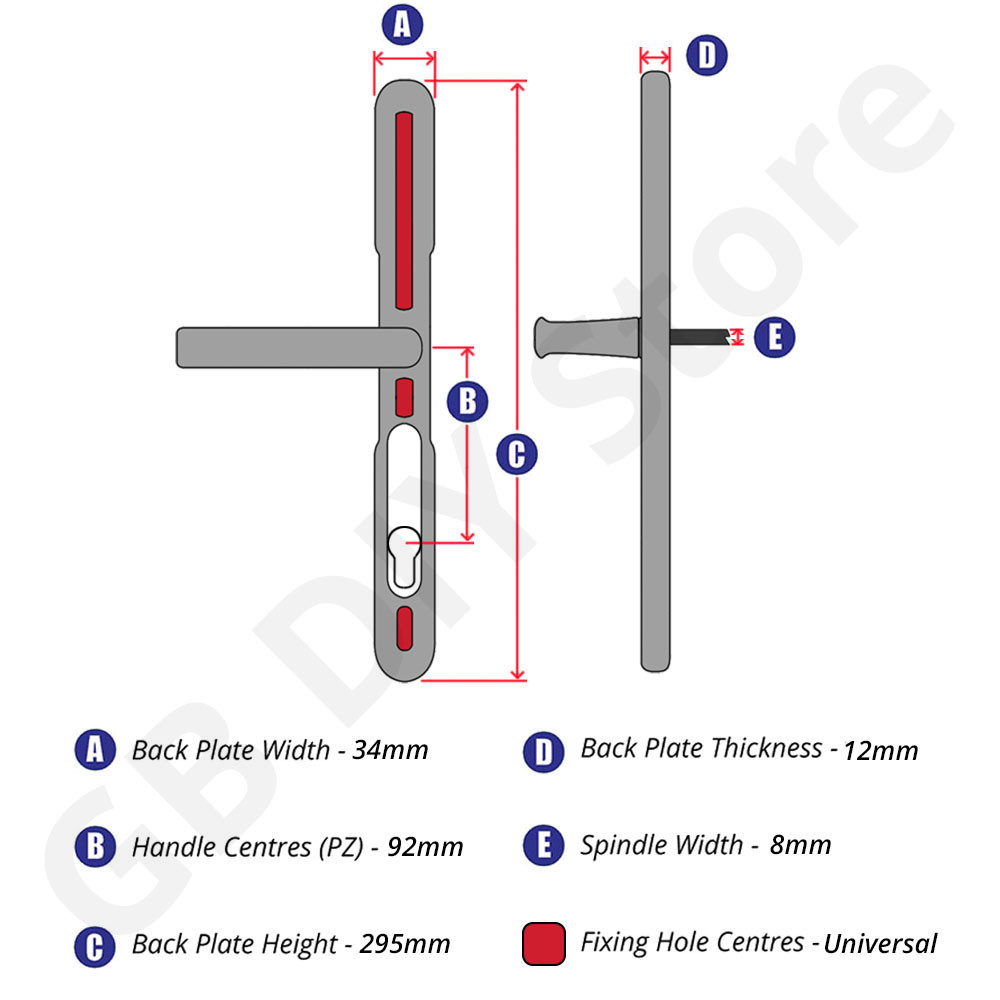

A full technical diagram is included in the image gallery.
Handle Measuring Guide
Measurement 1There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.
Measurement 2
The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram. On this door handle the screw positions are completely universal so you do not need to measure you existing handle. This door handle will fit any 92PZ door handle regardless of the fixing positions.
