UPVC Door Handle Hoppe Ferco 70mm 70PZ 200mm Fixings Double Glazing Pair Set

£19.90

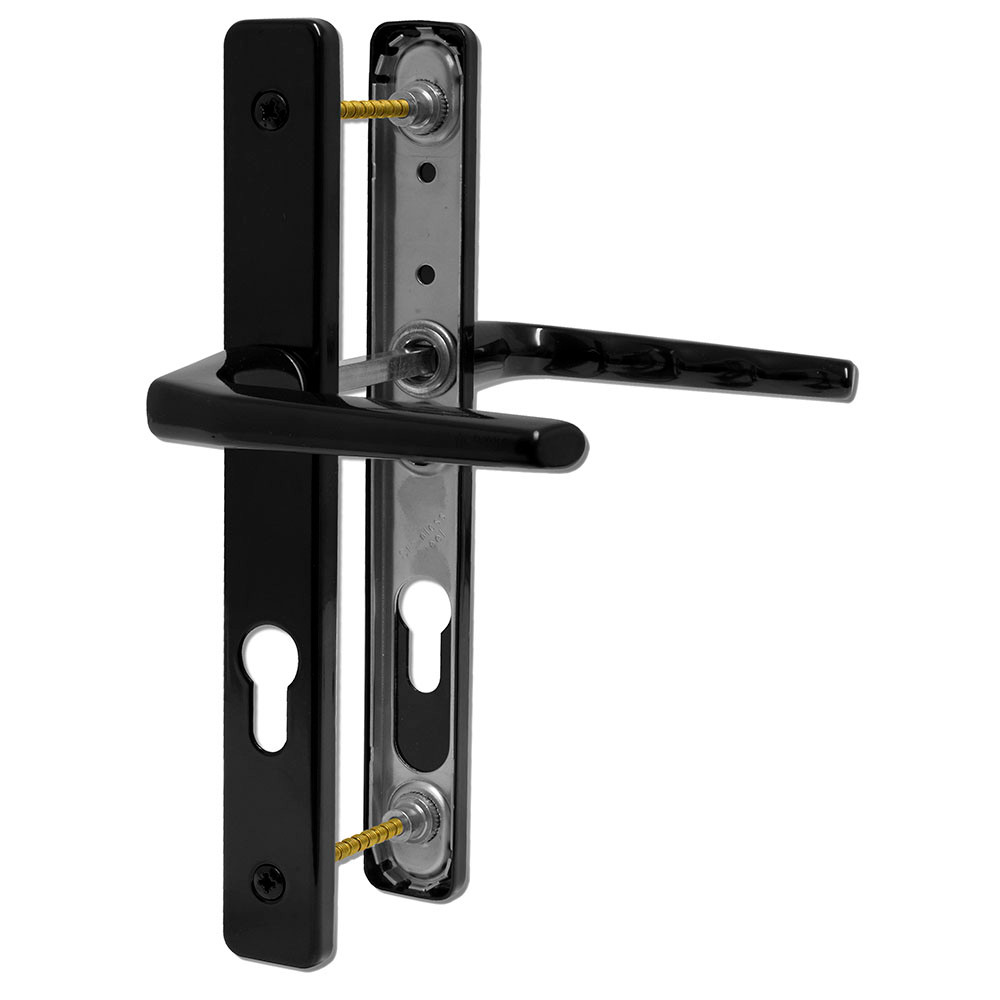

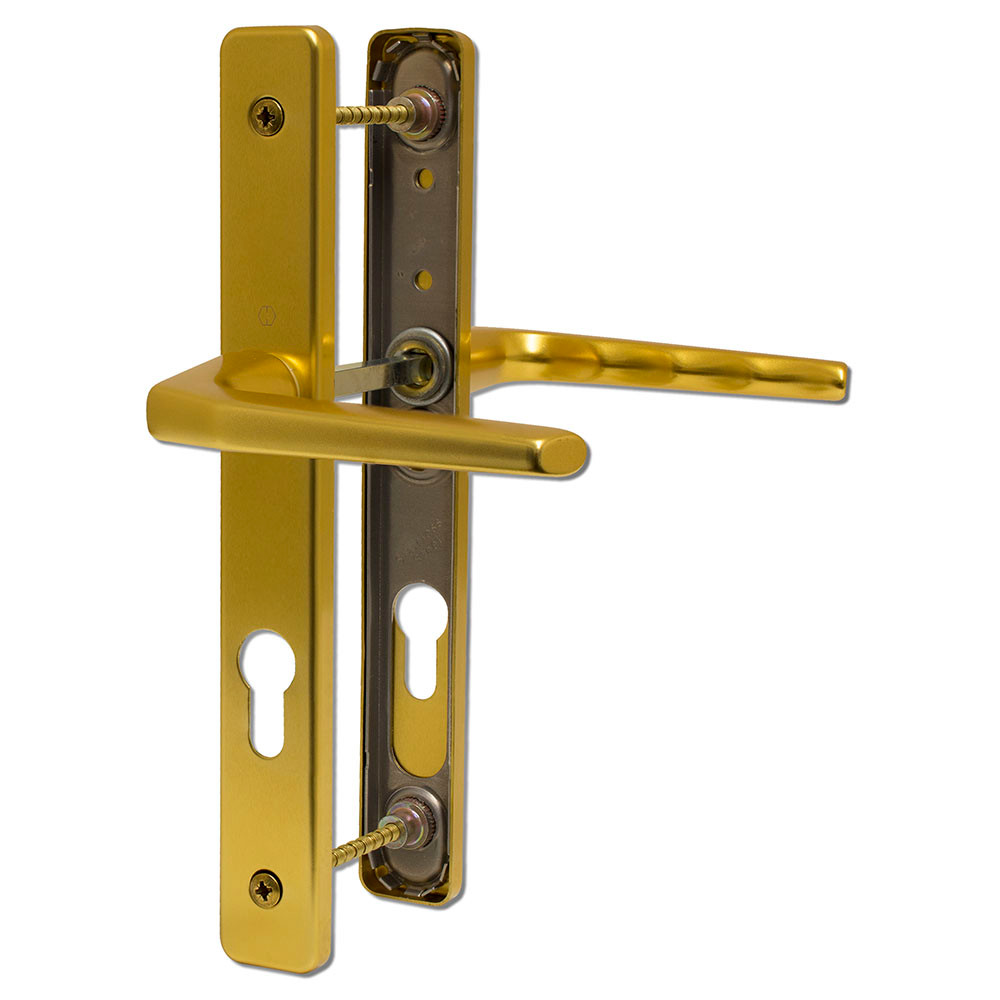

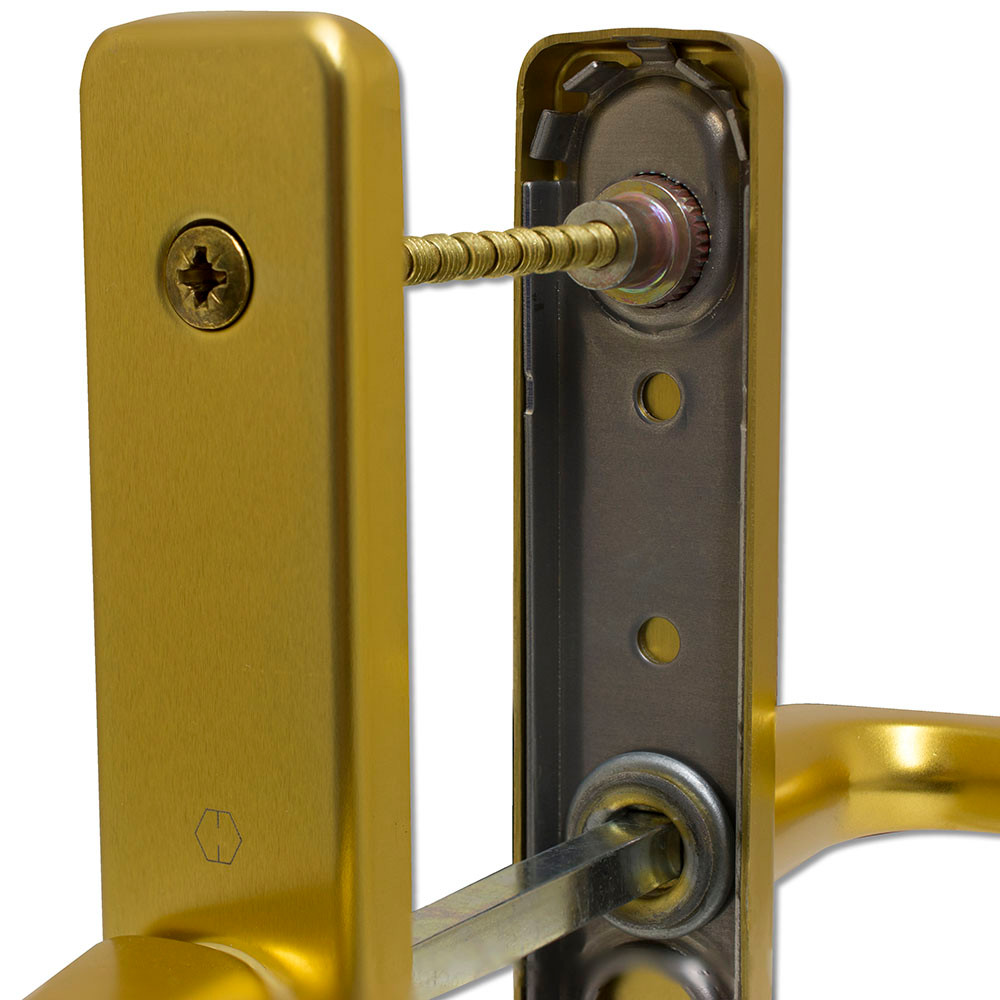

Hoppe Ferco 70PZ 200mm Fixings Door Handle


This door handle is manufactured by Hoppe, an industry leader in door hardware, so you can be guaranteed of its high quality and durability. This handle is designed to fit on to doors with a 70mm PZ (centre of key hole to spindle hole) and 200mm fixing centres.


Specifications

  • 70mm PZ from centre of key hole to centre of spindle hole
  • 200mm Fixing Centres
  • Supplied as a pair complete with spindle and screws
  • Spindle Size: 7mm
  • Back plate length: 245mm
  • Fully reversible to fit both left or right handed doors.



Technical

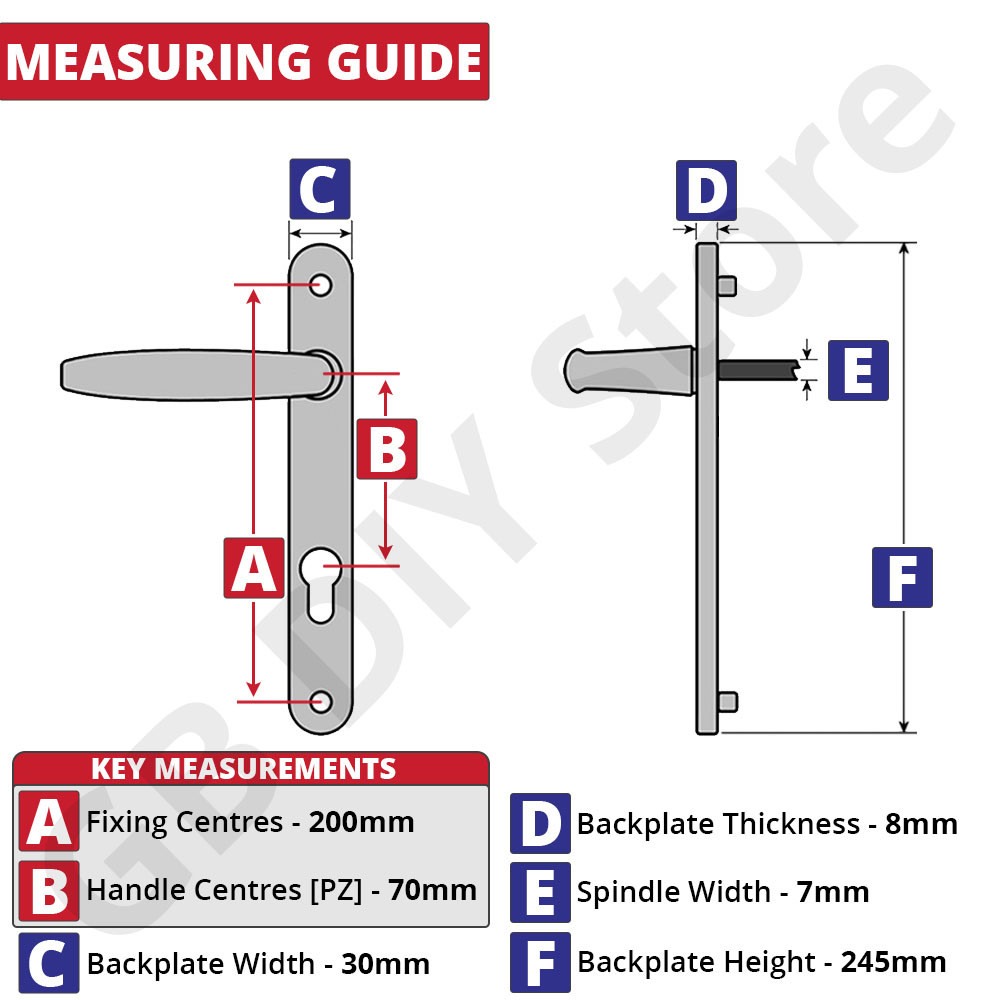

Handle Measuring Guide
Measurement 1
There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.

Measurement 2
The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram.

If the above two measurements match up then the door handle will fit and operate perfectly. All other measurements on the door handle are mainly aethetics and won't affect fitting or operation if they're different.
