UPVC Door Handle Avocet Pioneer Sprung 92mm PZ Double Glazing Pair Set Patio PVC

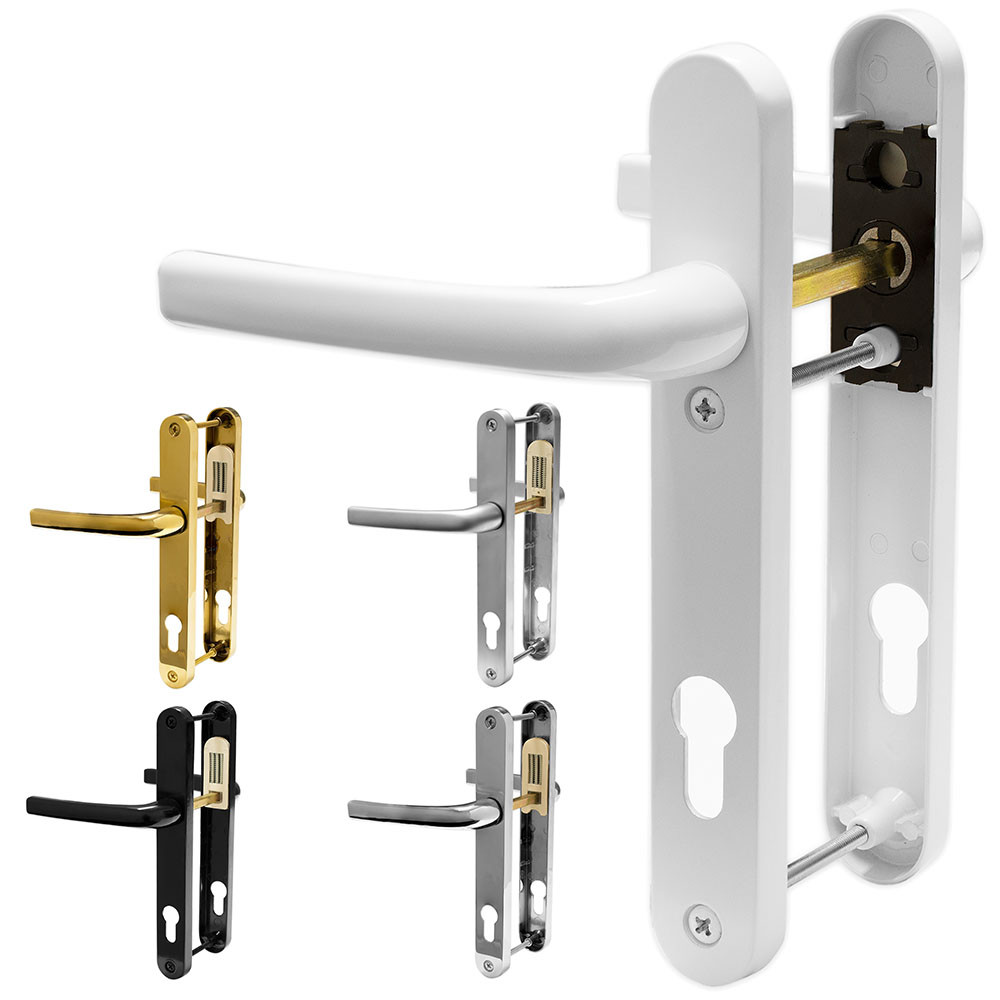

Avocet Pioneer Sprung Door Handle Pair

The Avocet Pioneer sprung door handle is fully reversible. The handle has a simple and contemporary design with some sculpted detail, without being too elaborate or fussy. The back of the lever grip is sculptured to fit your hand very nicely and allows for a comfortable and ergonomic operation.

The handle levers are sprung,
 solving the problem of a sagging door handle not returning to the horizontal position when not in use.

Features & Info

  • Universal Handles - Designed to work for both left & right hand
  • Sprung Lever - Solves the problem of a saggy handle
  • 92mm Centres - Common size for most door handles (See measuring guide)
  • Screw Hole Centres - 122mm or 215mm screw hole centres
  • Available Finishes - White, Chrome, Gold, Satin Silver and Black

Size Information & Measuring Guide

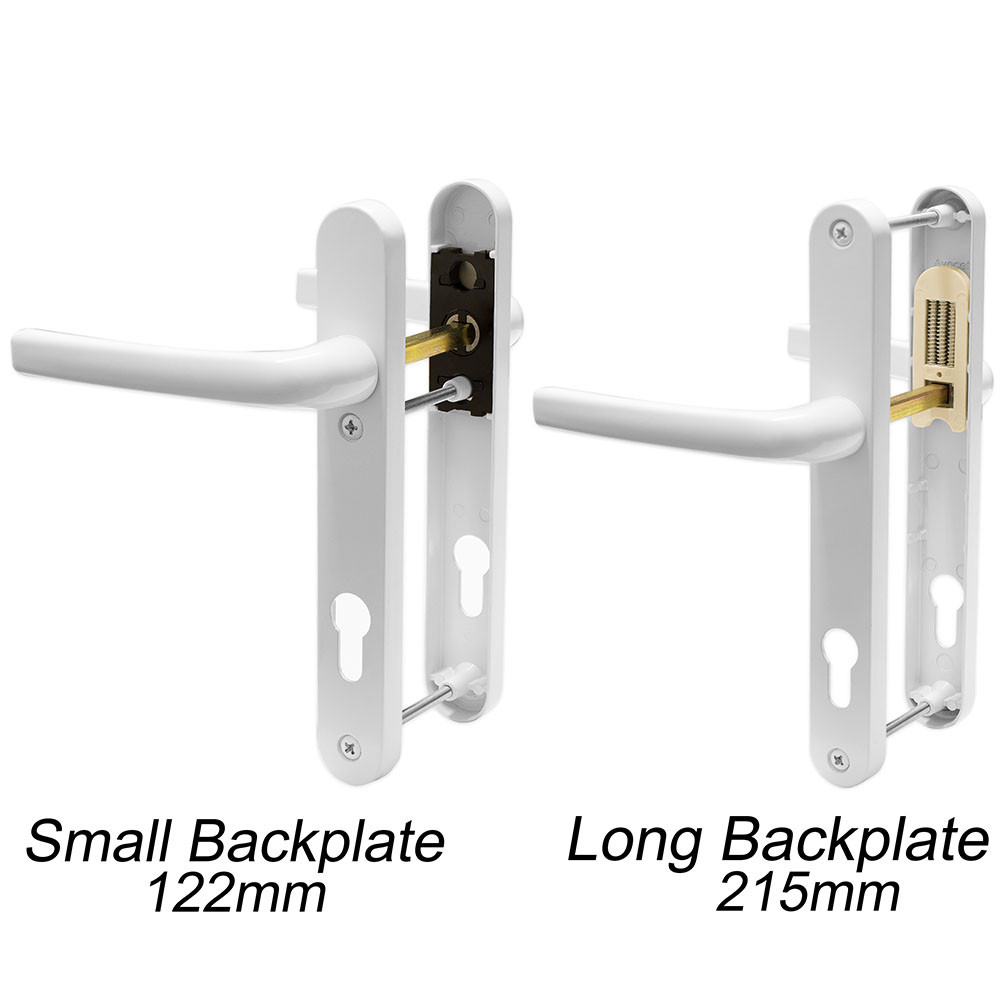

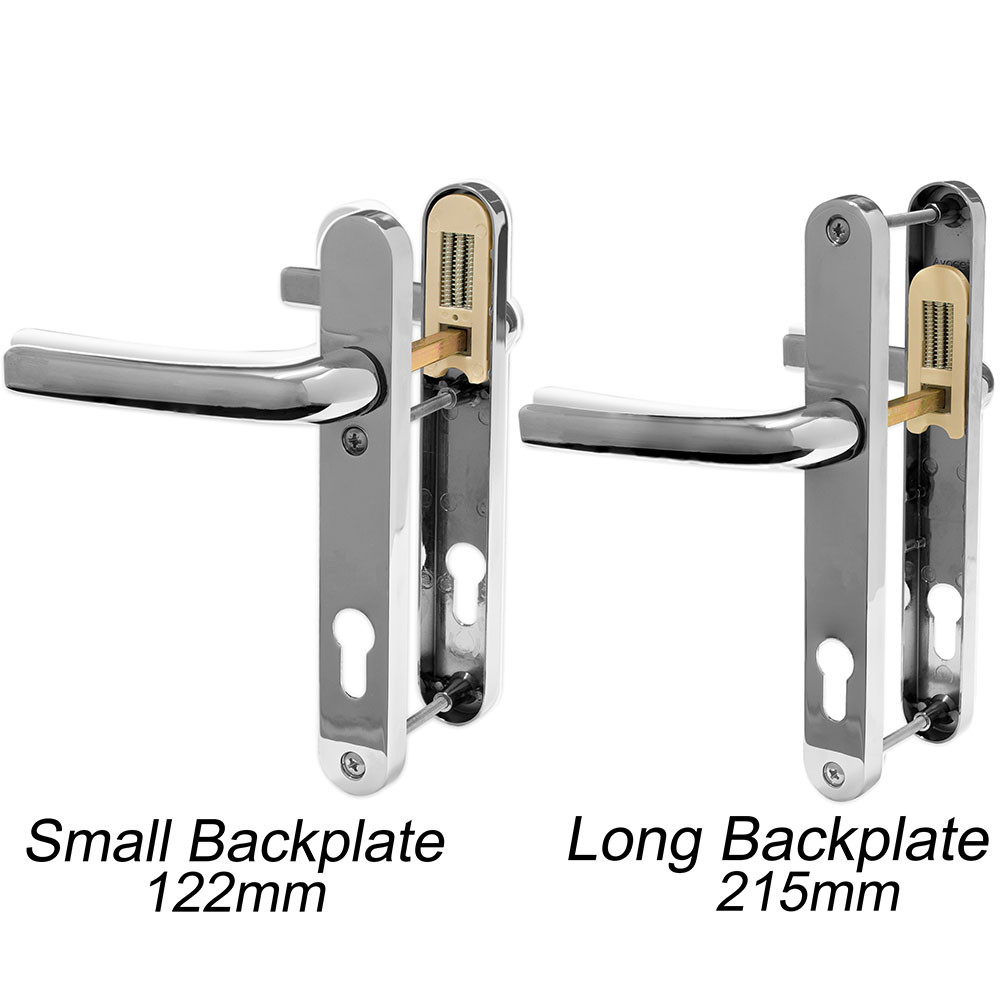

There are 2 different sizes of this handle. The only thing that changes is the screw hole centres to suit different doors. Please take a look at the diagrams to see which handle is going to fit your door.

Long Fixing Centres 215mm

Short Fixing Centres 122mm

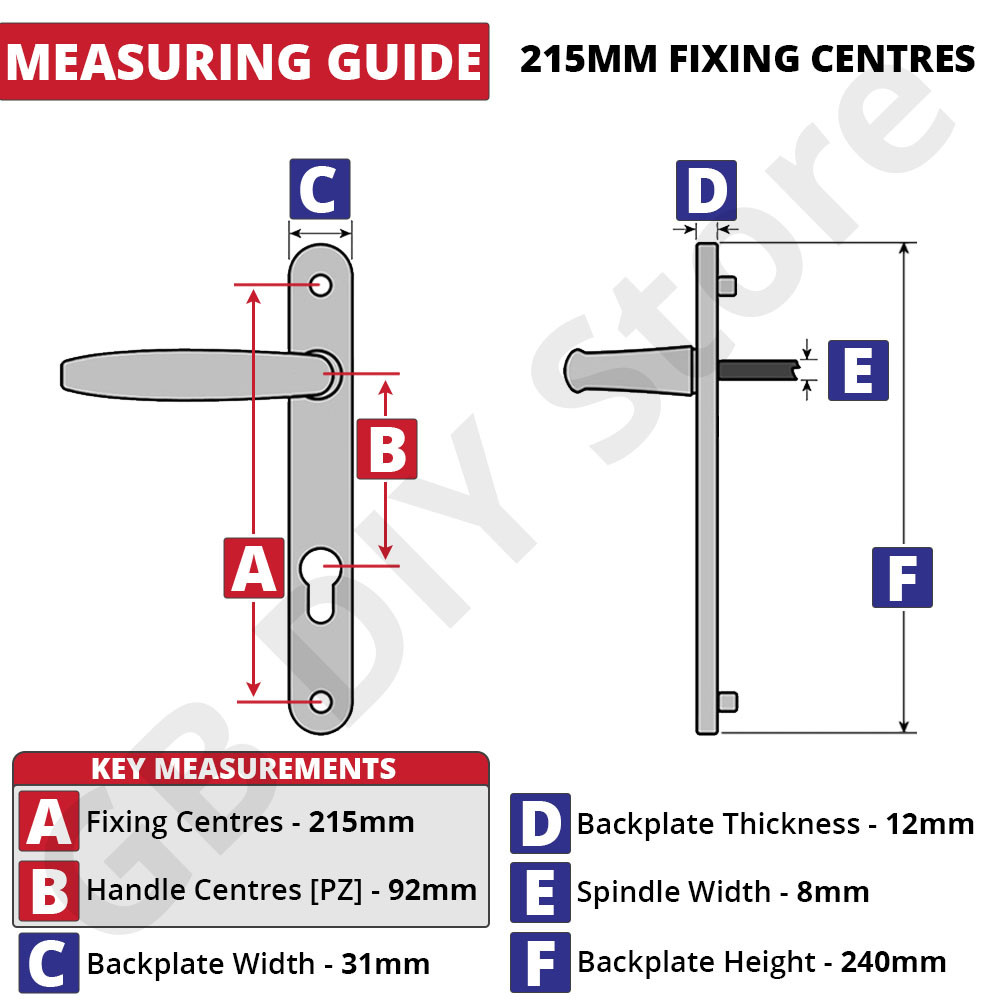

Handle Measuring Guide
Measurement 1
There are only two measurements which are required to ensure full working operation of your new uPVC door handle. The first one being what is known as the PZ measurement. This measurement is the distance from the centre of the key hole the to centre of the handle lever or spindle hole. This is measurement B on the technical diagram.

Measurement 2
The second measurement is the distance between the two fixing points which are the screw holes on the uPVC door handles backplate. This is measurement F on the technical diagram.

If the above two measurements match up then the door handle will fit and operate perfectly. All other measurements on the door handle are mainly aesthetics and won't affect fitting or operation if they're different.
